Product Description

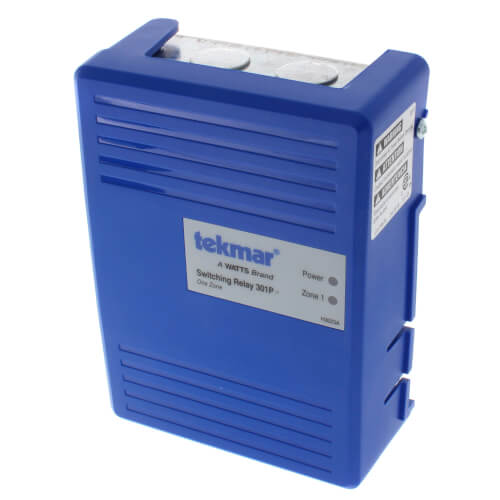

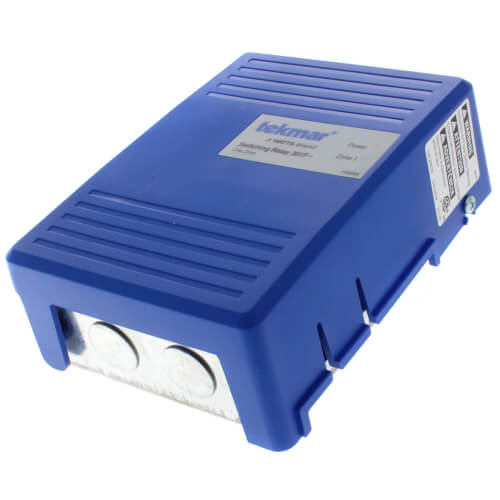

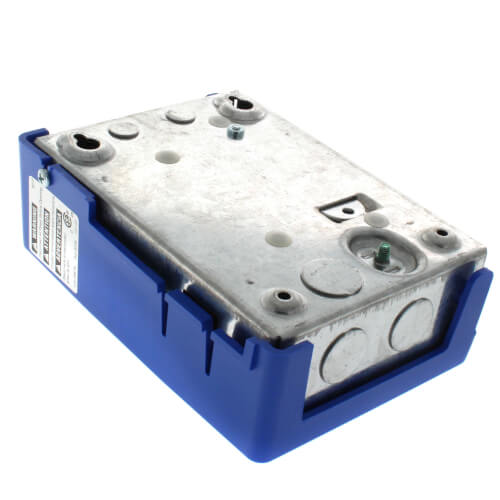

The Tekmar 301P Switching Relay is designed to connect to one thermostat. This unit operates a circulator and a boiler, providing effective heating for hydronic heating systems. The relay offers optional exercising to prevent circulator seizure and optional post purge operation for maximum energy savings.
- Single Relay Switching: Controls one pump for hydronic heating systems.
- Temperature Control: Ensures efficient operation with precise temperature management.
- Easy Installation: Designed for quick setup, minimizing downtime.
Product Highlights
This relay is suitable for various heating applications, including hydronic systems and geothermal setups.
Product Information
Standard Information
-
Manufacturer: Tekmar
-
MPN: 301P
Technical Specifications
-
Item Number: 301P
-
Dimensions: Eight inches by five inches by three inches
-
Control: Microprocessor control
-
Power Supply: One hundred fifteen volts AC
-
Weight: Two pounds, five ounces
-
Operating Temperature: Up to fifty degrees Celsius
-
Current Rating: Five amps
-
Specifications Met: CSA, NEMA
