Tekmar 156 Difference Setpoint Control 24V On/Off with Microprocessor Control

Product Description

The Tekmar 156 Difference Setpoint Control is engineered to manage heat transfer in systems using solar collectors or wood boilers. This 24V control automatically operates an on/off pump based on the temperature differential, ensuring efficient heat management.

• Microprocessor controlled for precise operation
• Designed for indoor use with a temperature range from -76 degrees Fahrenheit to 284 degrees Fahrenheit

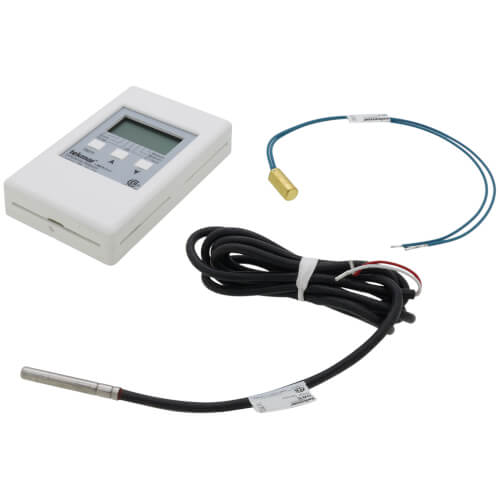

• Equipped with NTC thermistor sensors for accurate temperature readings

Product Highlights

Featuring a robust white PVC enclosure and an intuitive user interface, this control unit is ideal for maintaining optimal heating within tanks. It supports a variety of applications including alternative energy sources.

Product Information

Standard Information

• Brand: Tekmar
• MPN: 156

Technical Specifications

• Power Supply: 24V DC/AC ±10%
• Relay: 240V AC, 10A, 1/3 hp
• Enclosure Type: White PVC, Type C
• Dimensions: 4-3/4 inches H x 2-7/8 inches W x 7/8 inches D
• Approvals: CSA certified, UL 873 compliant
• Ambient Conditions: Indoor use, -20 to 120 degrees Fahrenheit, <90% RH non-condensing
