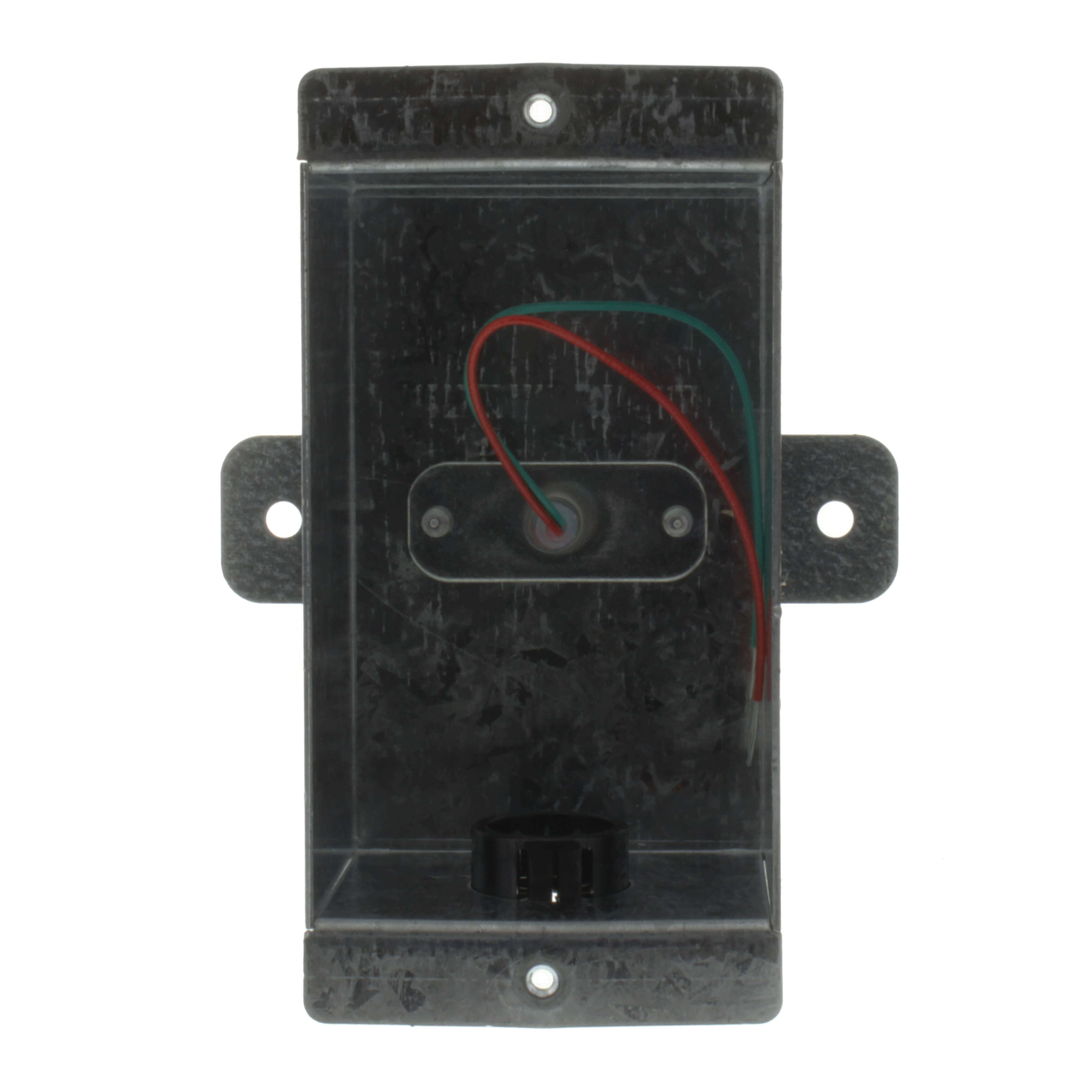

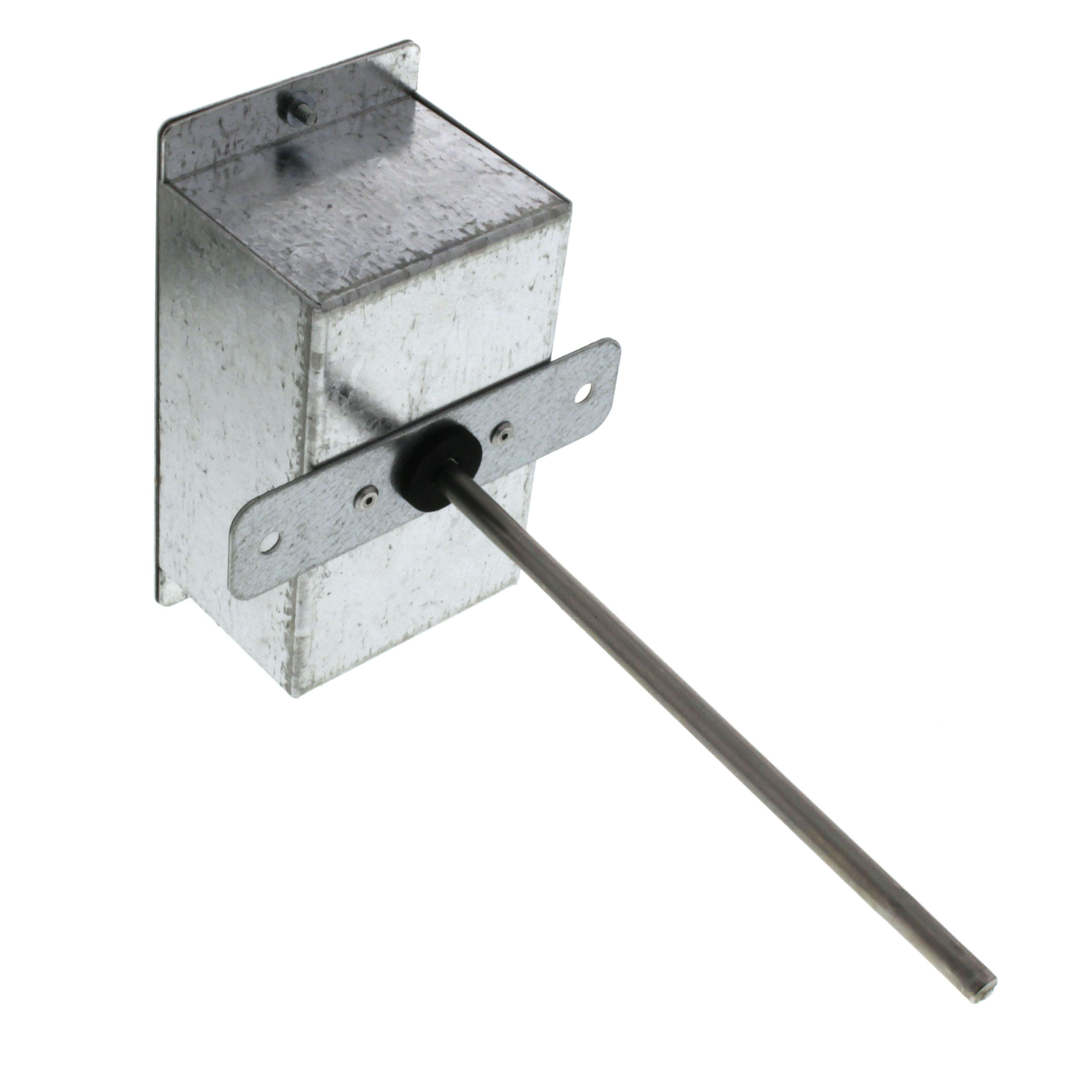

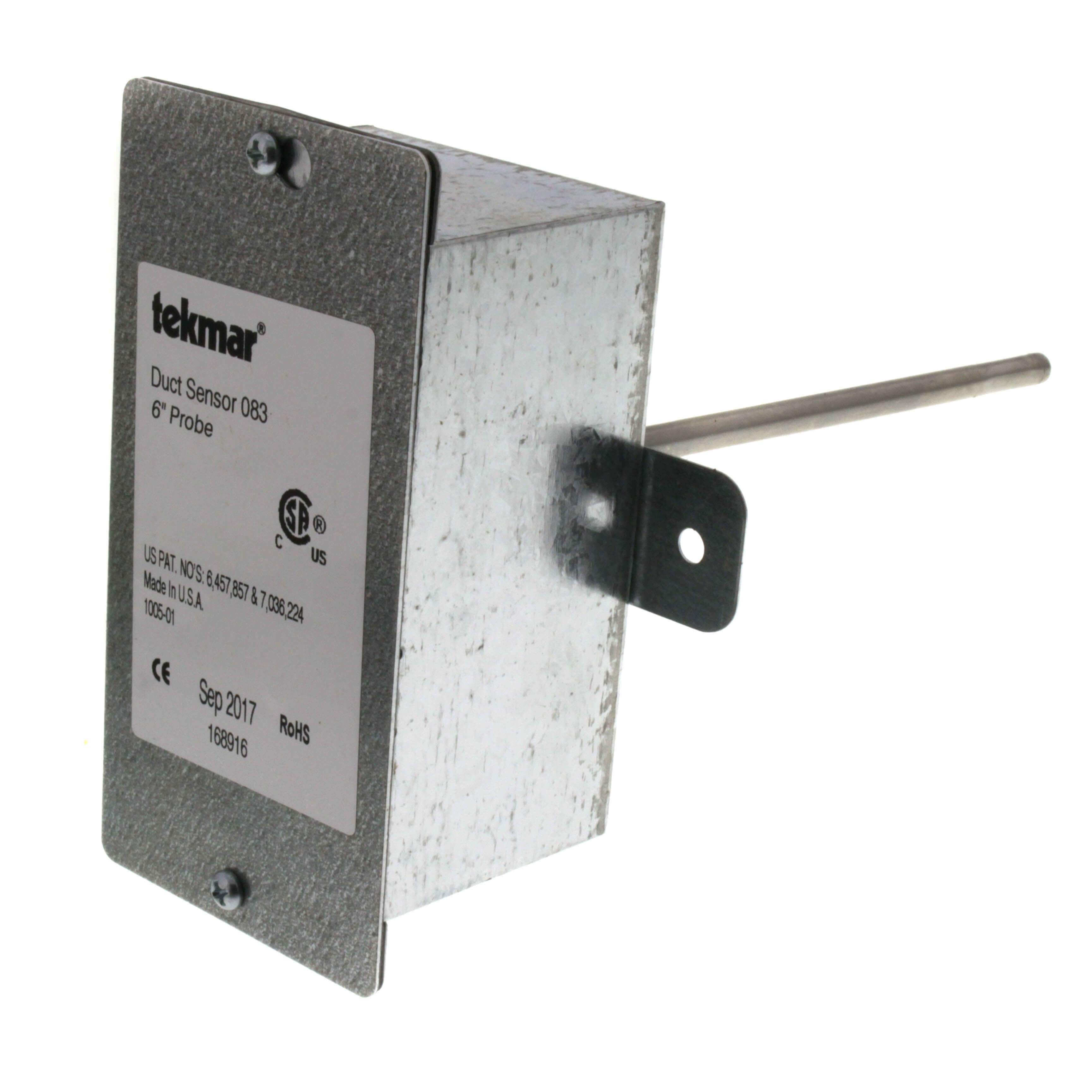

The TEKMAR 083 Duct Sensor is a 10 kΩ temperature sensor designed to measure the average temperature of the air stream in a heating, cooling, or ventilation duct. It has a 6" (150 mm) long probe connected to a 2" x 4" electrical box for easy wiring. Designed for easy duct mounting.
10 kΩ temperature sensor
Designed to measure the average temperature of the air stream in a heating, cooling, or ventilation duct
6" (150 mm) long probe connected to a 2" x 4" electrical box for easy wiring
Product Highlights
The Duct Sensor 083 features a corrosion-resistant stainless steel probe and thermistor accuracy of +/-0.2°C. It is CSA and C US Approved for use in USA and Canada.
Product Information
Standard Information
Brand: TEKMAR
Manufacturer Part Number: 083
Country of Origin: China
Technical Specifications
Type
Duct Sensor
Power Supply
Wired to Control
Enclosure Type
NEMA-1
Width (Inches)
4"
Height (Inches)
8"
Length (Inches)
5"
Temperature Range (F)
-40°F to 250°F
Country of Origin (subject to change) [Specifications]
China
Accessory Type
Sensors
Agency Approvals
CSA C US
Dimensions
4" W x 8" H x 5" L (100 mm x 203 mm x 127 mm)
Enclosure Material
IP30, 18 Gauge Galvanized Steel
Enclosure NEMA Rating
NEMA 1
Markets
Commercial Buildings with BAS, Multifamily Homes, Single-Family Homes, Small Commercial Buildings
Operating Range
-40 to 250 degrees F (-40 to 121 degrees C)
Sensor
NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892
Sensor Material
1/4 IN (6.33 mm) O.D., 0.020 IN (.5 mm) Wall, 6" (150 mm) 304 Stainless Steel
