Tekmar 004 Relay 120V Ac Coil

Product Description

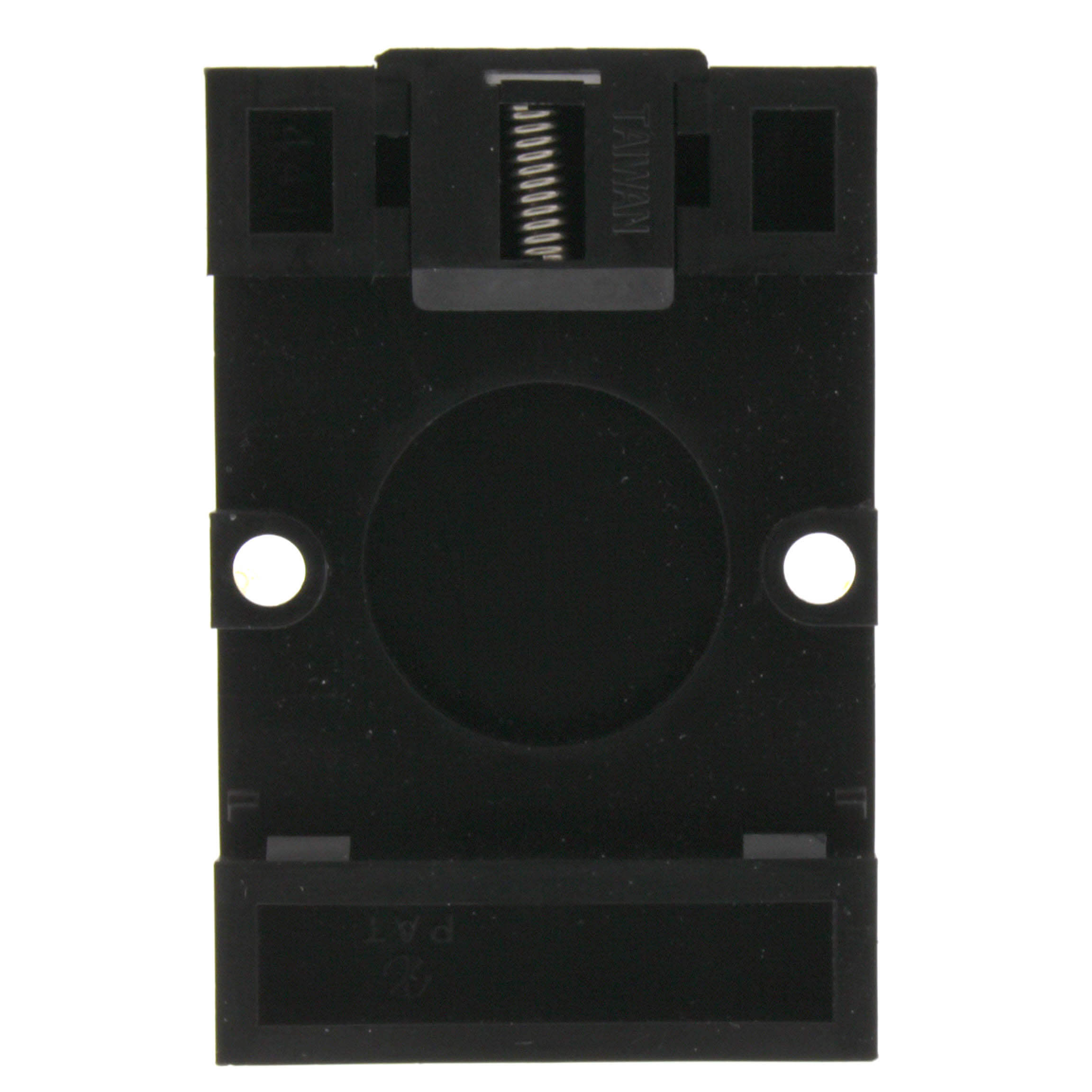

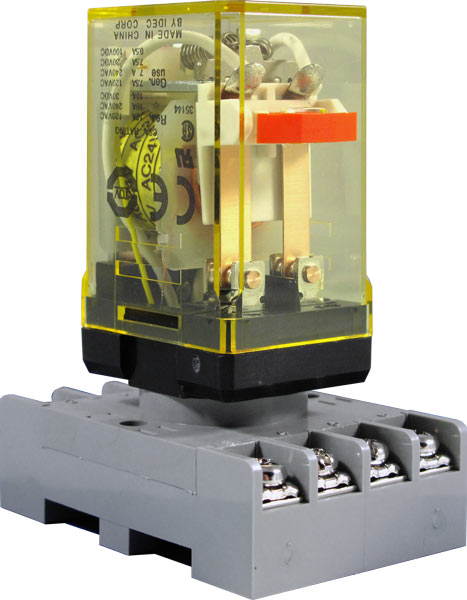

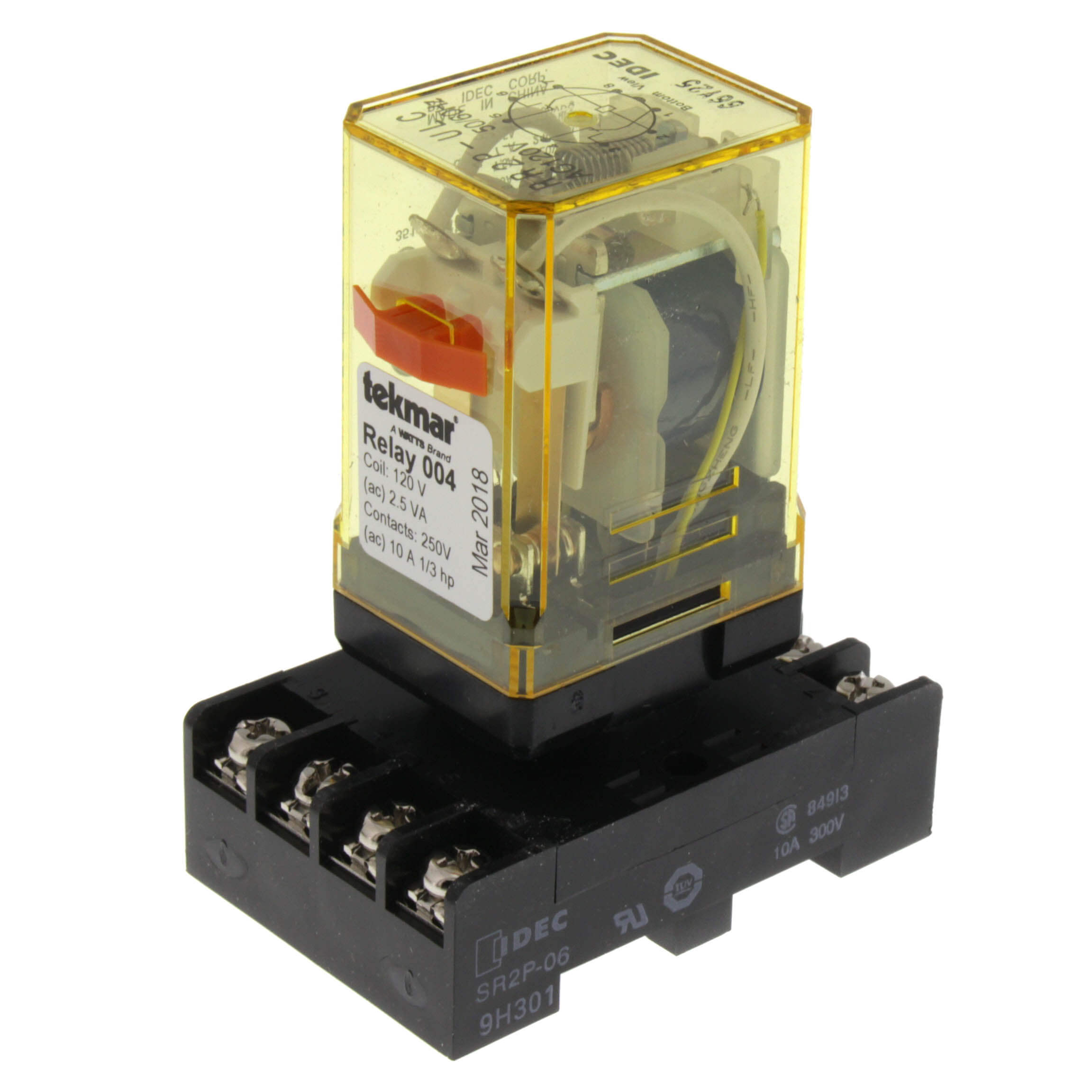

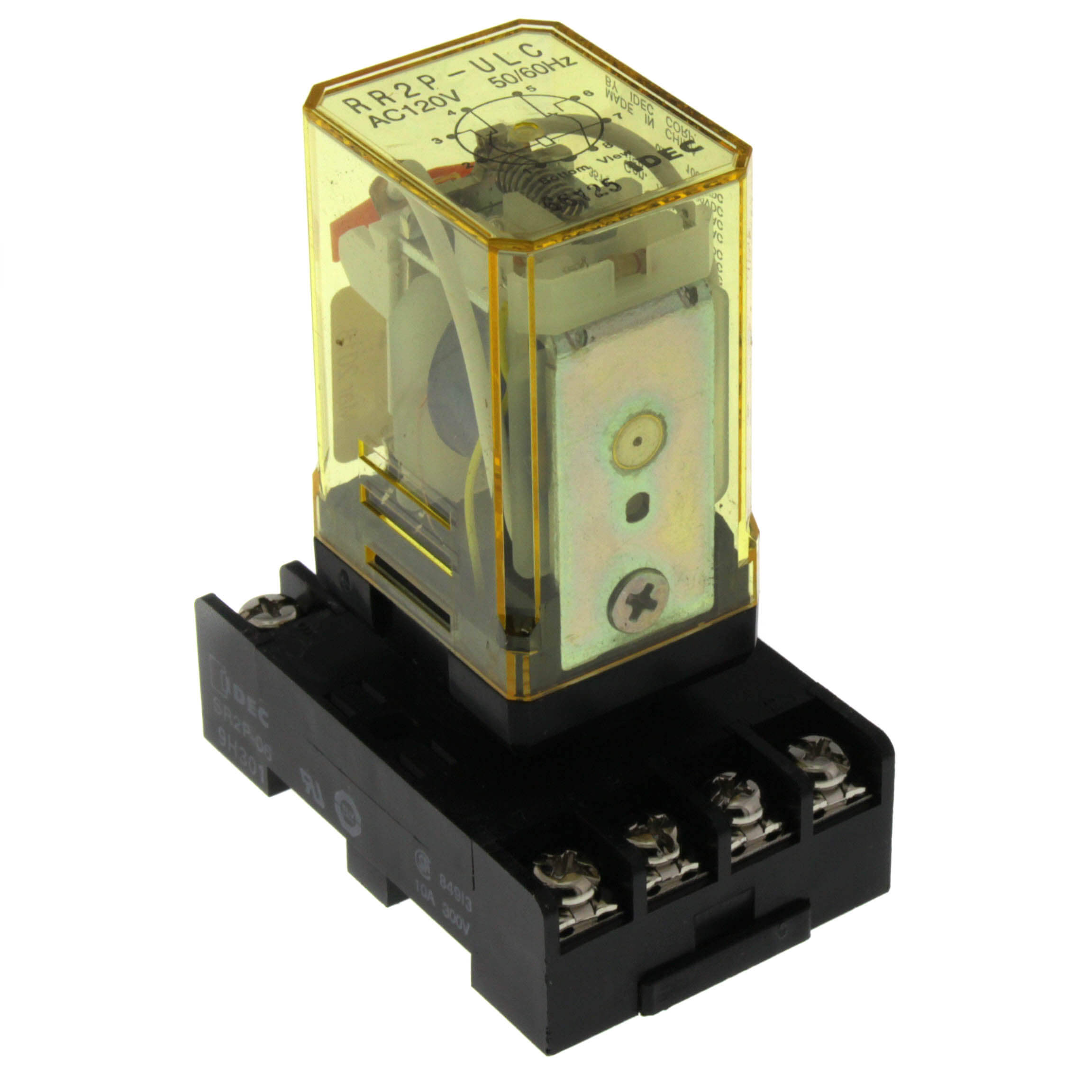

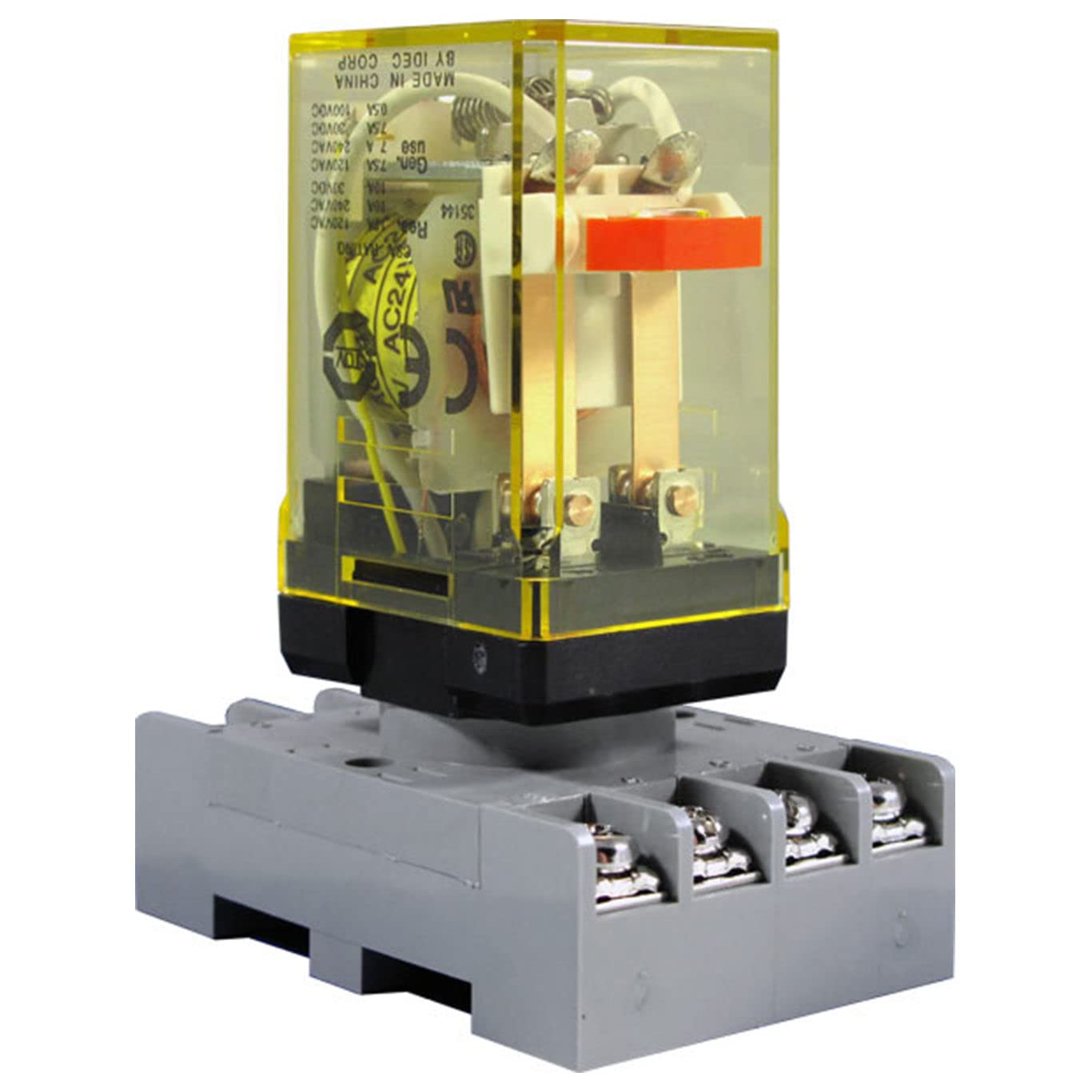

The TEKMAR 004 Relay is a 120 V (ac) coil DPDT (double pole double throw) relay used to isolate electrical loads and allow higher current ratings than Tekmar controls' onboard relays. It can double a single output's capability or allow a pump exceeding the control's specified relay rating. The relay has a 120 V (ac) coil that closes 2 normally open contacts and opens 2 normally closed contacts when energized.

• Double Pole Double Throw relay (DPDT)
• Easy to replace ("ice cube" style - no need to remove wiring)
• Isolate electrical loads

Product Highlights

This relay is designed to isolate electrical loads and allows higher current ratings than on board relays. It features an LED to indicate when energized and a test tab for easy testing and manual override.

Product Information

Standard Information

• Brand: TEKMAR
• Manufacturer Part Number: 004

Technical Specifications

• Power Supply (coil): 120 V (ac) +10%, -20%, 50/60 Hz, 3 VA
• Relay Contacts (max.): 10 A resistive 10 A inductive @ 120 V (ac), 1/3 hp, 10 A resistive 7 A inductive @ 250 V (ac), 10 A resistive 2 A inductive @ 28 V (dc)
• Relay Contacts (min.): 10 mA 1 V (dc)
• Ambient Conditions: Indoor use only, 14 to 104+F (-10 to 40+C), < 85% RH non-condensing
• Approvals: CSA C US, UL listed
• Hertz: 50, 60
• Type: Relay
• Application: Heating
• Power Supply: 120V (ac)
• Accessory Type: Miscellaneous
• Markets: Commercial Buildings with BAS, Multifamily Homes, Single-Family Homes, Small Commercial Buildings
• Coil Power Supply: 120 V (ac) plus 10 percent, -20 percent, 50 Hz 2.7 VA, 60 HZ 2.3 VA
• Contact Relay Maximum: 10 A resistive at 250 V (ac) N.O., N.C., 10 A resistive at 30 V (dc) N.O., N.C., 7 A inductive at 250 V (ac)
• Contact Relay Minimum: 10 mA 1 V (dc)
