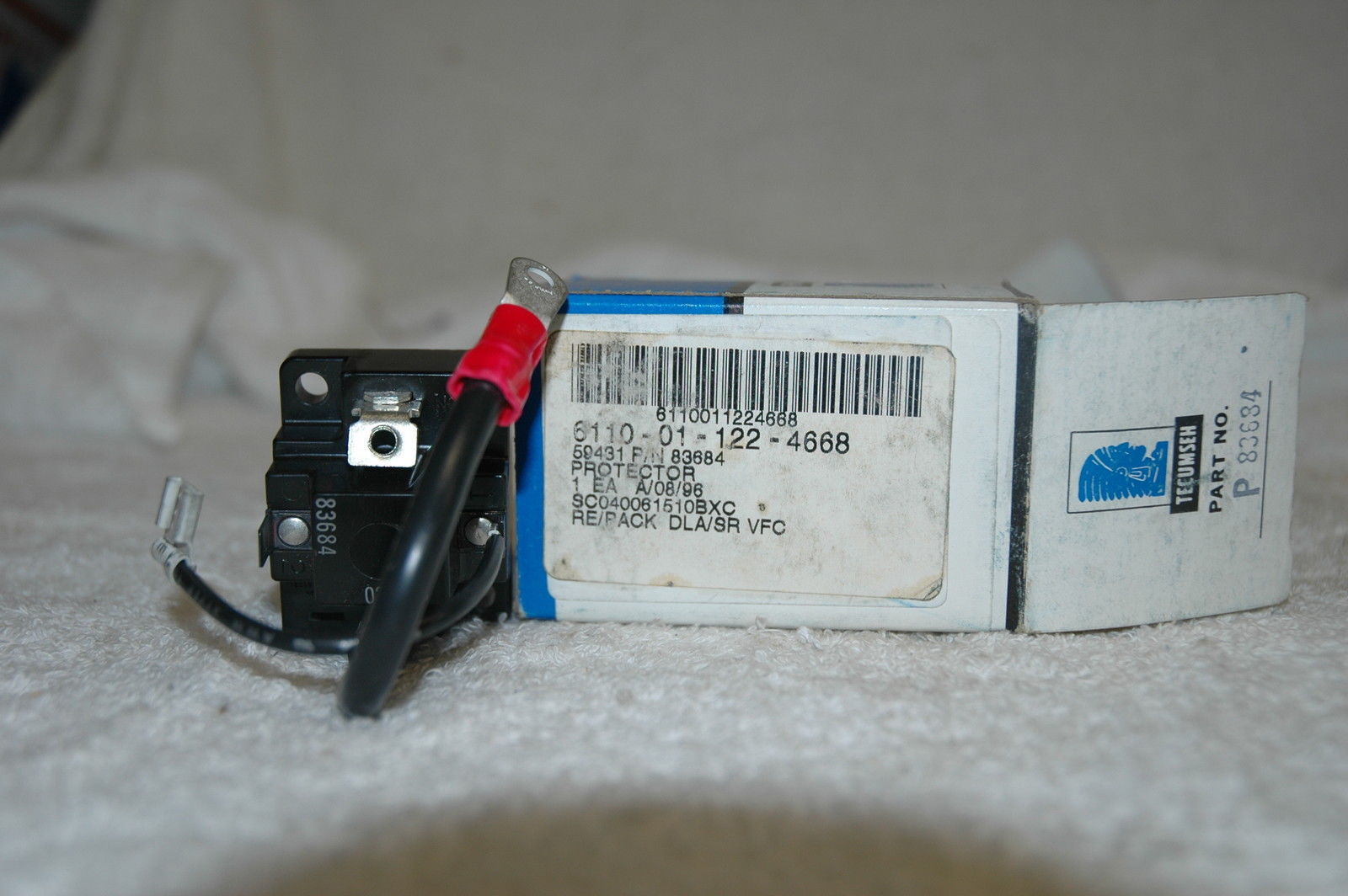

Tecumseh p83684 Compressor Thermal Overload

Product Description

The TECUMSEH p83684 is a compressor thermal overload device designed to protect refrigeration and air conditioning compressors from damage caused by excessive heat and current draw. When the compressor exceeds safe operating temperatures or draws abnormal amperage, the thermal overload interrupts the circuit to prevent motor winding failure. It is a direct-fit replacement component installed by licensed HVAC and refrigeration technicians during routine service or compressor repair work.

The p83684 thermal overload is suited for use in residential and light commercial refrigeration and air conditioning systems that utilize compatible TECUMSEH compressors. Technicians typically encounter this part during compressor diagnostics when testing for open or tripped overloads, or when performing a compressor replacement where the original overload shows signs of failure or heat damage.

Key Features

• Interrupts compressor circuit on overcurrent or overtemperature conditions to protect motor windings
• Direct-fit OEM-style replacement for compatible TECUMSEH compressor applications
• Designed for reliable reset and repeated service life under normal operating cycles
• Compact form factor suited to installation in the compressor terminal compartment

Compatibility

Designed as an OEM-style replacement thermal overload for compatible TECUMSEH refrigeration and air conditioning compressors. Verify fitment against the original compressor model and existing overload part number before installation.

Installation Notes

Installation should be performed by a licensed HVAC or refrigeration technician. Before servicing, disconnect and lock out all electrical power to the unit in accordance with NFPA 70 (NEC) lockout/tagout requirements. The thermal overload mounts directly to the compressor terminal assembly; ensure the replacement device seats fully and makes proper contact before reassembling the terminal cover. Do not bypass or jumper the thermal overload at any time during testing or operation.

Technical Specifications

• Component Type: Compressor Thermal Overload

Standard Information

• Brand: TECUMSEH
• Manufacturer Part Number: p83684
