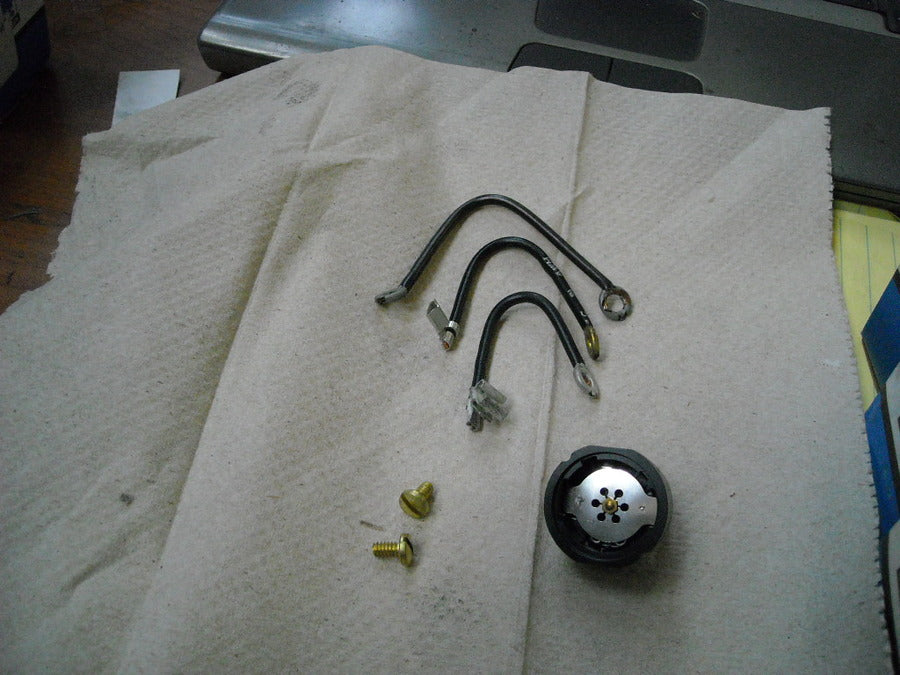

Tecumseh p83506 Compressor Thermal Overload

Product Description

The TECUMSEH p83506 is a compressor thermal overload designed to protect hermetic and semi-hermetic compressors from damage caused by excessive heat and current draw. When internal temperatures or amp loads exceed safe limits, the overload interrupts the circuit and shuts the compressor down before winding failure can occur. This part is a direct OEM-style replacement intended for installation by licensed HVAC-R technicians servicing refrigeration and air conditioning equipment. It is a critical safety component in the compressor electrical circuit.

This thermal overload is used in residential and light commercial refrigeration and air conditioning systems where a TECUMSEH compressor is installed. Typical applications include reach-in coolers, walk-in refrigeration units, condensing units, and split-system air conditioners. The part is installed directly on or within the compressor housing as part of the motor protection circuit, and it must match the compressor model to ensure correct trip characteristics.

Key Features

• Interrupts compressor circuit on overtemperature or overcurrent conditions to prevent motor winding damage
• OEM-style replacement for TECUMSEH compressor applications
• Designed for use in hermetic compressor motor protection circuits
• Compact form factor suited for direct compressor-mounted installation

Compatibility

Designed as an OEM-style replacement thermal overload for TECUMSEH compressors used in refrigeration and air conditioning applications. Verify compressor model and existing overload specifications before ordering to confirm correct trip rating fitment.

Installation Notes

Installation should be performed by a licensed HVAC-R technician. Disconnect and lock out all electrical power to the unit before removing or installing the thermal overload. Confirm the replacement part matches the trip current and temperature rating of the original overload before installation. Follow all applicable NEC guidelines and local codes when servicing compressor electrical components.

Technical Specifications

• Component Type: Compressor Thermal Overload

Standard Information

• Brand: TECUMSEH
• Manufacturer Part Number: p83506
