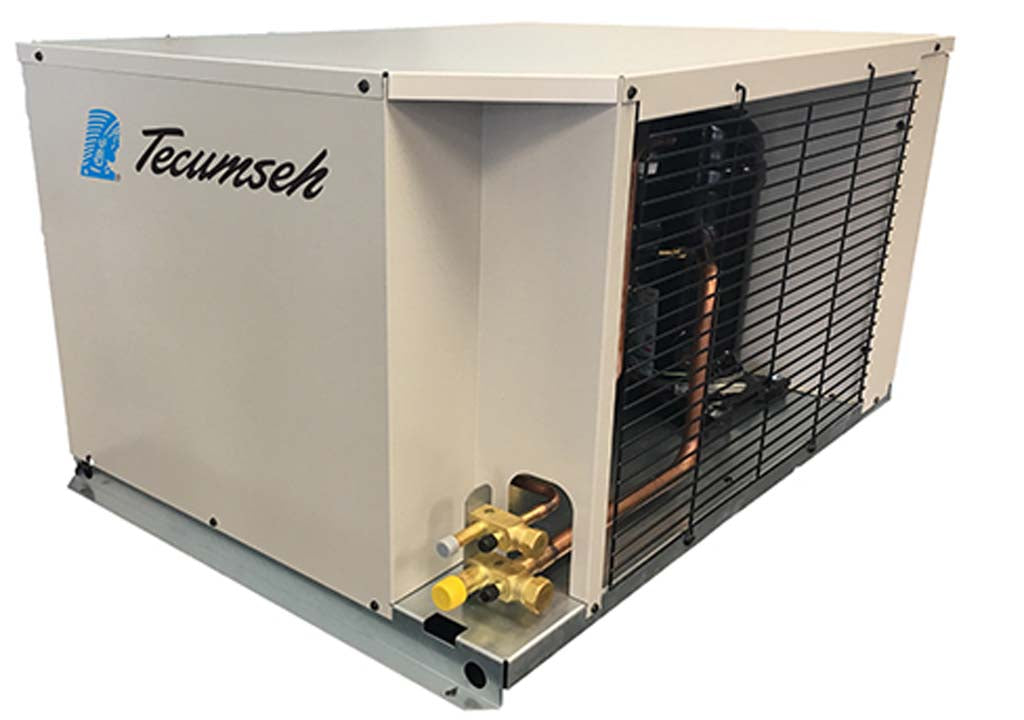

Tecumseh 2JH3001-PF Argus-Large Outdoor Condensing Unit

Product Description

The TECUMSEH 2JH3001-PF Argus-Large outdoor condensing unit features a platinum feature and is designed for CBP - Commercial Back Pressure applications. It uses R-404A/R-448A/R-449A/R-452A refrigerant and operates at 208-230V ~ 60Hz. The unit includes a scroll compressor and a tube-fin coil type. Dimensions are 34.8" height, 33.2" width and 44" length.

• Platinum Feature
• Outdoor Condensing Unit
• Scroll Compressor

Product Highlights

Outdoor condensing unit with scroll compressor, designed for commercial back pressure applications and uses multiple refrigerant types.

Product Information

Standard Information

• Brand: TECUMSEH
• Manufacturer Part Number: 2JH3001-PF

Technical Specifications

• Condensing Unit Type: Outdoor
• Application: CBP - Commercial Back Pressure
• Refrigerant: R-404A/R-448A/R-449A/R-452A
• Voltage/Frequency: 208-230V ~ 60Hz
• Compressor Type: Scroll
• Coil Type: Tube - Fin
• Discharge Line Size: 1/2 in (12.7mm)
• Suction Line Size: 7/8 in (22.2mm)
• Run Capacitor Mfd. Voltage: 60 MFD/370 Volt
• Air Flow: 4300 Cubic Feet per Minute
• Fan Motor Quantity: 1
• Pump Down Capacity: 36.26 Pounds
• Design Pressure Low: 181
• Design Pressure High: 450
• Fan Motor RLA: 2.2
• Max. Fuse Size: 45
• Min. Circuit Ampacity: 28.7
