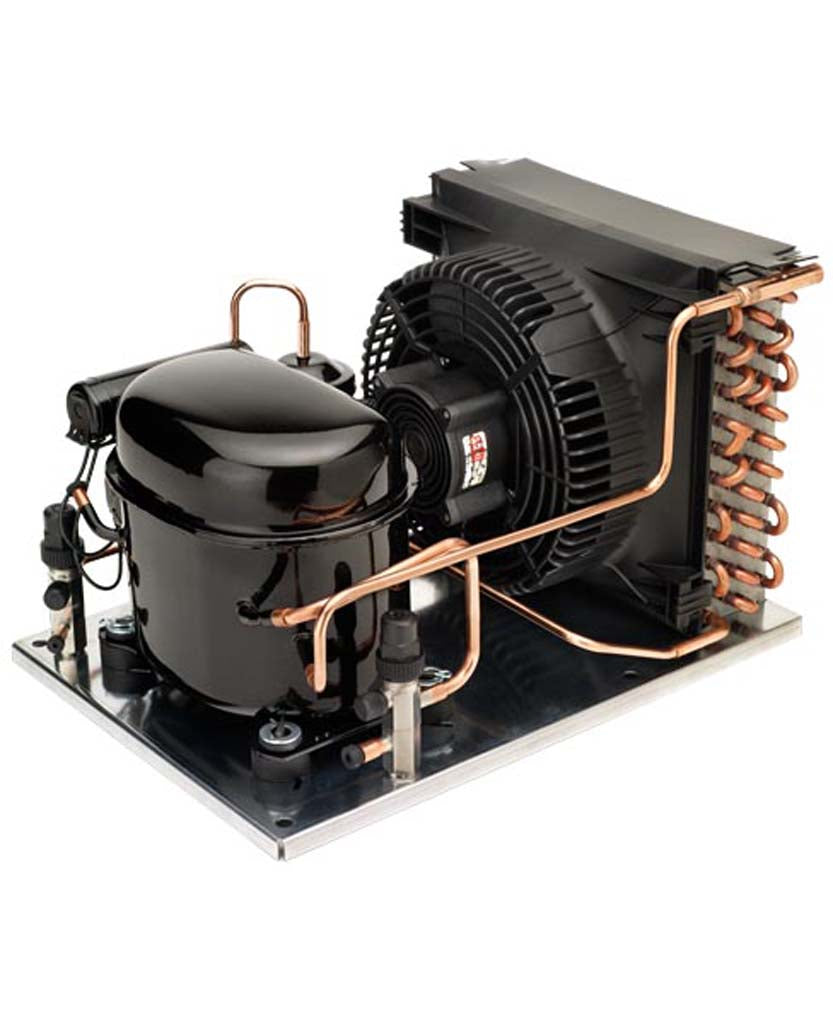

Tecumseh 2G742-59 condensing unit 3/4HP

Product Description

The TECUMSEH 2G742-59 is a 3/4 HP condensing unit designed for medium/high back pressure (MBP/HBP) applications. Operating on 115V, 1 Phase, 60Hz, it utilizes R134a refrigerant and provides a nominal capacity of 5540 BTU/h. This CELSEON series unit, model AJA7455YAADC, is an indoor, air-cooled unit suitable for various refrigeration needs requiring precise temperature control.

• Operates on 115V, 1 Phase, 60Hz power supply.
• Uses R134a refrigerant with a 5540 BTU/h nominal capacity.
• Designed for Medium/High Back Pressure (MBP/HBP) applications.

Product Highlights

This TECUMSEH 2G742-59 condensing unit features a 3/4 HP compressor, R134a refrigerant, and 115V operation for MBP/HBP applications.

Product Information

Standard Information

• Brand: TECUMSEH
• Manufacturer Part Number: 2G742-59

Technical Specifications

• Voltage: 115V 1 Phase 60HZ
• Refrigerant: R134a
• Horsepower: 3/4 HP
• Nominal Capacity: 5540 BTU/h
• Application: MBP/HBP - Medium/High Back Pressure
• Product Type: Condensing Unit
• Series: CELSEON
• Model: AJA7455YAADC
• Coil Type: Tube - Fin
• Compressor Family: AJ
• Compressor Technology: Reciprocating
• Condensing Unit Type: Indoor - Air Cooled
• Agency Approval: CURUSREC
• Air Flow: 230 Cubic Feet per Minute
• Discharge Line Size: 3/8 in (9.52mm)
• Fan Motor Quantity: 1
• Suction Line Size: 5/8 in (15.9mm)
• Compressor Model: AJA7461YXA
• Design Pressure High: 450
• Design Pressure Low: 150
• Evaporating Temperature Range: -23.3°C to -1.1°C (-10°F to 30°F)
• Motor Torque: High_Start_Torque_HST
• Maximum Ambient Temperature: 110
• Maximum Evaporation Temperature: 40
• Minimum Ambient Temperature: 80
• Minimum Evaporation Temperature: -10
• Pump Down Capacity: 6.6 Pounds
• Fan Motor RLA: 0.85
• LRA: 68
• RLA 60HZ: 10.1
• LRA Start: 68
• Maximum Fuse Size: 20
• Minimum Circuit Ampacity: 13.5
• Overload Type: External
• Relay Type: Potential Relay
• Run Capacitor Mfd. Voltage: 15 MFD/370 Volt
