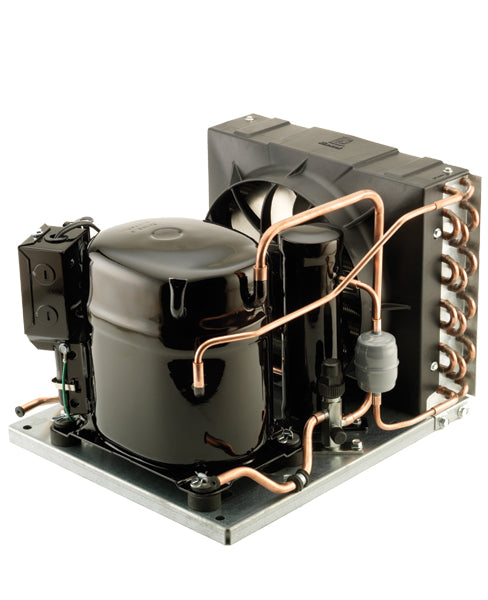

Tecumseh 2G214-19 AKA9446EAADG Condensing Unit 115V/60Hz

Tecumseh AKA9446EAADG 2G214-19 Condensing Unit 115V/60Hz

Description:
Locked Rotor Amps (LRA): 58.8
Rated Load Amps (RLA 60 Hz): 8.8
Overload Type: EXTERNAL
Relay Type: Current Relay

Specifications:
Dimensions - Height: 12.1
Dimensions - Width: 14.3
Dimensions - Length: 20
Dimensions Unit of Measure: IN
Market: Wholesale/Distribution
Overload #: K90-37
Primary Relay #: K71-02
Discharge Line Size: 3/8 in (9.52mm)
Suction Line Size: 5/8 in (15.9mm)
Start Capacitor: K146-52
Start Capacitor Mfd. Voltage: 378_440 MFD/125 Volt
Air Flow: 230 Cubic Feet per Minute
Compressor Bill of Material: AK165AT-037-J7
Condenser: 506-10008
Fan Blade: 515-10003
Fan Motor: 810-10097
Fan Motor Quantity: 1
Filter Drier: (blank)
Pump Down Capacity: 3.1 Pounds
Receiver: 510-10000
Shroud: 707-00005
Design Pressure Low: 150
Design Pressure High: 450
Family Condensing Unit: Standard Air Cooled Unit
Fan Motor RLA: 0.85
Max. Fuse Size: 20
Min. Circuit Ampacity: 11.9
