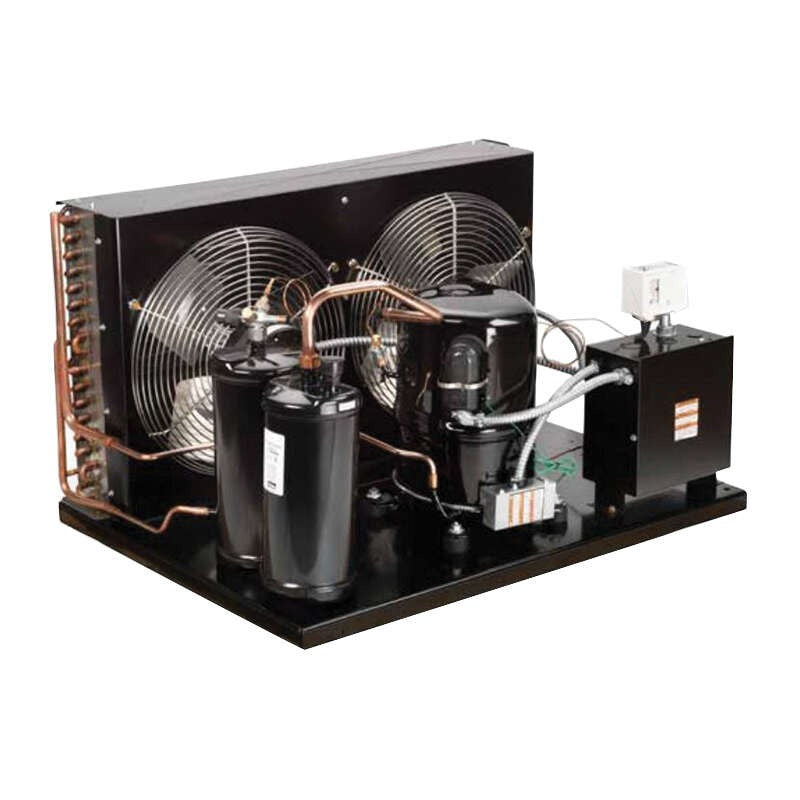

Tecumseh 2B3224-9 AWA2464ZXDXC Condensing Unit

Product Description

The Tecumseh AWA2464ZXDXC condensing unit is an indoor air-cooled unit suitable for low back pressure applications. This unit features a reciprocating compressor along with a tube-fin coil type. It is compatible with multiple refrigerants including R-404A, R-407A, R-448A, R-449A, and R-452A. The condensing unit operates at a voltage of two hundred eight to two hundred thirty volts with a frequency of sixty hertz.

• Designed for low back pressure applications.
• Features a reciprocating compressor and tube-fin coil.
• Operates on 208-230V ~ 60Hz voltage/frequency.

Product Highlights

This condensing unit is ideal for refrigeration systems that require low back pressure and versatile refrigerant options.

Product Information

Standard Information

• Condensing Unit Type: Indoor - Air Cooled
• Brand/Family: AW

Technical Specifications

• Application: LBP - Low Back Pressure
• Refrigerant: R-404A/R-407A/R-448A/R-449A/R-452A
• Voltage/Frequency: 208-230V ~ 60Hz
• Compressor Type: Reciprocating
• Coil Type: Tube - Fin
• Dimensions - Height: 15.4 inches
• Dimensions - Width: 17.8 inches
• Dimensions - Length: 24 inches
• Discharge Line Size: 3/8 in (9.52mm)
• Suction Line Size: 7/8 in (22.2mm)
• Run Capacitor Mfd. Voltage: 45 MFD/370 Volt
• Air Flow: 1600 Cubic Feet per Minute
• Fan Motor Quantity: 1
• Pump Down Capacity: 6.3 Pounds
• Design Pressure Low: 181
• Design Pressure High: 450
• Fan Motor RLA: .7
• Max. Fuse Size: 25
• Min. Circuit Ampacity: 16.5
• Compressor: AW613EH-111-J7
• Start Cap Kit: K146-44
• Run Cap Kit: K150-18
• Relay Kit: K71-19
• BtuH Capacity @ -10°F Evap.: 6450
• BtuH Capacity @ -20°F Evap.: 5,102
• BtuH Capacity @ -30°F Evap.: 3,810
• BtuH Capacity @ -40°F Evap.: 2,572
• BtuH Capacity @ -5°F Evap.: 7,152
• BtuH Capacity @ 0°F Evap.: 7,854
• BtuH Capacity @ 10°F Evap.: 9,313
• HP: 1-1/2
• Liquid Conn.: 3/8 ODF
• Phase: 1
• Pressure Control: Dual
• Receiver Capacity Lbs.: 6.3
• Volts: 208-230
