TECUMSEH 2B3137-9 Compressor Capacity Power 3 Phase

Product Description

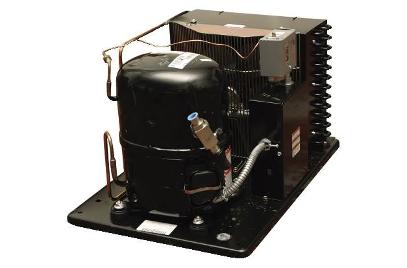

The TECUMSEH compressor 2B3137-9 is designed for effective cooling in various applications. This unit is charged with ester oil and dry nitrogen, ensuring optimal performance. The Maximum Fuse Size and Minimum Circuit Ampacity ratings are critical for installation and operation. The BtuH capacity ratings are based on an ambient temperature of ninety degrees Fahrenheit and listed evaporator temperatures.

• BtuH capacity at -10 degrees Fahrenheit evaporator: 11,958
• BtuH capacity at 0 degrees Fahrenheit evaporator: 15,360
• BtuH capacity at 30 degrees Fahrenheit evaporator: 26,823

Product Highlights

This unit is equipped with a low and high-pressure control system, providing reliable operation under various conditions. The design includes features that make it easy to integrate into existing systems, suitable for capillary tube applications.

Product Information

Standard Information

• Manufacturer: TECUMSEH
• Phase: 3

Technical Specifications

• Compressor Number: AVA7524ZXT
• BtuH Capacity @ 10 degrees Fahrenheit Evaporator: 18,971
• Liquid Connection: 3/8 ODF
• Max Fuse Size: 25
• Min Circuit Amps: 17.1
• Refrigerant: R-404A
• Suction Connection: 7/8 ODF
• Volts: 200/230
