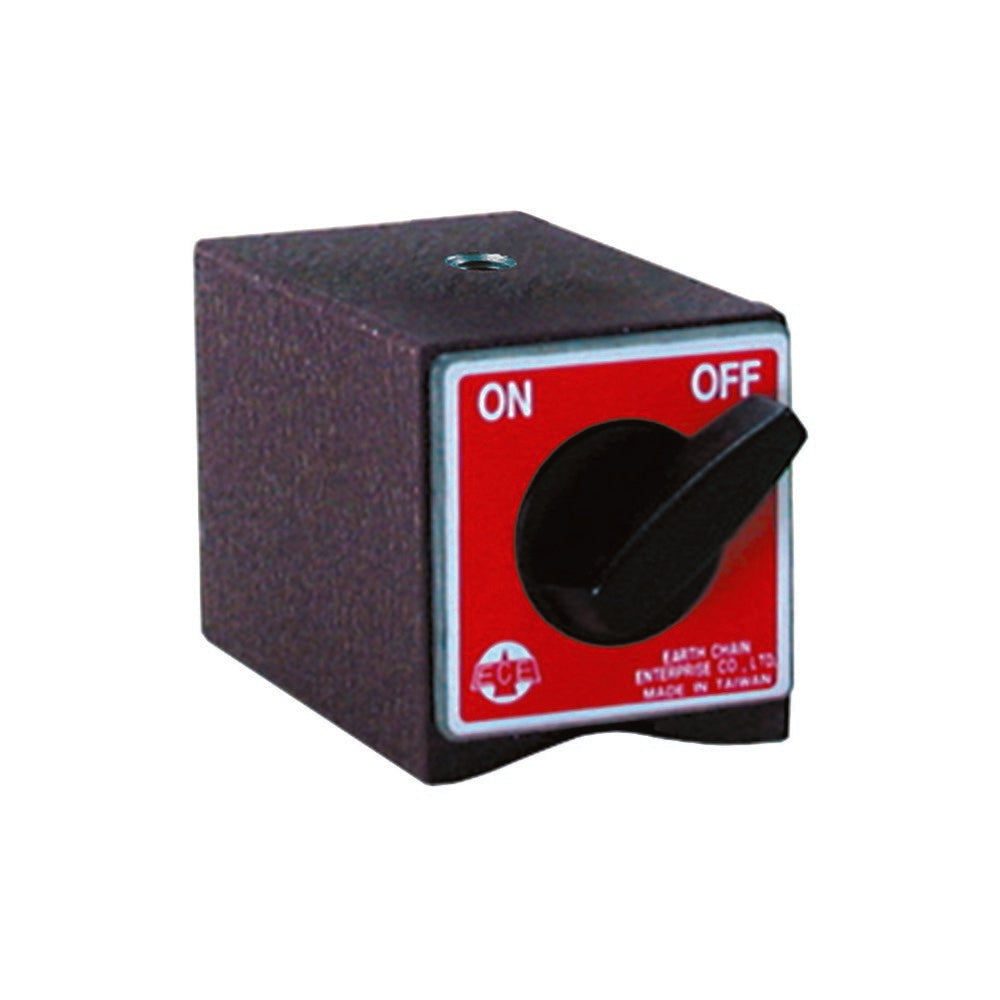

Techniks ECE-311PB Magnetic Indicator Base No Arm

Product Description

The TECHNIKS ECE-311PB is a magnetic indicator base designed to hold dial indicators, test indicators, and similar precision measuring instruments in a fixed position during setup and inspection work. The base uses a strong permanent magnet with 80 kg of magnetic pull to clamp securely to any ferrous surface, including machine tables, surface plates, chucks, and lathe beds. This model ships without an arm, making it a standalone base for shops that already have a compatible arm or spindle attachment. Machinists, toolmakers, and quality technicians are the primary users of this type of base.

The ECE-311PB fits a wide range of shop environments where a stable, repositionable indicator mount is needed. Typical applications include mill and lathe setups, part inspection on surface plates, runout checks on rotating assemblies, and fixture alignment during workholding setup. The compact footprint of 2-3/8 x 2 x 2-1/8 inches keeps the base out of the way in confined setups while still delivering reliable holding force. This base is sold without an arm, so a separate articulating arm or post is required to complete the indicator mounting assembly.

Key Features

• 80 kg magnetic pull for firm, vibration-resistant seating on ferrous surfaces
• Compact base footprint: 2-3/8 inches long, 2 inches wide, 2-1/8 inches tall
• On/off magnetic switch allows quick repositioning without marring the work surface
• No arm included - pairs with a separately sourced articulating arm or post
• Suited for use on machine tables, surface plates, chucks, and lathe beds

Compatibility

Designed as an OEM-style replacement or supplemental base for precision indicator mounting setups on standard ferrous machine surfaces. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation requires no tools - the magnetic base switches on and off via a built-in lever or knob to engage or release the magnetic circuit. Before placing the base, ensure the mounting surface is clean and free of chips, coolant, or debris that could reduce holding force or introduce positioning error. A licensed machinist or qualified toolroom technician should verify that the full indicator assembly is stable and free from unintended movement before recording measurements. Never rely solely on magnetic force when vibration or interrupted cuts are present; verify seating before each use.
