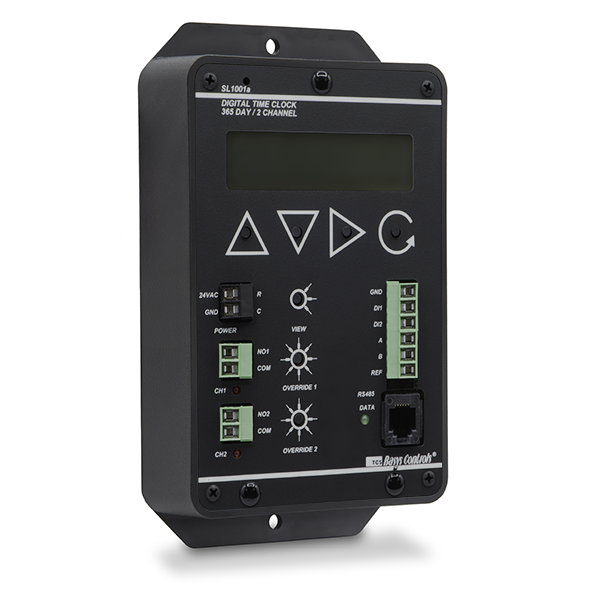

TCS Basys Controls SL1001a 365-Day Time Clock

Product Description

The TCS Basys Controls SL1001a is a two-channel, 365-day time clock. This time clock allows for extensive programming options to meet various scheduling needs. Each channel supports up to two on and two off periods per day, maximizing flexibility in scheduling.

• Programmable for 12 holidays with customizable durations.
• Features local and remote override for control and convenience.
• Accepts signals from occupancy sensors for enhanced energy management.

Product Highlights

This time clock is designed for both stand-alone and network operation, making it suitable for a wide range of applications in building automation and energy management.

Product Information

Standard Information

• Brand: TCS Basys Controls
• MPN: SL1001A

Technical Specifications

• Program settings: Four events per day, seven days a week, with one holiday schedule (12 periods of up to 99 days each) for each channel.
• Override: Programmable from 0 to 255 minutes.
• Inputs: Two digital (dry contact).
• Outputs: Two digital (SPST dry contact, 24 VAC @2A) configurable.
