Tcl 4t-tcn750-ss05 Tcon Board

Product Description

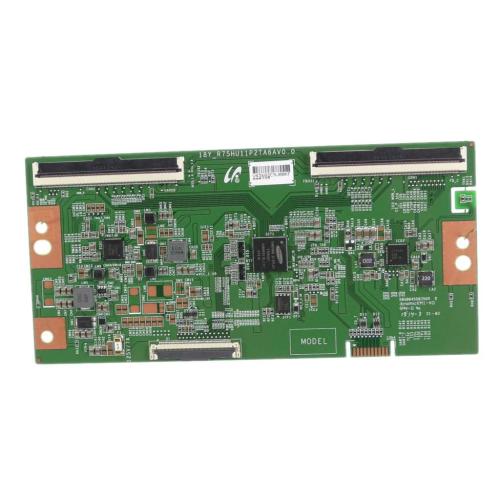

The TCL 4t-tcn750-ss05 is a TCON (timing control) board designed as a direct replacement component for TCL televisions. The TCON board acts as the signal bridge between the main logic board and the LCD panel, converting incoming video data into the precise timing signals that drive the display. A failed or damaged TCON board typically causes symptoms such as horizontal lines, blank screens, or distorted images across the panel. This part is installed by electronics technicians and qualified service professionals performing panel-level TV repairs.

This TCON board is suited for use in TCL flat-panel LCD televisions where the original timing control board has failed. Compatible reference numbers noted in product documentation include LMC750FN03, LJ94-43682B, and LJ94-43682C, which may assist technicians in verifying fitment. Verify the board reference number printed on the existing TCON board before ordering to confirm compatibility with the target unit.

Key Features

• Direct replacement TCON board restoring proper display timing and signal output
• Compatible reference numbers include LMC750FN03, LJ94-43682B, and LJ94-43682C
• OEM-style construction for reliable fit and function in supported TCL panels
• Addresses common LCD display faults including line artifacts, blank panels, and image distortion

Compatibility

Compatible reference numbers documented for this board include LMC750FN03, LJ94-43682B, and LJ94-43682C. Always cross-reference the part number printed directly on the installed TCON board to confirm fitment before installation.

Installation Notes

Installation should be performed by a qualified electronics technician. Disconnect all power from the television and discharge any residual voltage from the panel before handling internal components. TCON boards are sensitive to electrostatic discharge — use proper ESD precautions including a grounded wrist strap when handling the board. Handle all ribbon cable connectors with care, as excess force can damage the connector locks or flex cables.

Technical Specifications

• Board Type: TCON (Timing Control) Board
• Compatible Reference Numbers: LMC750FN03, LJ94-43682B, LJ94-43682C

Standard Information

• Brand: TCL
• Manufacturer Part Number: 4t-tcn750-ss05
