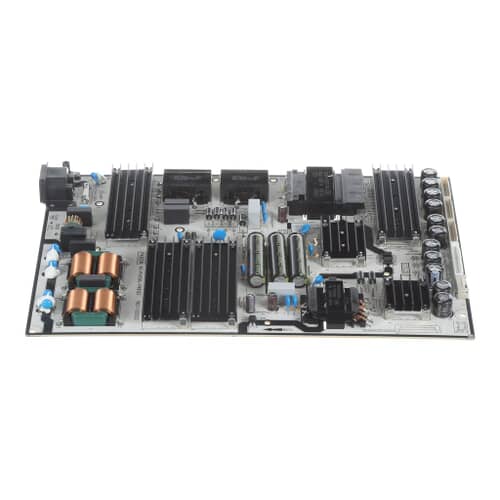

Tcl 30805-000407 Power Supply Board

Product Description

The TCL 30805-000407 is a replacement power supply board designed to restore proper electrical function in TCL consumer electronics units. The board receives AC input and converts it to the regulated DC voltages required by the display panel, backlight, and logic circuits. Known by the internal reference LIPS POWER SUPPLY P40SW, this component is a direct OEM-style replacement. Installation is typically performed by electronics repair technicians or qualified service personnel familiar with display panel servicing and low-voltage board work.

This power supply board is intended for use in TCL televisions and consumer electronics units requiring the LIPS-style power supply architecture. It is suited for service and repair applications where the original board has failed due to component burnout, power surge damage, or normal wear. Technicians sourcing this part should cross-reference the full assembly part number 30805-000407 against the unit service tag before ordering.

Key Features

• OEM-style replacement power supply board for TCL consumer electronics
• LIPS power supply design compatible with P40SW platform
• Restores regulated DC output to display panel, backlight, and logic circuits
• Direct drop-in form factor for qualified board-level replacement

Compatibility

Referenced internally as LIPS POWER SUPPLY P40SW. Designed as an OEM-style replacement power supply board for TCL consumer electronics units. Verify fitment by matching the exact part number 30805-000407 to the unit service label before installation.

Installation Notes

Power supply board replacement should be performed by a qualified electronics service technician. Disconnect the unit from AC power and allow adequate time for capacitors to discharge before handling any internal components. Standard ESD precautions apply when handling circuit boards. Follow all applicable safety guidelines for consumer electronics servicing.

Technical Specifications

• Part Type: Power Supply Board
• Platform Reference: LIPS POWER SUPPLY P40SW

Standard Information

• Brand: TCL
• Manufacturer Part Number: 30805-000407
