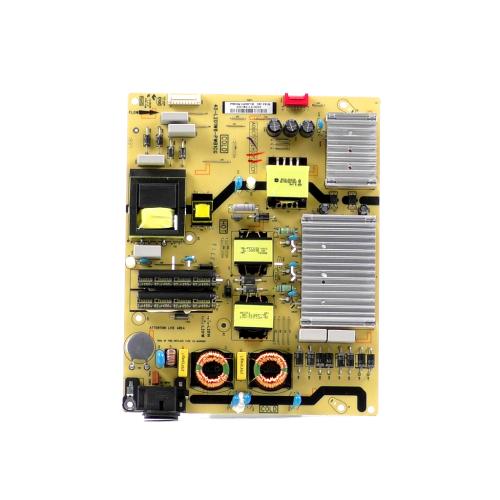

Tcl 08-l201w74-pw200aa Power Board 65D8-CUD

Product Description

The TCL 08-l201w74-pw200aa is a replacement power board designed for TCL flat-panel televisions. This board converts and distributes AC input power to the various internal subsystems of the display, including the backlight driver circuits and logic board supply rails. Operating at 130V/240mA across four channels plus a 12V/2.5A rail, it provides the regulated voltages required to keep the panel, processing hardware, and backlighting running within spec. Installation is typically performed by consumer electronics technicians or qualified repair professionals familiar with flat-panel display service procedures.

This power board is used in TCL flat-panel television service and repair applications. It is identified for use with the 65D8-CUD model line using the L201W board revision. Technicians sourcing a direct board swap for failed or damaged power supply sections in this display family will find this part a direct fit for that application.

Key Features

• Four-channel 130V/240mA output for backlight driver supply
• 12V/2.5A secondary rail for logic and processing board supply
• Direct OEM-style replacement designed for the L201W board platform
• Supports the 65D8-CUD display model

Compatibility

Identified for use with the TCL 65D8-CUD television using the L201W board revision, as stated in the product data. Verify board revision and model number on the original part before installation.

Installation Notes

Power board replacement in flat-panel televisions should be performed by a qualified electronics technician. Disconnect the television from AC power and allow capacitors to discharge fully before handling internal components. Use proper ESD precautions when handling the board. Consult the display service manual for connector locations, board mounting points, and any high-voltage precautions specific to this chassis.

Technical Specifications

• Output Channel 1: 130V / 240mA x 4 channels
• Output Channel 2: 12V / 2.5A
• Compatible Model: 65D8-CUD
• Board Revision: L201W

Standard Information

• Brand: TCL
• Manufacturer Part Number: 08-l201w74-pw200aa
