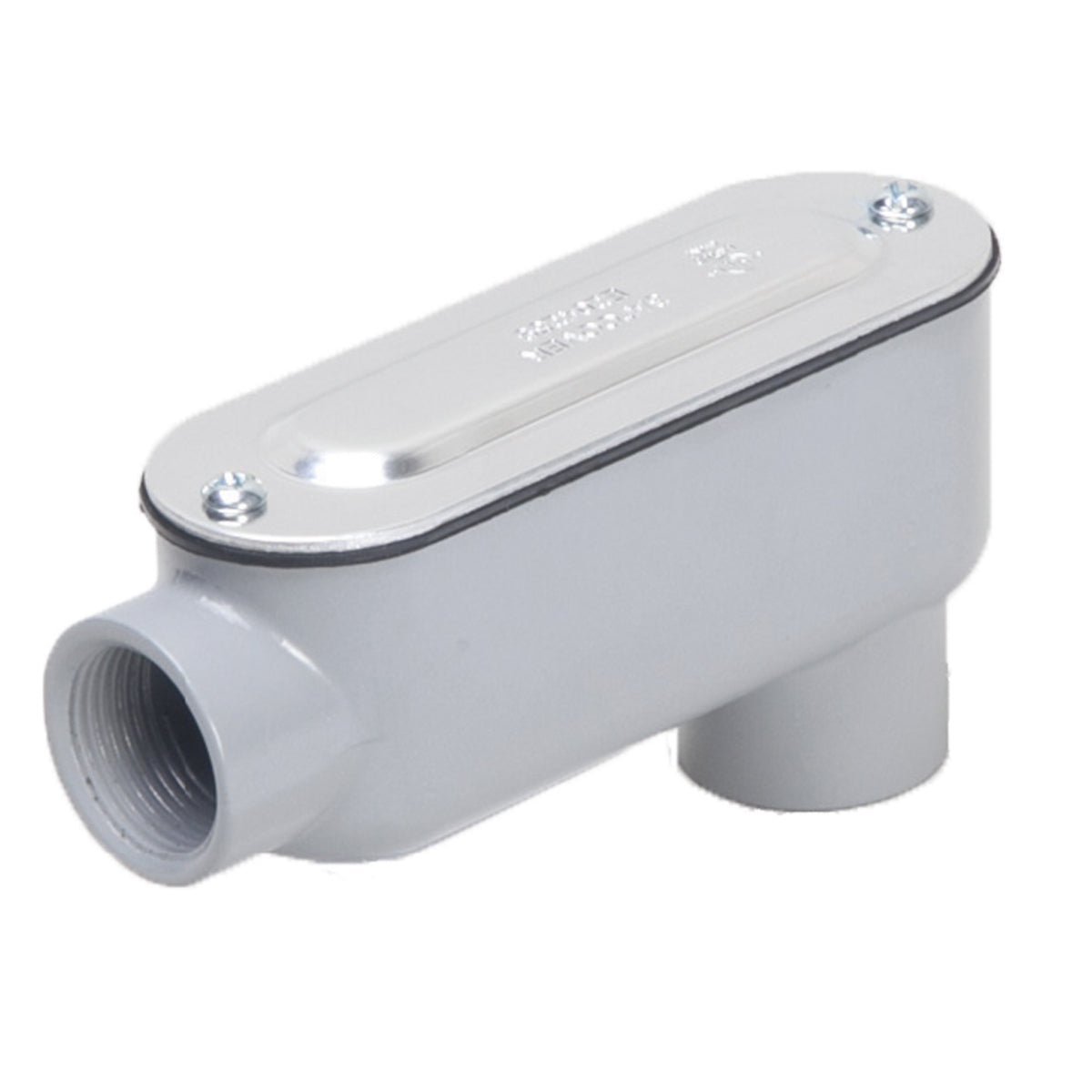

TayMac RLB200 2 in Rigid LB Assembly

Product Description

The TayMac RLB200 is a 2 inch rigid LB assembly designed for electrical applications. This conduit body is made from durable die cast aluminum and offers a powder coated finish for added protection. It includes an NBR synthetic rubber gasket for a secure and watertight seal. Ideal for pulling access or splitting runs into multiple directions, the removable cover allows for easy maintenance and splicing of conductors.

• Durable die cast aluminum construction.
• Includes NBR synthetic rubber gasket.
• Powder coated finish for enhanced durability.

Product Highlights

This product is equipped with a stamped aluminum cover and features a combination head screw for easy installation.

Product Information

Standard Information

• Brand: TayMac
• Manufacturer: Raco-Taymac-Bell, a Hubbell affiliate

Technical Specifications

• Type: Type LB
• Material: Die Cast Aluminum
• Color: Gray
• Width: 3.19 inches
• Height: 4.51 inches
• Length: 10.05 inches
• Weight: 2.1 lb
• Enclosure Rating: NEMA 3R
• Capacity: 67 cu-in
• Hub Size: 2 inches
• UPC: 092326211963
• GTIN: 00092326211963
• Country of Origin: China
