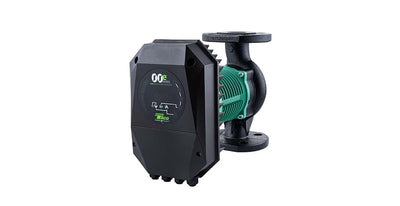

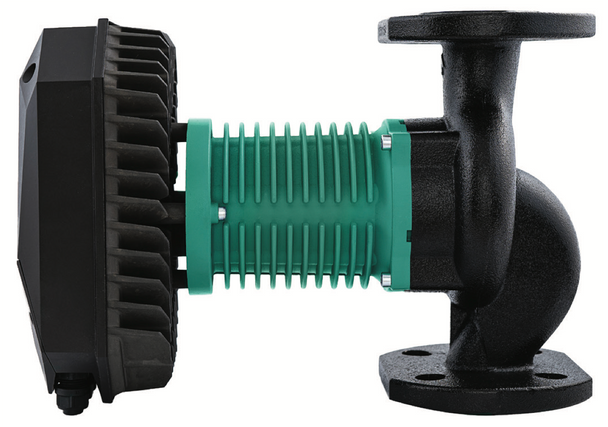

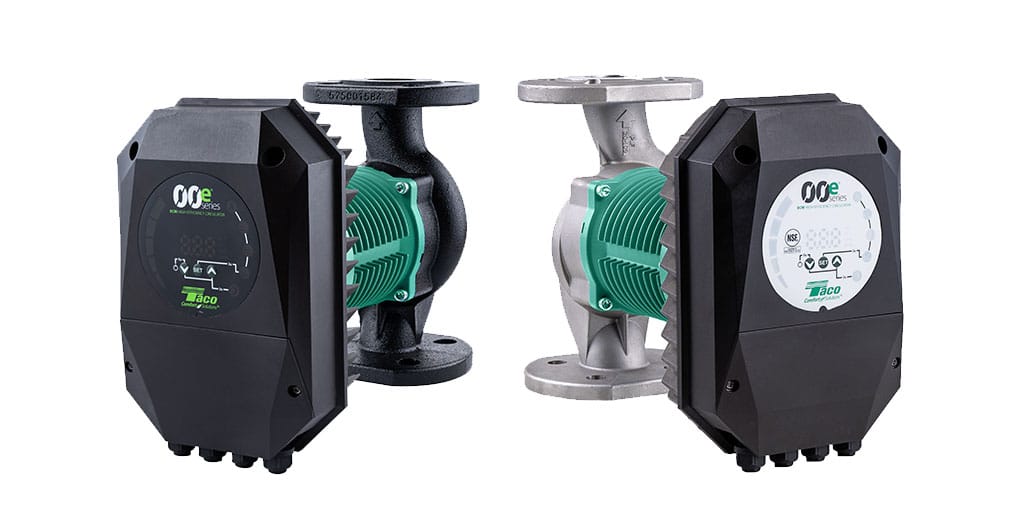

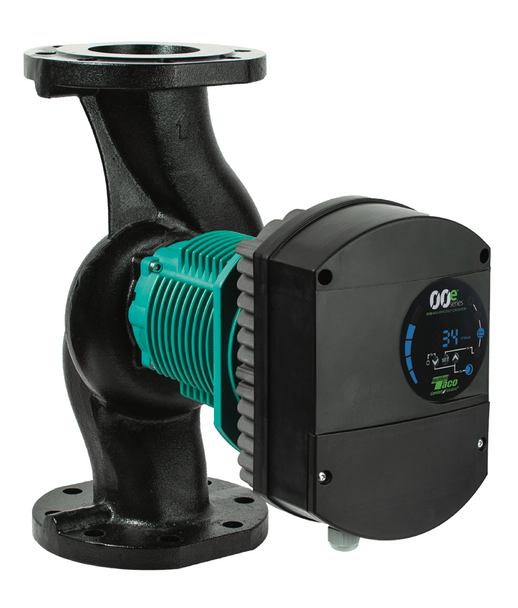

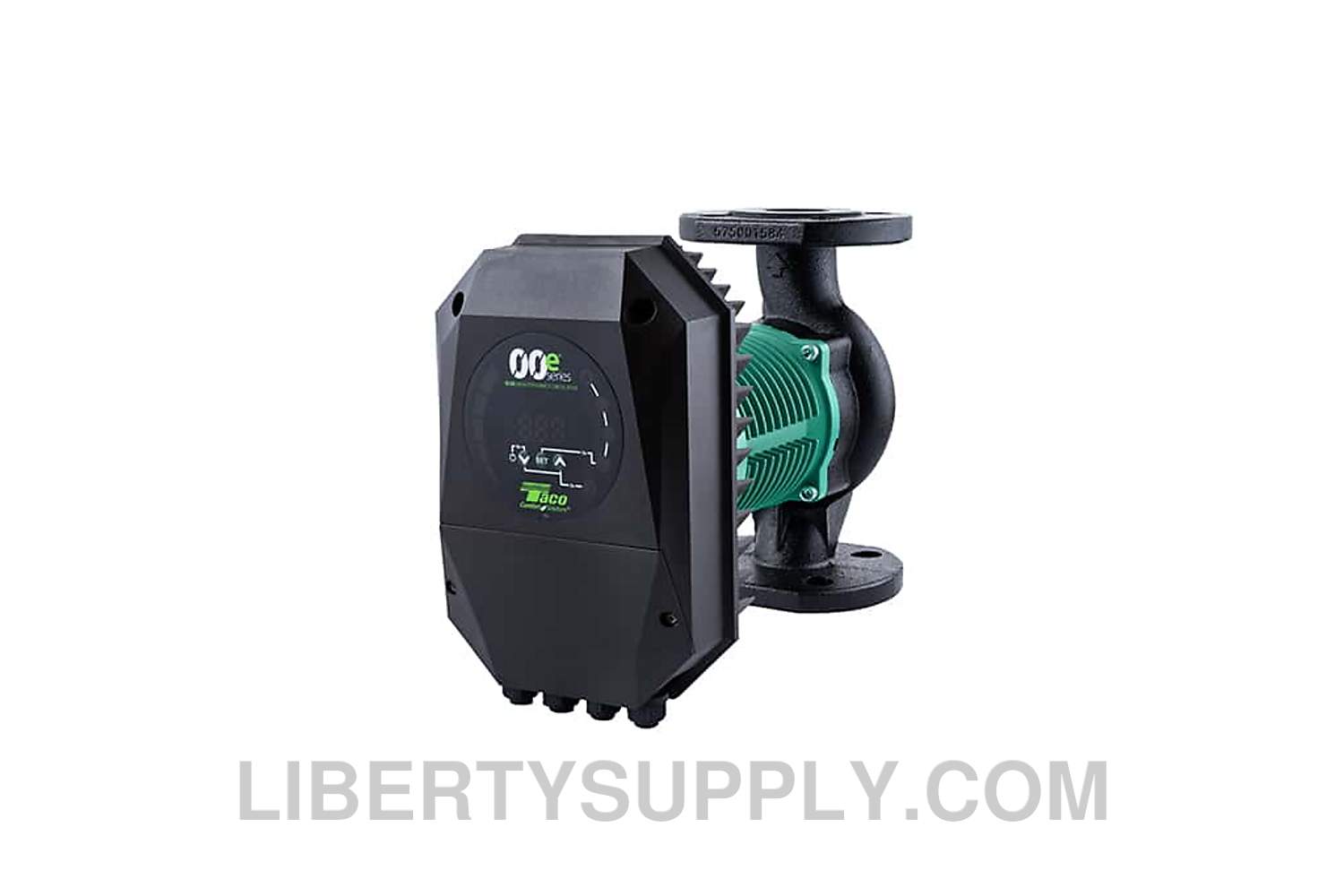

Taco VR30L-F 00e VR Series ECM High-Efficiency Circulator

Product Description

The Taco VR30L-F is a variable speed, wet rotor circulator ideal for commercial chilled and hot water applications. This model features an ECM motor that enhances energy efficiency, making it suitable for fluids that range in temperature from fourteen to two hundred thirty degrees Fahrenheit. Built with a robust cast iron volute and stainless steel rotor assembly, it is designed for durability.

• ECM motor saves up to eighty-five percent in electrical energy compared to traditional pumps.
• Compatibility with BMS communication standards including Modbus, BACnet, 0-10Vdc, and PWM.
• Operates effectively for fluids in the temperature range of fourteen to two hundred thirty degrees Fahrenheit.

Product Highlights

This circulator helps optimize heating and cooling systems while providing multiple operating modes and parallel pump control.

Product Information

Standard Information

• Brand: Taco
• MPN: VR30L-F

Technical Specifications

• Series: Series 00e VR
• Material: Cast Iron
• Maximum Shut Off Head: 27 Feet
• Maximum Flow: 242 USGPM
• Water Temperature Range: 14 to 230°F (-10 to 110°C)
• Ambient Temperature Range: 32 to 104°F (0 to 40°C)
• Ambient Humidity: Less than 95% RH
• Maximum Pressure: 175 psi
• Power Consumption: 1.1 HP / 800 W
• Input Voltage: 200-240V
• 24 Volt Supply Outlet: Max current up to 100mA, Output Voltage +/- 20% of 24 Volts, Output Ripple under 1 Volt
• Connection Size: 3 inches
• Connection Type: Flanged
