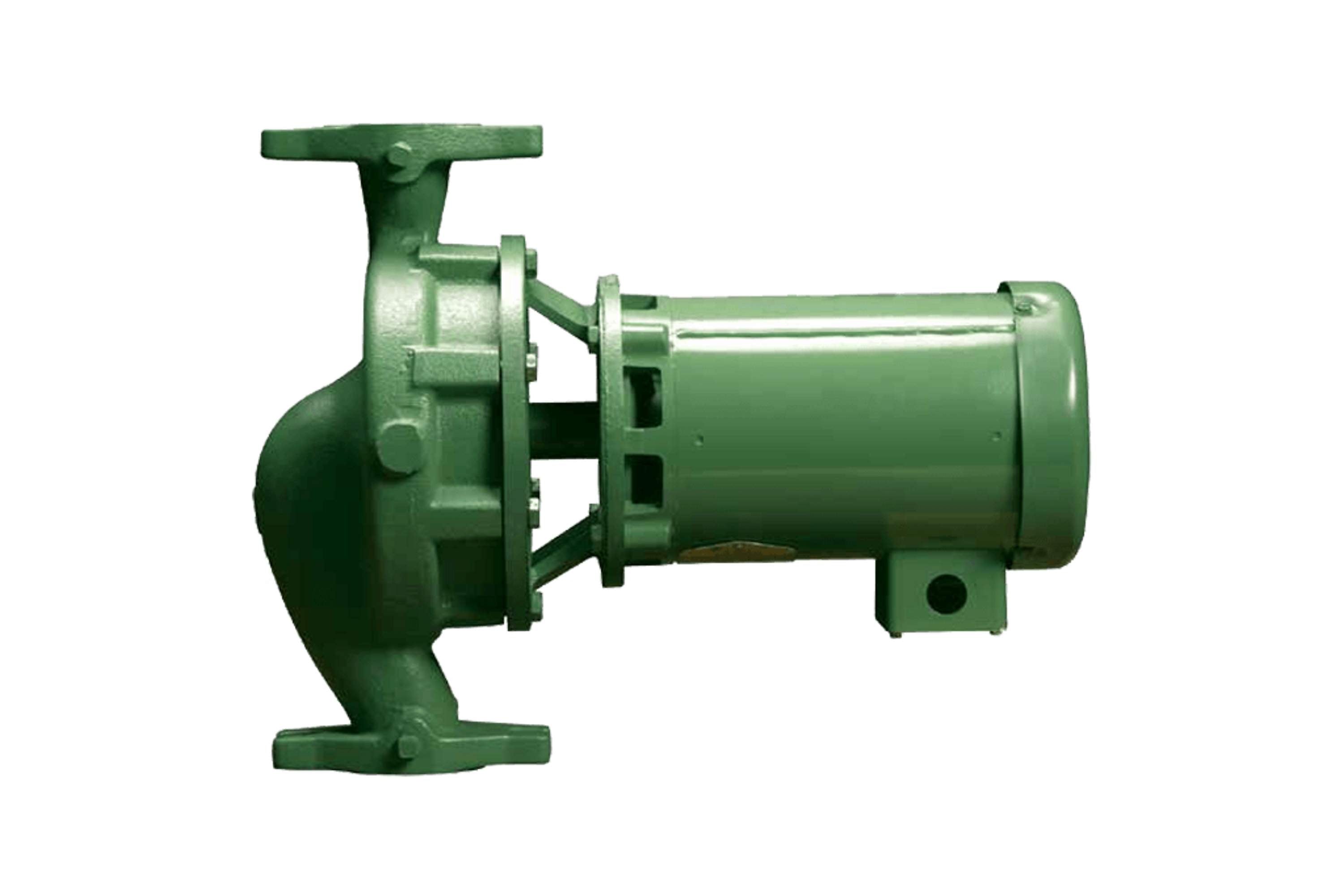

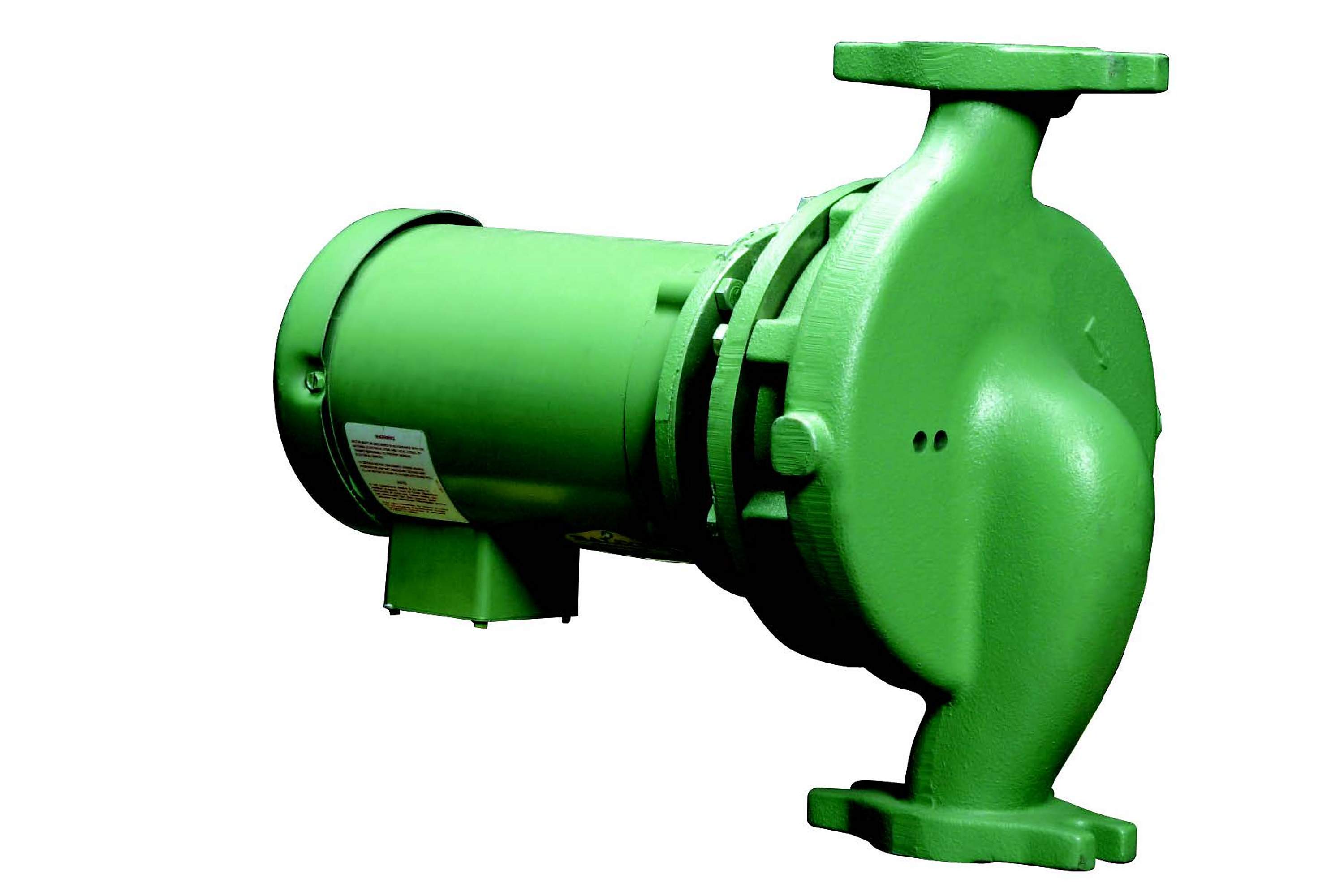

TACO 1935DAE10000000 Series 1900 Model 1935 Pump

Product Description

The TACO 1935DAE10000000 Series 1900 Model 1935 is a close-coupled, in-line pump designed for efficient fluid handling. It features a suction and discharge size of two inches, providing optimal flow rates for various applications. Manufactured from high-quality stainless steel, both the casing and impeller offer durability and resistance to corrosion. The pump includes a cast iron bracket with a stainless steel face plate for added strength. With a nominal impeller diameter of six point fifteen inches, this pump is built to perform reliably under demanding conditions.

• Suction and discharge size: 2 inches (50 mm)
• Casing and impeller made from stainless steel
• Maximum operating temperature of 250 degrees Fahrenheit

Product Highlights

This pump is suitable for heating and cooling systems, making it ideal for HVAC applications. Its design ensures minimal maintenance and extended service life.

Product Information

Standard Information

• Manufacturer: Taco
• Model: 1935

Technical Specifications

• Part Number: 1935DAE10000000
• Suction and Discharge Size: 2 inches (50 mm)
• Impeller Diameter: 6.15 inches
• Casing Material: Stainless Steel
• Impeller Material: Stainless Steel
• Bracket Material: Cast Iron with Stainless Steel Face Plate
• Shaft Material: Stainless Steel
• Seal Type: Ceramic Seat
• Rotor Material: Carbon
• Rubber Material: EPT
• Maximum Operating Temperature: 250 degrees Fahrenheit
