System Sensor SPSWL Speaker Strobe Wall Mount High-Intensity Candela Settings

Product Description

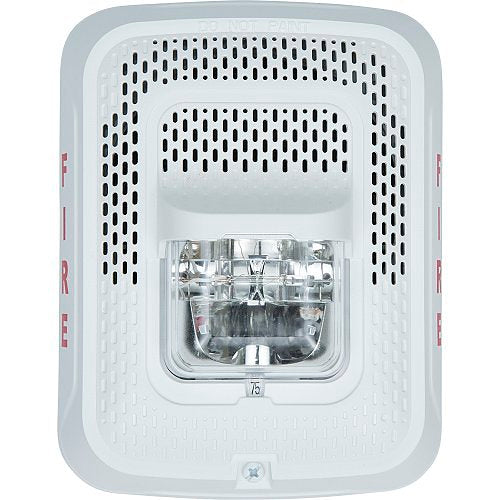

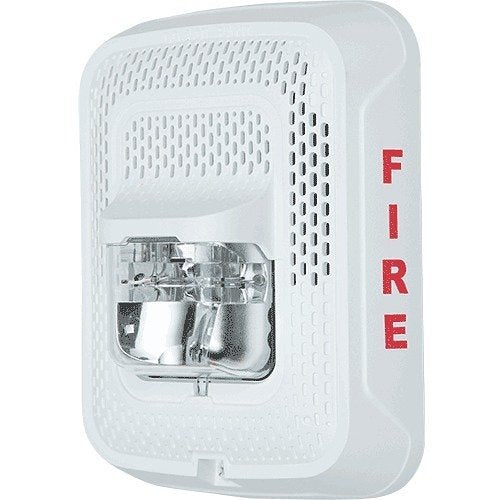

The System Sensor SPSWL model is a wall-mounted speaker strobe from the L-Series, designed for indoor use with a white housing and clear lens, prominently marked with 'FIRE'. This device is crafted to provide both audible and visual alarms in fire emergencies, offering selectable strobe settings to cater to different requirements.

• Plug-in design with protective cover minimizes ground faults.
• Universal mounting plate with an onboard shorting spring ensures wiring continuity before installation.
• Field-selectable candela settings allow customization ranging from 15 to 185 candela.

Product Highlights

This speaker strobe is compatible with both 12 and 24-volt operations and offers a choice of 25 and 70.7 volts for the speaker voltage, supporting power settings from 1/4 to 2 watts. Its compatibility with System Sensor synchronization protocol and existing SpectrAlert products allows for flexible integration into existing systems.

Technical Specifications

• Mount Type: Wall Mount
• Sound Emission: 86 decibels
• Flash (Candela): 15/185
• Depth: 2.3 inches
• Width: 5 inches
• Height: 6.5 inches
• Humidity Range: 10 to 93 percent RH
• Temperature Limits: 32 to 120 degrees Fahrenheit
