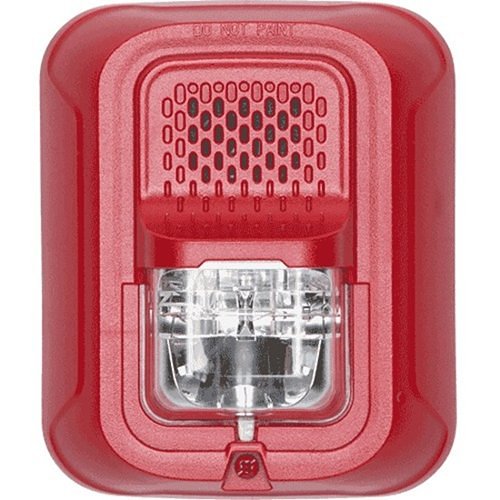

System Sensor CHSRL L-Series Selectable Output Chime Strobe Wall Mount Red

Product Description

The System Sensor CHSRL L-Series Selectable Output Chime Strobe is designed for wall mount installations, providing a reliable alert system in red housing. This device is suitable for locations requiring discreet notifications like security stations or healthcare facilities.

• Efficient plug-in design for quick installation with minimal back box intrusion.
• Features a shorting spring on the mounting plate to check wiring continuity before installation.
• Includes tamper-resistant features and field-selectable candela settings for customizable operation.

Product Highlights

The CHSRL model supports versatile applications by featuring adjustable volume settings and chime tones through a rotary switch and offers compatibility with legacy SpectrAlert devices.

Product Information

Standard Information

• Brand: System Sensor
• MPN: CHSRL
• Mount Type: Wall

Technical Specifications

• Color: Red
• Dimensions: Height 5.6 inches, Width 4.7 inches, Depth 1.9 inches
• Operating Voltage: 12/24V DC
• Compatible Devices: Legacy SpectrAlert and SpectrAlert Advance devices
• Alarm Type: Audible and Visual
• Candela Settings: Selectable; Wall: 15, 30, 75, 95, 110, 135, 185 - Ceiling: 15, 30, 75, 95, 115, 150, 177
