Supco urc0810 3-in-1 Relay Overload Start Capacitor

Product Description

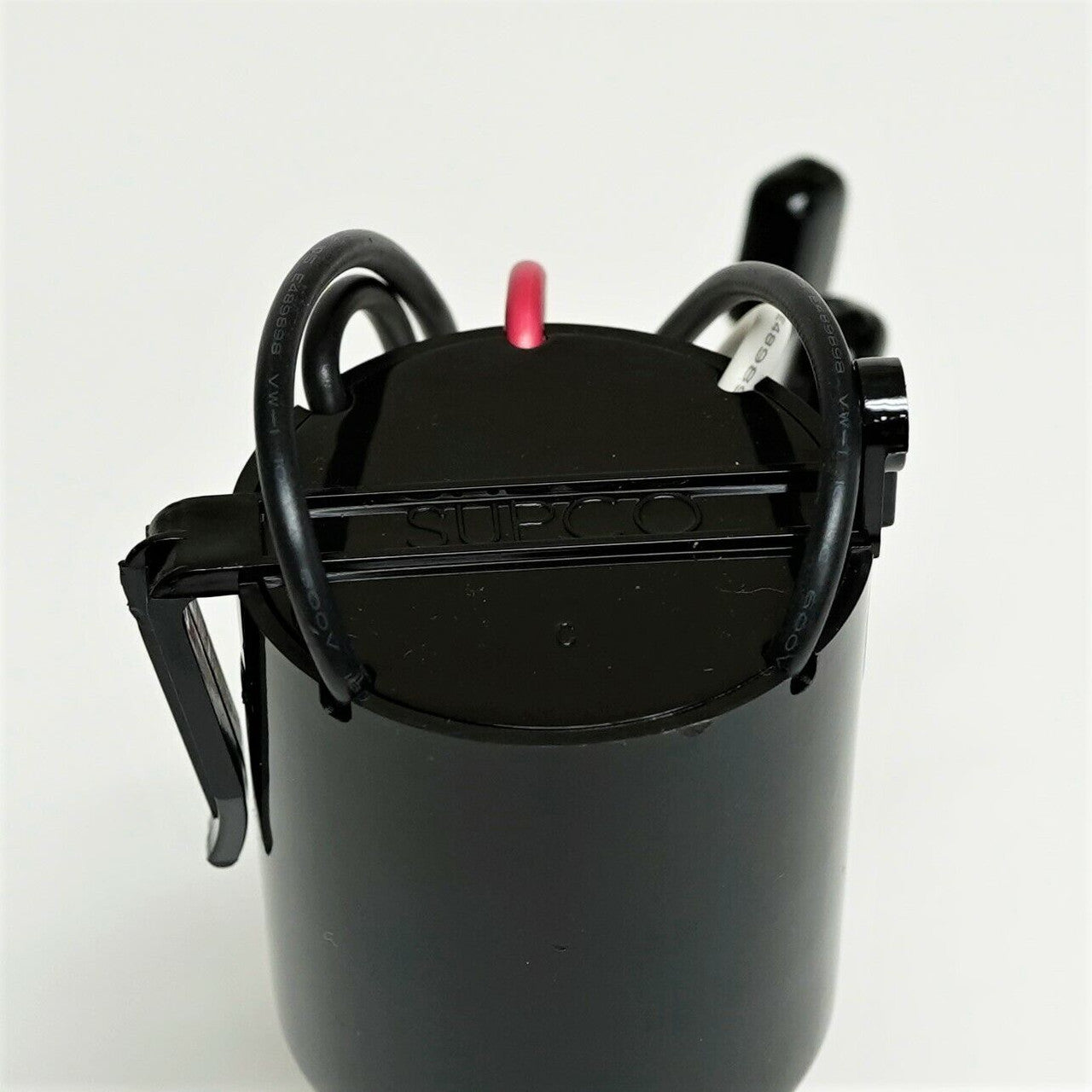

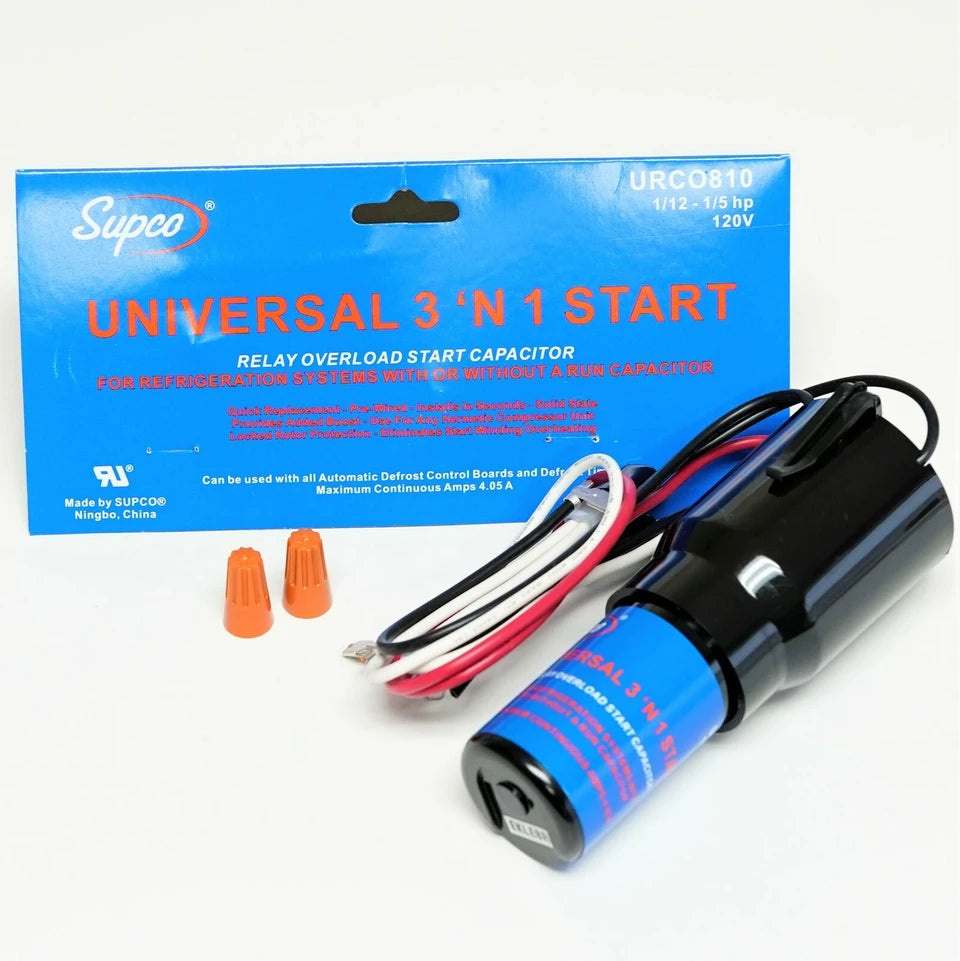

The SUPCO urc0810 is a 3-in-1 combination relay, overload protector, and start capacitor designed for sealed refrigeration compressors. This single component replaces three separate parts, simplifying service calls and reducing parts inventory on the truck. It operates at 115 volts and is rated for compressors in the 1/12 to 1/5 horsepower range. The unit arrives completely pre-wired, with the wiring diagram and installation instructions printed directly on the package. Refrigeration technicians and appliance service pros use this part to restore compressor starting function quickly on household refrigerators and freezers.

This part is suited for residential refrigerator and freezer compressor service. It is intended for use with single-phase, 115-volt hermetic compressors in the 1/12 to 1/5 HP range. It can be installed with or without a separate run capacitor, giving technicians flexibility when diagnosing compressor hard-start or no-start conditions. The pre-wired design eliminates the need to splice or terminate individual component leads during installation.

Key Features

• Combines relay, overload, and start capacitor in one pre-wired assembly
• Compatible with 115-volt compressors rated 1/12 to 1/5 HP
• Can be used with or without a run capacitor

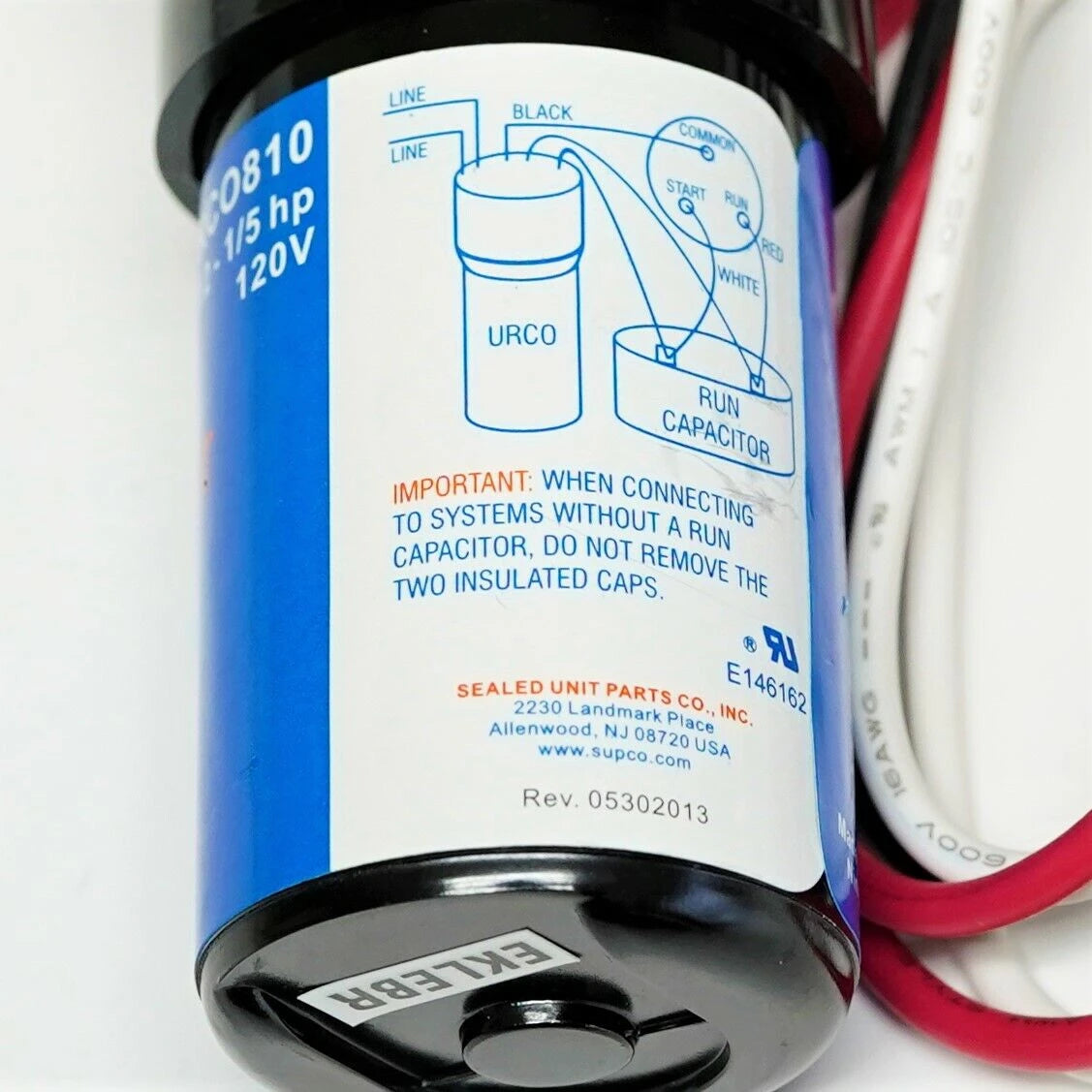

• Wiring diagram and installation instructions printed on package
• Reduces service time by replacing three components in a single swap

Compatibility

Designed as an OEM-style replacement for sealed hermetic compressors in residential refrigerators and freezers rated at 115 volts and 1/12 to 1/5 horsepower.

Installation Notes

Installation should be performed by a qualified appliance or refrigeration technician. Disconnect power to the appliance at the outlet or breaker before removing the existing relay, overload, or capacitor. The pre-wired assembly plugs directly onto the compressor terminals; refer to the diagram printed on the package for correct terminal orientation. Do not energize the compressor until the assembly is fully seated and secured.

Technical Specifications

• Voltage: 115 volts
• Compressor HP Range: 1/12 to 1/5 HP
• Components Included: Relay, overload protector, start capacitor
• Wiring: Pre-wired assembly

Standard Information

• Brand: SUPCO
• Manufacturer Part Number: urc0810
