Sundance Spas 6600-425 880 Series Spa Control Panel

Product Description

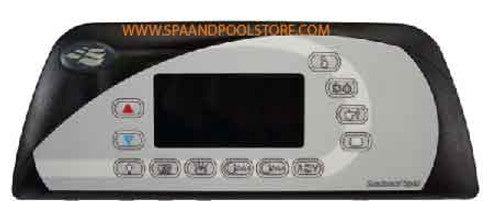

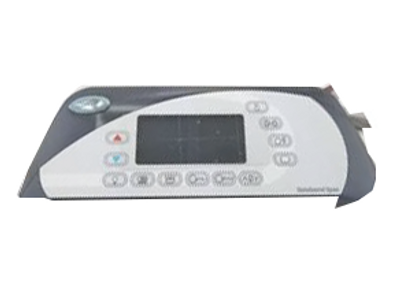

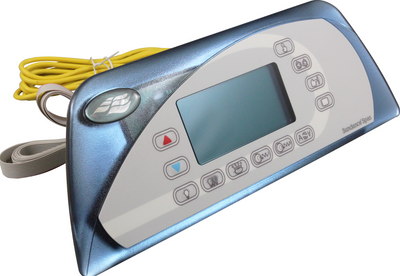

The Sundance Spas 6600-425 is a control panel designed specifically for the 880 series spas manufactured between 2013 and 2015. This panel is compatible with both 2-pump and 3-pump systems. Its trapezoid shape includes an LCD display, offering an intuitive interface for spa operation. The control panel features a 12-button overlay that provides easy access to various functions, allowing users to adjust settings seamlessly.

• Compatible with 2-pump and 3-pump spa systems
• Includes a 12-button overlay for ease of use

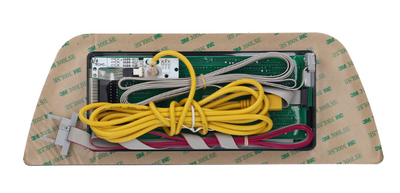

• Connects via MiniDin and features a 14-pin ribbon connector

Product Highlights

The Sundance Spas 6600-425 control panel is essential for managing the functions of your spa, ensuring a smooth and enjoyable experience.

Product Information

Standard Information

• Brand: Sundance Spas
• Series: 880

Technical Specifications

• Compatibility: 2-pump and 3-pump systems
• Connector Type: MiniDin, 14-Pin Ribbon
• Cord Length: 5 ft
• Overlay Buttons: Temp+, Temp-, Select, Cycle, Mode, Display, Light, Light Mode, Blower, Jets1, Jets2/3, Invert
• Compatible Circuit Boards: 6600-392, 6600-390, 6600-728, 6600-730
• Compatible Sensors: Temperature Sensor 6600-167, Hi-Limit Sensor 6600-168, Flow Switch 6560-860
• Shape: Trapezoid
• Dimensions: 12.5 inches x 4.7 inches
