SteelCrest BTU24X6RWHH Fixed Return Grille 24x6

Product Description

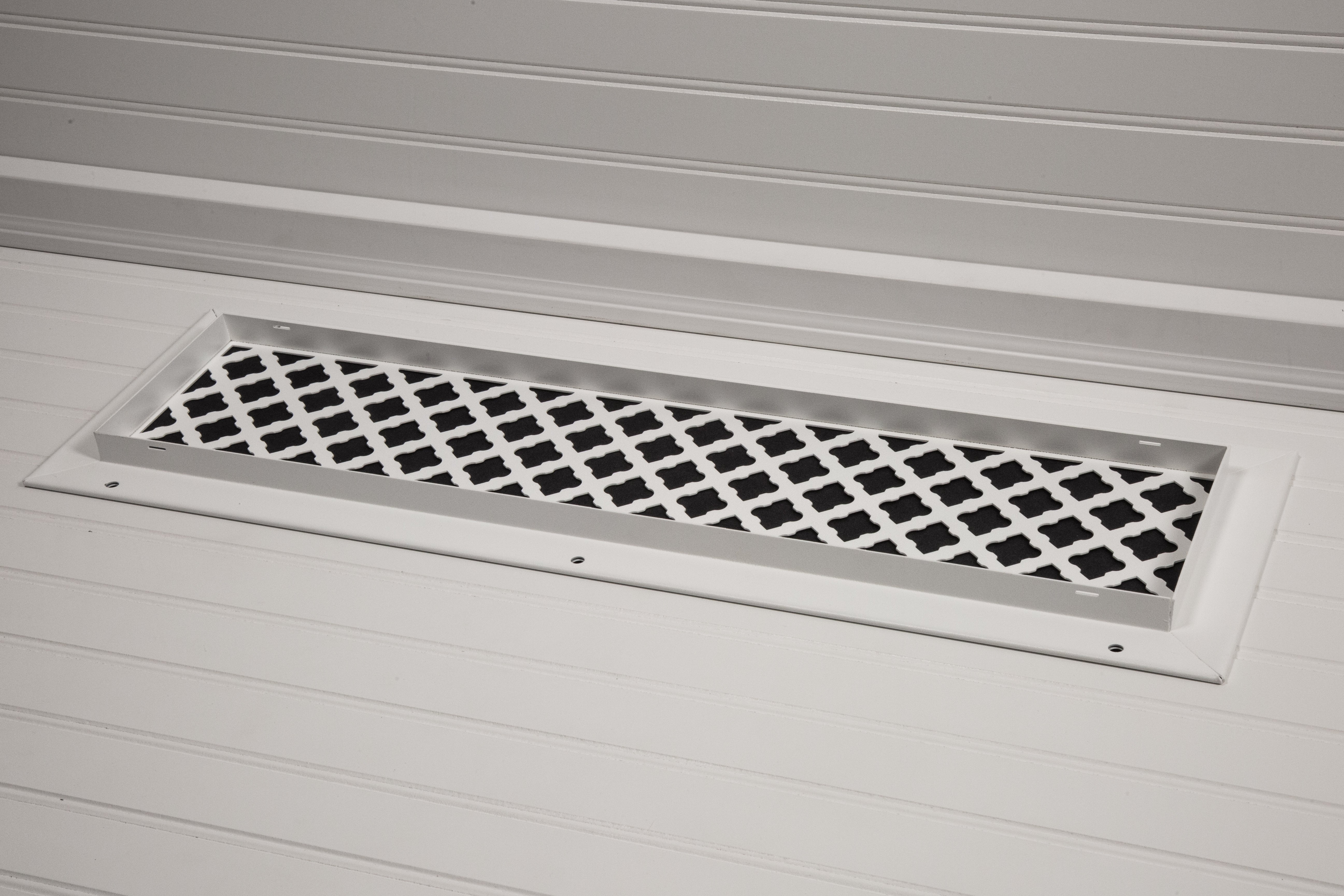

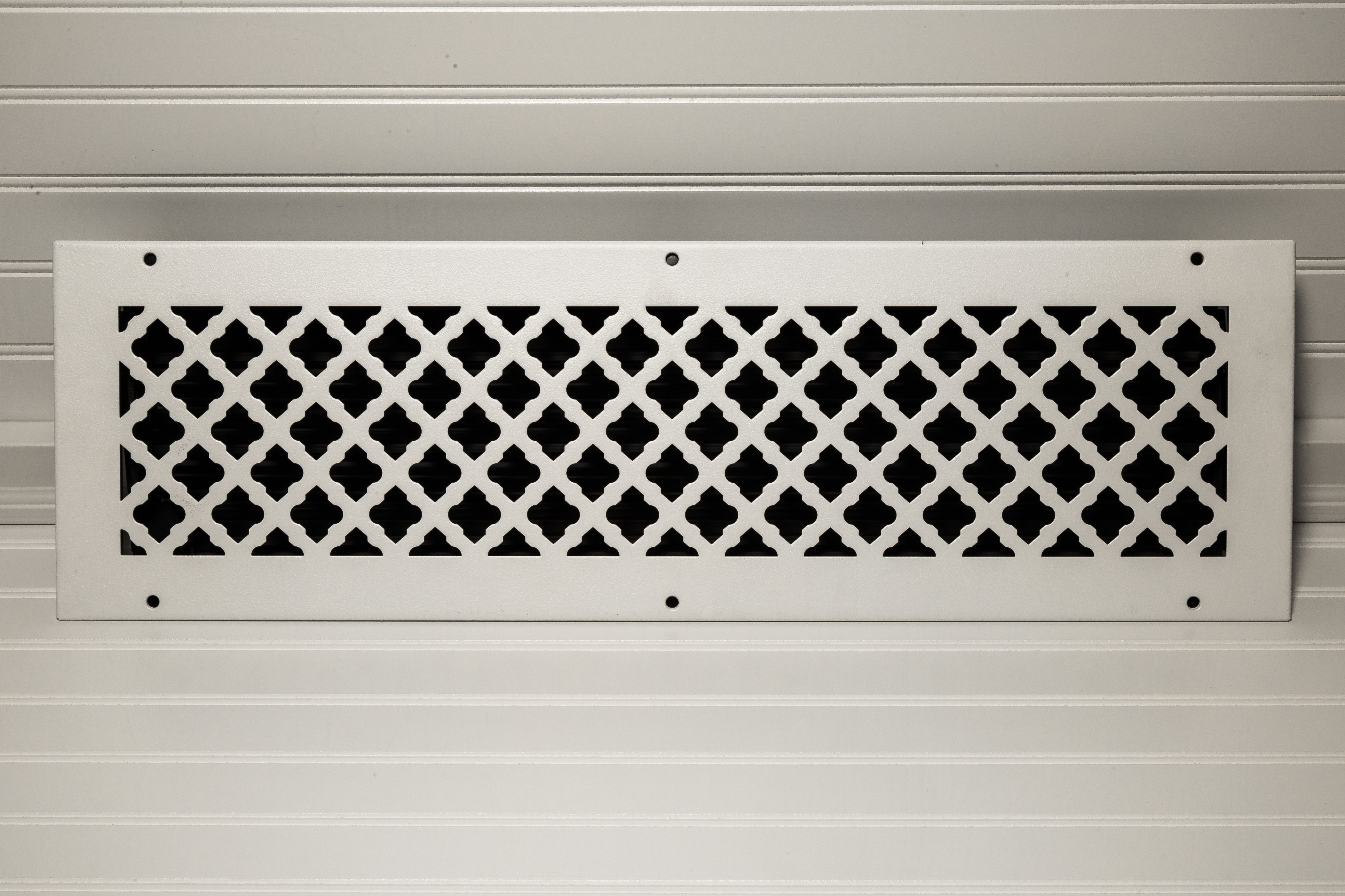

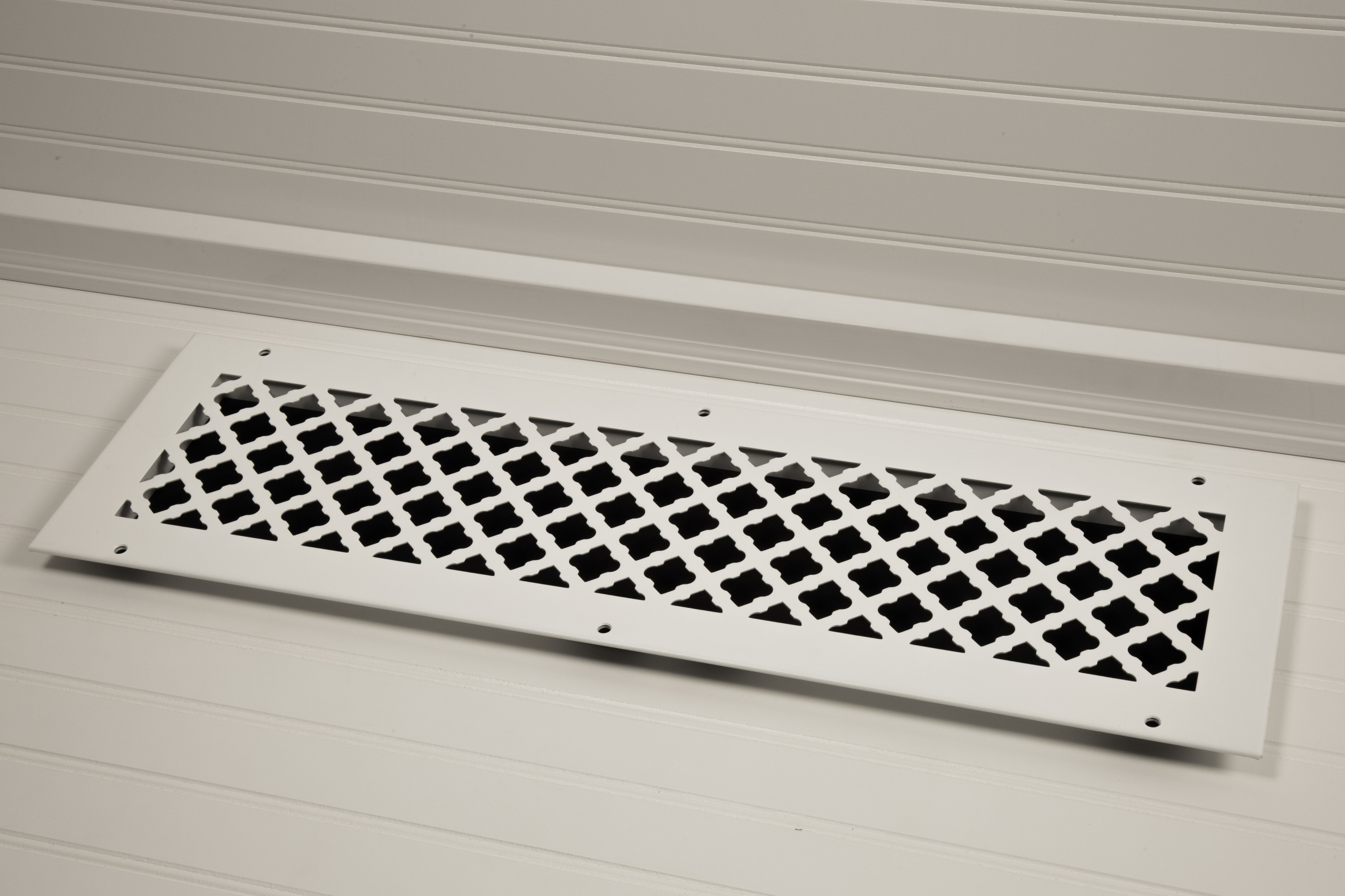

The SteelCrest BTU24X6RWHH is a fixed return air grille built from solid steel with a white powder-coat finish. It features a slotted face design sized to fit a 24 x 6 inch duct opening, with an overall finished face size of 26 x 8 inches. The fixed blade configuration supports consistent return airflow without adjustable parts that can loosen or shift over time. Licensed HVAC technicians and contractors install this grille in residential and light commercial applications during new construction, renovation, or direct-replacement service calls where the existing grille is damaged or being upgraded.

This grille is suited for wall and ceiling return air installations in forced-air HVAC systems. The 24 x 6 inch duct opening size makes it a common fit for standard residential return air trunk drops and branch ducts. The 26 x 8 inch face overlaps the duct collar opening, providing a clean finished appearance against drywall, plaster, or wood surfaces. The white powder-coat finish is appropriate for standard residential interior environments and blends with typical wall and ceiling paint schemes.

Key Features

• Solid steel construction with white powder-coat finish for long-term durability
• Fixed slotted face design supports consistent return airflow
• Fits 24 x 6 inch duct opening with 26 x 8 inch overall finished face size
• Suitable for wall or ceiling mount installations
• Direct-replacement sizing compatible with standard residential return duct openings
• Powder-coat finish resists chipping and corrosion under normal interior HVAC service conditions

Compatibility

Designed as a direct-replacement fixed return grille for residential and light commercial forced-air HVAC systems with a 24 x 6 inch return duct opening.

Installation Notes

Installation is typically performed by a licensed HVAC technician or qualified contractor. Shut down the air handling system at the thermostat and disconnect power at the air handler or furnace before removing the existing grille. Secure the grille to the wall or ceiling surface using fasteners appropriate for the substrate material. Follow local mechanical codes for return air grille placement and clearance requirements.

Technical Specifications

• Duct Opening Size: 24 x 6 inches
• Overall Finished Face Size: 26 x 8 inches
• Material: Solid Steel
• Finish: White Powder Coat
• Blade Type: Fixed Slotted
• Mount Type: Wall or Ceiling
• Package Weight: 10 pounds
• Package Height: 28 inches
• Package Length: 11 inches
• Package Width: 3 inches

Standard Information

• Brand: SteelCrest
• Manufacturer Part Number: BTU24X6RWHH
