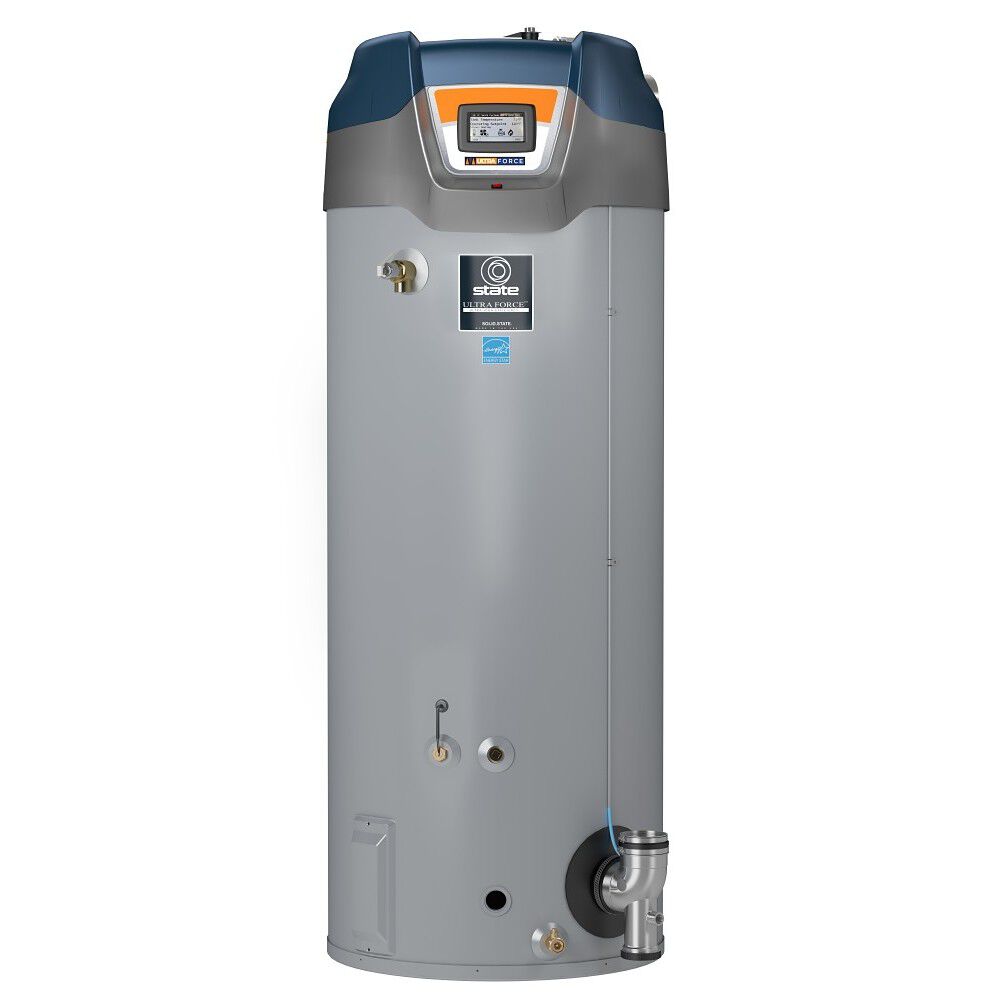

State SUFX119A Modulating Ultra Force™ High Efficiency Power Vent 119 Gallons

Product Description

The State SUFX119A Modulating Ultra Force™ High Efficiency Power Vent condensing water heater is designed for dependable service with industry-leading technology. It delivers thermal efficiencies of 96%. The helical coil heat exchanger limits weld joints while maximizing heat transfer. It adjusts firing rate to the specific demand, increasing efficiency and saving money.

• ENERGY STAR® certified - Up to 96% thermal efficiency dramatically lowers operating costs
• Intelligent Demand Response control system senses large water draws and automatically adjusts the differential setpoint, increasing the hot water available when it is needed the most
• Submerged combustion chamber, with helical heat exchanger, positioned in center of tank, surrounded by water to virtually eliminate radiant heat loss from chamber

Product Highlights

This high-efficiency power vent water heater features a modulating burner, a helical coil heat exchanger, and iCOMM™ remote monitoring for detailed diagnostics and control.

Product Information

Standard Information

• Brand: STATE
• Manufacturer Part Number: SUFX119A
• Country of Origin: US

Technical Specifications

• Nominal Gallon Capacity: 119 Gallons
• Rated Storage Volume: 118 Gallons
• Thermal Efficiency: 96%
• Maximum BTUs: 300,000
• Power Source: GAS
• T&P Relief Valve: Yes
• Water Connection Size: 1.5"
• ASME Certified: No
• Amperes: 5
• Digital Display: Yes
• ENERGY STAR Certified: Yes
• Fuel Source: NATURAL
• Height to T&P: 52.00
• Installation Type: INDOOR
• Minimum BTUs: 195,000
• Application: COMMERCIAL
• Side Loop: No
• Voltage: 120
• Type: Water Heater
• Height: 75.75"
• Diameter: 33.13"
• Height to Gas Valve: 74.5"
