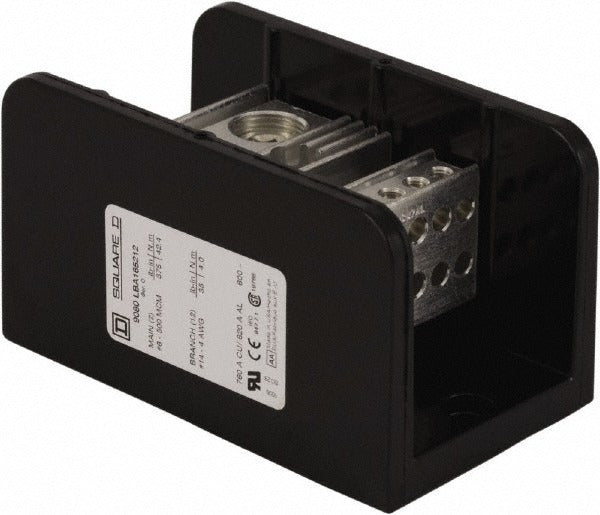

Square D 9080LBA165212 Power Distribution Block

Product Description

The SQUARE D 9080LBA165212 is a single-pole phenolic power distribution block rated for 620 amps with aluminium conductors and 760 amps with copper conductors at 600 VAC. It provides a reliable method for splitting a single high-current source feed into multiple branch circuits within a panel or enclosure. The phenolic housing offers solid dielectric strength for high-voltage branch wiring applications. This block ships as a single unit and is installed by licensed electricians working on commercial or industrial distribution equipment.

This distribution block is suited for residential and commercial electrical panels, motor control centers, and industrial enclosures where a single incoming feed must be distributed to multiple branch circuits. With two primary connection points and twelve secondary connection points, it supports high-density branch wiring without requiring additional terminal blocks or junction hardware. It meets CE, CSA, RoHS, and UL Listed standards, making it appropriate for both domestic and export installations.

Key Features

• Single-pole design rated 620 amps for aluminium and 760 amps for copper conductors
• 600 VAC voltage rating suitable for commercial and industrial distribution
• 2 primary connection points and 12 secondary connection points
• Phenolic housing provides strong dielectric insulation
• Meets CE, CSA, RoHS, and UL Listed standards

Compatibility

Designed as an OEM-style replacement or new-installation distribution block for single-pole, high-amperage branch circuit applications in electrical panels and enclosures rated up to 600 VAC.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before making any connections to the block. Verify that conductor material (aluminium or copper) is matched to the correct amperage rating before terminating wires. Use appropriately rated lugs and torque conductors to the connector manufacturer specifications.
