Square D 9036GG2C Float Switch Dpst Nema 1 575 Vac

Product Description

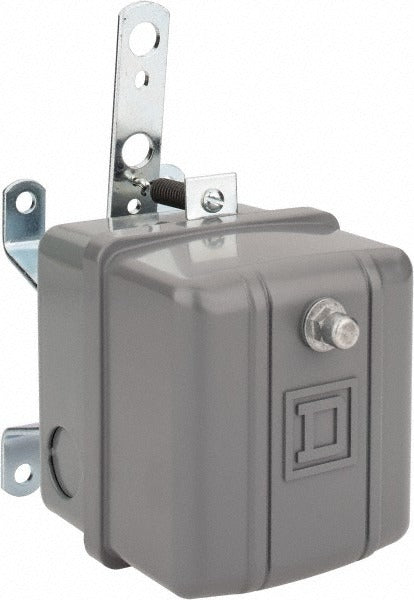

The SQUARE D 9036GG2C is a float switch designed for liquid level and pressure control applications in industrial and commercial electrical systems. It features a double-pole single-throw (DPST) contact form and a Line-Load-Load-Line terminal configuration, rated for operation at 575 VAC. The NEMA 1 enclosure rating makes it suitable for general-purpose indoor installations where the unit is protected from falling dirt and light contact. Licensed electricians and controls technicians install this switch as part of pump control, sump, tank level, or fluid management systems. It carries UL, CSA, CE, and RoHS certifications.

The 9036GG2C is applied in light industrial, commercial, and mechanical room environments where automatic float-based level switching is required. Typical installations include sump pumps, lift stations, water storage tanks, and process fluid reservoirs. The DPST configuration allows simultaneous switching of two circuits with a single float actuator, which suits pump start-stop and alarm circuit applications. The NEMA 1 rating limits use to clean, dry indoor locations free from dripping water, oil, or excessive dust.

Key Features

• DPST contact form enables simultaneous two-circuit switching from a single float actuation
• 575 VAC rating supports use on higher-voltage three-phase control circuits
• Line-Load-Load-Line terminal layout simplifies series wiring in pump control panels
• NEMA 1 enclosure rated for general-purpose indoor installations
• Certified to UL 508, UL Listed File E12158, CSA File LR25490, CE, and RoHS standards

Compatibility

Designed as an OEM-style replacement float switch for general-purpose indoor liquid level and pressure control applications in residential and light commercial pump systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit before making any wiring connections. Verify that the supply voltage and circuit ampacity are compatible with the switch ratings before mounting. The NEMA 1 enclosure is not suitable for wet, outdoor, or wash-down locations — use an appropriately rated enclosure if moisture exposure is possible.
