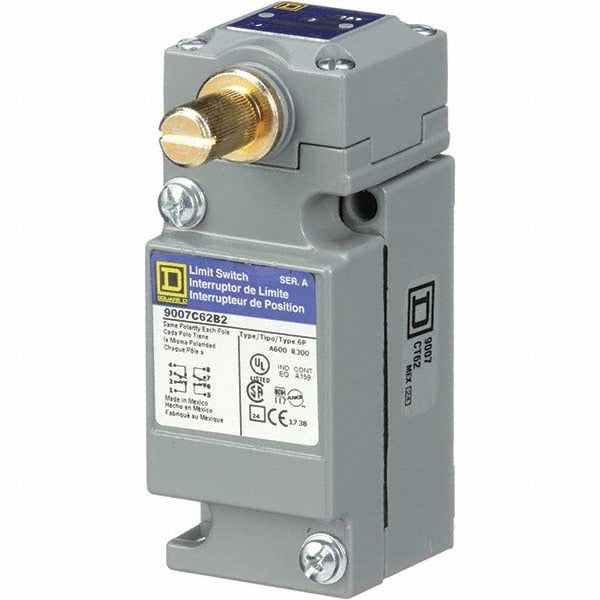

Square D 9007C62B Limit Switch Dpdt 2NC/2NO Rotary Head

Product Description

The SQUARE D 9007C62B is a general purpose limit switch rated for double-pole double-throw (DPDT) operation with a 2NC/2NO contact configuration. It features a rotary head actuator and is rated for up to 600 volts, making it suitable for industrial and commercial control circuits that require reliable position sensing or mechanical switching. The body is constructed of zinc for durability in demanding environments. Licensed electricians and industrial controls technicians are the primary installers of this device.

This limit switch is used in applications where mechanical position detection is required, such as conveyor systems, machine tool controls, door and gate position sensing, and other automated equipment. The rotary head actuator accommodates a range of cam and lever arrangements, providing flexibility in mounting orientation and trip-point adjustment. It is suited for both new installations and replacement applications in industrial control panels and field-mounted enclosures.

Key Features

• DPDT contact form with 2NC/2NO configuration for versatile switching logic
• Rotary head actuator with 4.2-inch actuator length for adjustable trip-point positioning
• 600-volt rating supports a wide range of industrial control circuit voltages
• Zinc body construction for mechanical durability
• CE listed, CSA Certified, and UL Listed for compliance with common North American and international standards

Compatibility

Designed as an OEM-style replacement or new-installation general purpose limit switch for industrial control and automation systems requiring a DPDT rotary head actuator switch rated at 600 volts.

Installation Notes

Installation should be performed by a qualified electrician or industrial controls technician in accordance with applicable NEC requirements and local codes. De-energize and lock out the control circuit before removing or installing the switch. Ensure the actuator alignment with the cam or trip dog is verified before restoring power. Do not exceed the rated voltage or current specifications of the switch contacts.
