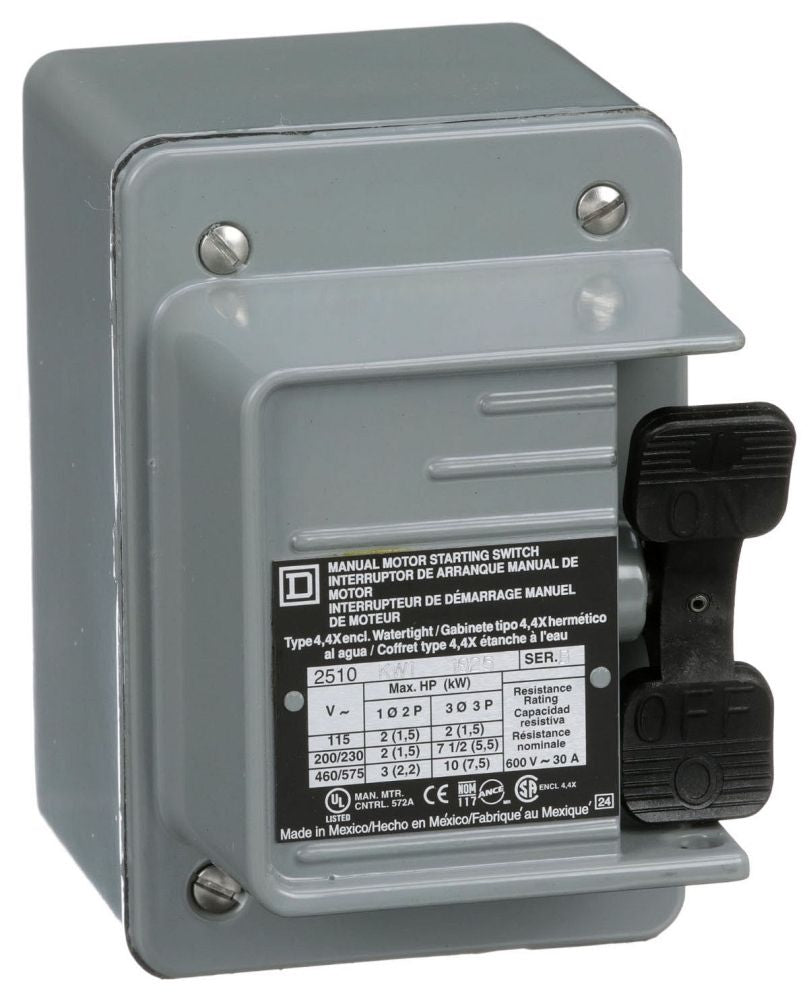

Square D 2510KW1 Manual Switch 600Vac K+Options

Product Description

Square D 2510KW1 is a manual switch designed for use in motor control applications. It operates at six hundred volts AC and supports a variety of options. This device is constructed from die-cast zinc alloy to ensure durability. It features a double pole operation type and is suitable for a wide range of electrical tasks.

• Die-cast zinc alloy construction
• Rated for 30 Amperes and six hundred volts AC
• NEMA 4 enclosure rating for outdoor and wet locations

Product Highlights

This switch is ideal for controlling motors and is fully compliant with UL, CSA, and CE standards, making it reliable for professional use.

Product Information

Standard Information

• Manufacturer: Square D Co.
• Model: 2510K

Technical Specifications

• Type: 1-Phase
• Voltage Rating: 600 VAC, 230 VDC
• Current Rating: 30 Amperes
• Dimensions: 2 3/4 inches W x 4 9/16 inches D x 4 3/8 inches H
• HP at 240 V: 2 HP
• HP at 120 V: 2 HP
• HP at 480 V: 3 HP
• HP at 600 V: 3 HP
• Approval: UL, CSA, CE
