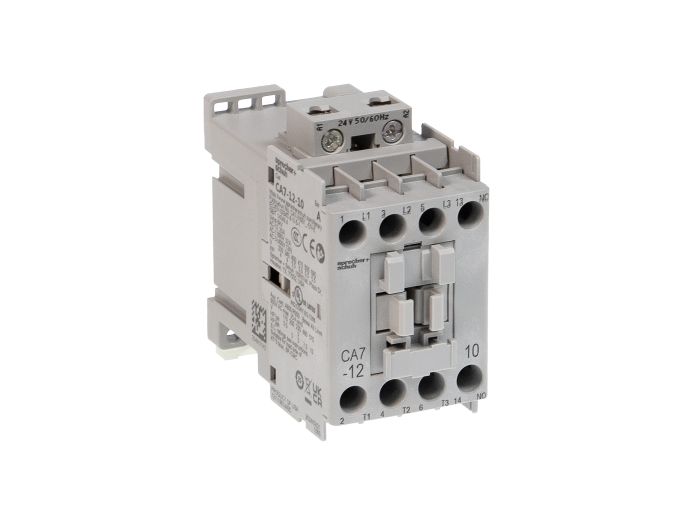

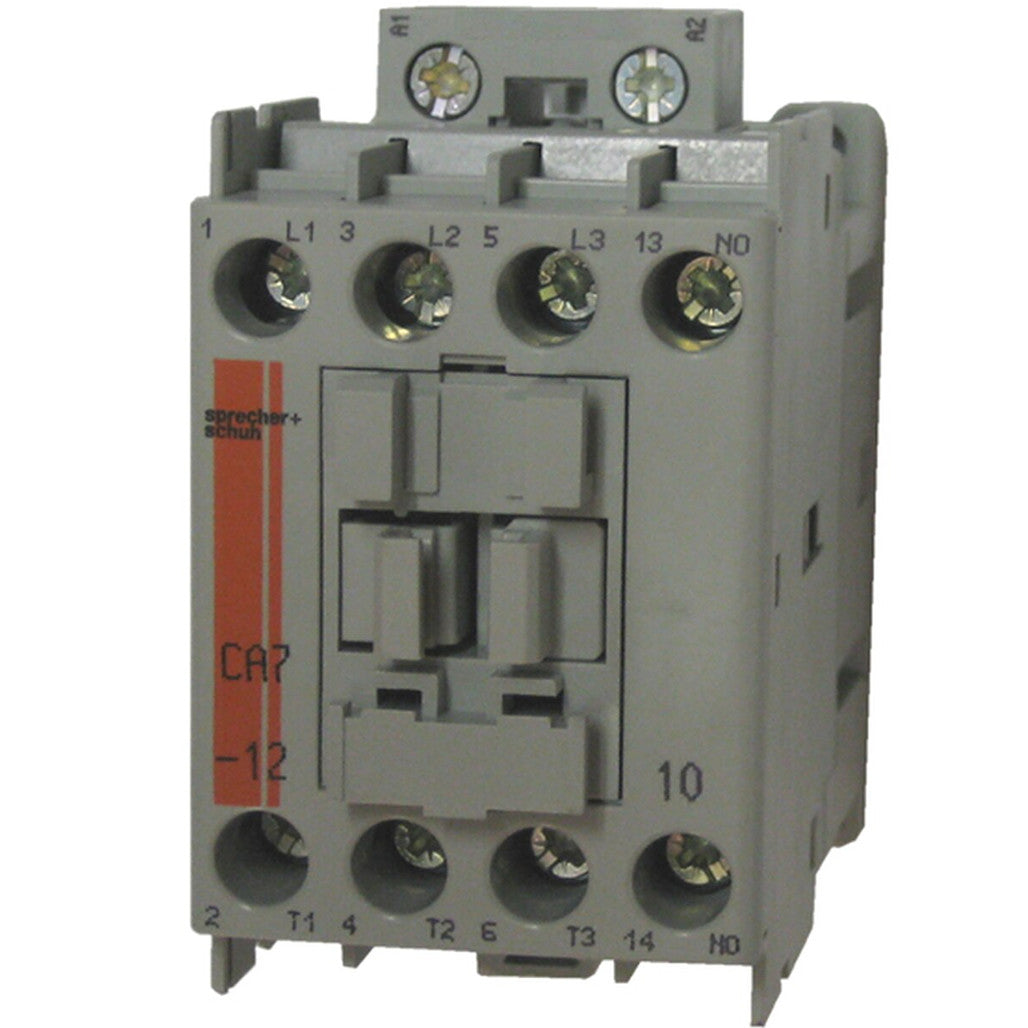

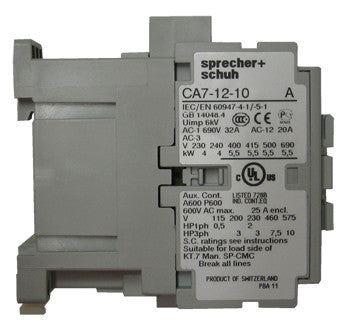

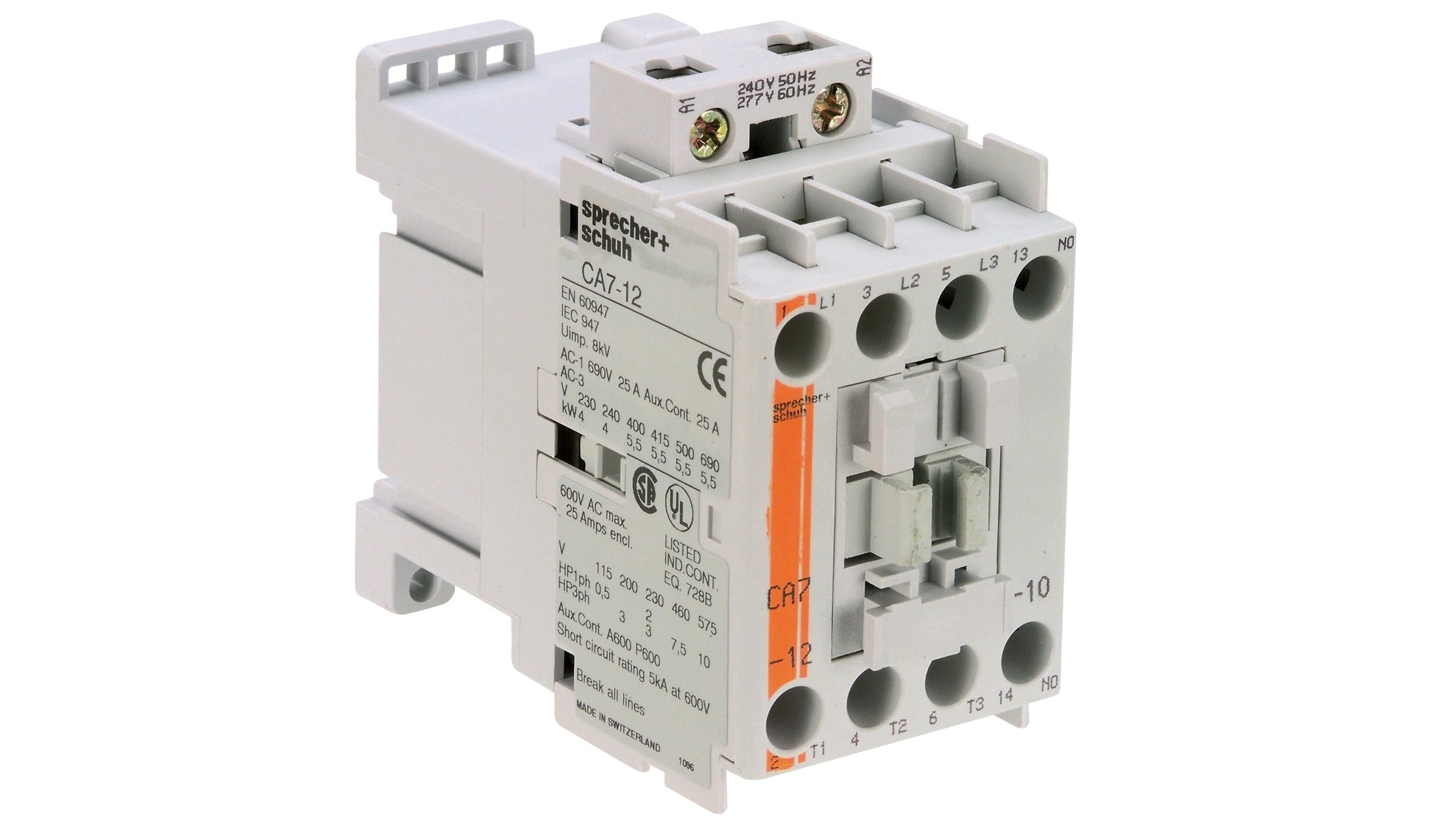

Sprecher + Schuh CA7-12-10-24Z Contactor 12 AMP

Product Description

The Sprecher + Schuh CA7-12-10-24Z is a 12 AMP AC-3 (32 AMP AC-1) IEC contactor with 1 normally open (N.O.) auxiliary contact and a 24v 50/60Hz AC rated coil. This 3-pole contactor is rated for 3 H.P. at 230 volt and 7.5 H.P. at 460 volt 3-phase, has screw terminals, and mounts on 35MM DIN rail.

• Space-saving design combines performance and reliability.
• IEC design is dimensionally among the smallest devices in the industry.
• Designed to reduce electrical arcing.

Product Highlights

The CA7 series features mechanically linked contacts and is UL Listed, CSA Approved, carries the CE Mark, and meets IEC 60947-1 requirements.

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: CA7-12-10-24Z

Technical Specifications

• Coil Voltage: 24 VAC
• AMP Rating: 12 AMP AC-3, 32 AMP AC-1
• Horsepower: 7.5 H.P. @ 460 volt, 3 H.P. @ 230 volt
• Auxiliary Contact: 1NO
• Terminals: Screw
• Manufacturer Part Number: 22-301-401-44
• Manufacturer: Sprecher + Schuh
• Product Series: CA7
• Description: IEC Contactor 12 A
• Type: AC Non-Reversing IEC
• Coil Type: Non Latching
• Poles: 3
• Frame Size: CA7
• Termination: Screw
• General Purpose (AC1): 32 A
• UL Motor Switching (AC3): 12 A
• Approvals: CCC, CSA, cULus
• Current Type: AC
• Voltage: 24 V
• Features: Non-Reversing
• Series: CA7
• Manufacturer Name: Sprecher + Schuh
• UNSPSC: 39121529
• MPN: CA7121024Z
