Spirax Sarco 67188 S4A Separator

Product Description

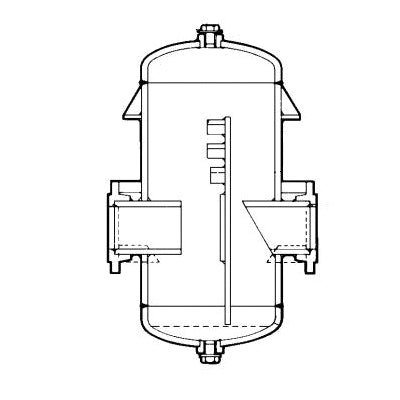

The Spirax Sarco 67188 S4A Separator is designed to enhance the quality of steam and compressed air systems. This unit removes moisture using a series of baffles, allowing suspended water droplets to fall by gravity into the drainage system. Key features include a body made from fabricated steel and compatibility with ANSI 150 flanges. With a nominal size of two and a half inches, the separator operates efficiently at pressures up to one hundred fifty psig and temperatures ranging from negative twenty to six hundred fifty degrees Fahrenheit.

• Improves steam quality by removing moisture
• Durable fabricated steel body
• ANSI 150 flange compatibility

Product Highlights

This moisture separator effectively enhances the performance of steam systems, ensuring that equipment receives high-quality steam or air.

Product Information

Standard Information

• Brand: Spirax Sarco
• MPN: 67188

Technical Specifications

• Body Material: Fabricated Steel
• Dimensions: 22.5 in L x 9.4 in H
• Domestic/Import: Domestic
• End Style: ANSI 150 Flange
• Nominal Size: 2-1/2 in
• Pressure Rating: 150 psig
• Series: S4A
• Temperature Rating: -20 to 650 deg F
