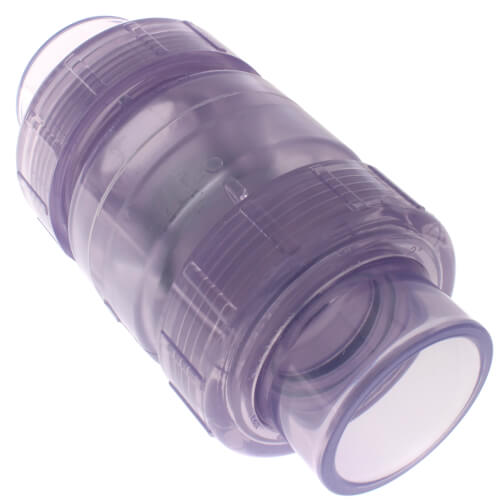

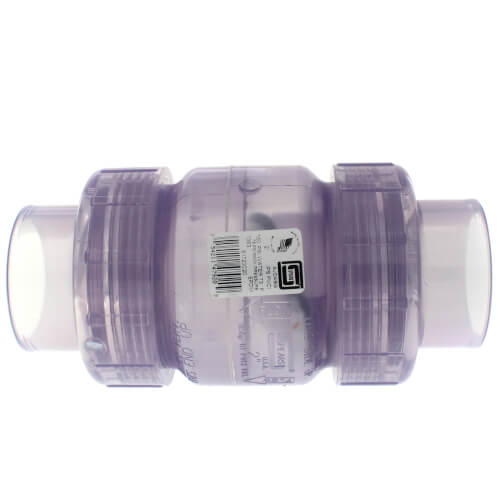

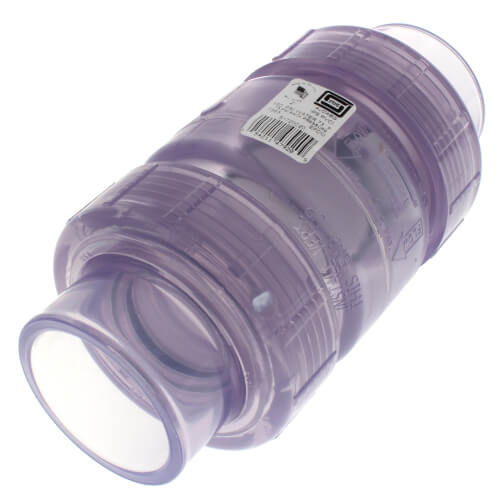

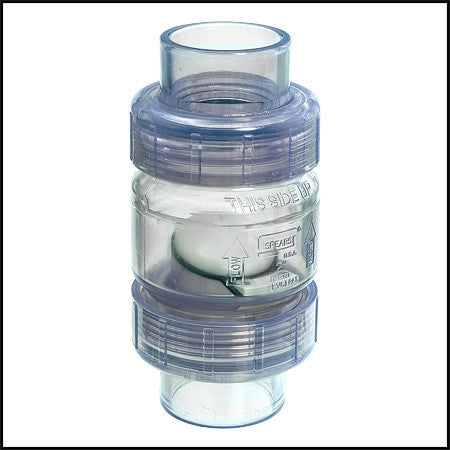

Spears S1720C20 2 PVC CL True Union Utility Swing Check Valve Socket EPDM

Product Description

The Spears S1720C20 Utility Swing Check Valve is designed for landscape, irrigation, pool, spa, aquaculture, OEM and general purpose applications. This True Union series valve features chemical and corrosion resistant PVC construction and a long life EPDM seat with weighted disc for full-flow and positive shutoff.

• Chemical and corrosion resistant PVC construction
• True union style for easy in-line replacement of sealed unit
• Engineered for maximum flow, quick response and positive shut-off

Product Highlights

This Spears swing check valve is suitable for horizontal or vertical installations and vacuum service. It has a pressure rating of 150/75 psi and is NSF approved.

Product Information

Standard Information

• Brand: Spears
• Manufacturer Part Number: S1720C20
• Country of Origin: Domestic

Technical Specifications

• Body Material: PVC
• End Style: Socket Welded
• Inlet to Outlet Length: 8-5/8 in
• Low Lead Compliance: No
• Media: Water
• Nominal Size: 2 in
• Pressure Rating: 150/75 psi
• Series: True Union
• Temperature Rating: 140 deg F
• Trim Material: EPDM
• Manufacturer: Spears
• Category: Valves Product
• Contruction: Socket
• Type: Utility Swing Check Valve
• Connections: Socket
• Seals: EPDM
• Size: 2"
