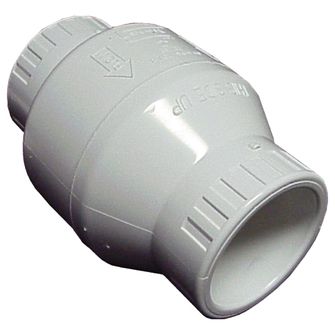

Spears S1580-20 2 PVC Utility Spring Check Valve Soc EPDM

Product Description

Spears S1580-20 is a two-inch PVC utility spring check valve designed for socket connections. This valve is made from PVC material, which is chemical and corrosion resistant. It operates under pressure ratings of 150 psi at room temperature and 75 psi at back pressure. The valve can handle temperatures up to 140 degrees Fahrenheit. With an inlet to outlet length of six and three-eighths inches, this valve is efficient and reliable for various plumbing applications.

• Constructed from durable PVC material
• Suitable for both horizontal and vertical installations
• Engineered for effective flow and positive shut-off

Product Highlights

This utility spring check valve is designed for maintenance-free operation, making it ideal for both residential and commercial plumbing systems.

Product Information

Standard Information

• Manufacturer: Spears
• Nominal Size: 2 inches

Technical Specifications

• Body Material: PVC
• Trim Material: EPDM
• End Style: Socket
• Inlet to Outlet Length: 6-3/8 inches
• Pressure Rating: 150/75 psi
• Temperature Rating: 140 degrees Fahrenheit
• Domestic/Import: Domestic
