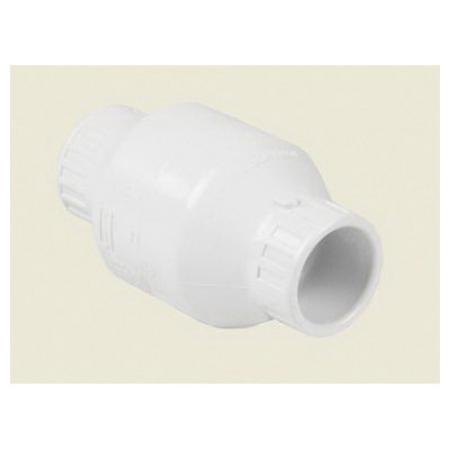

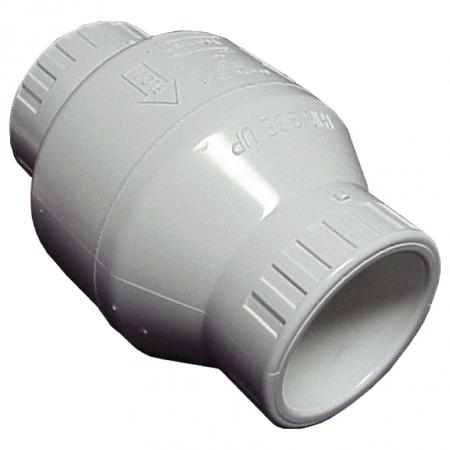

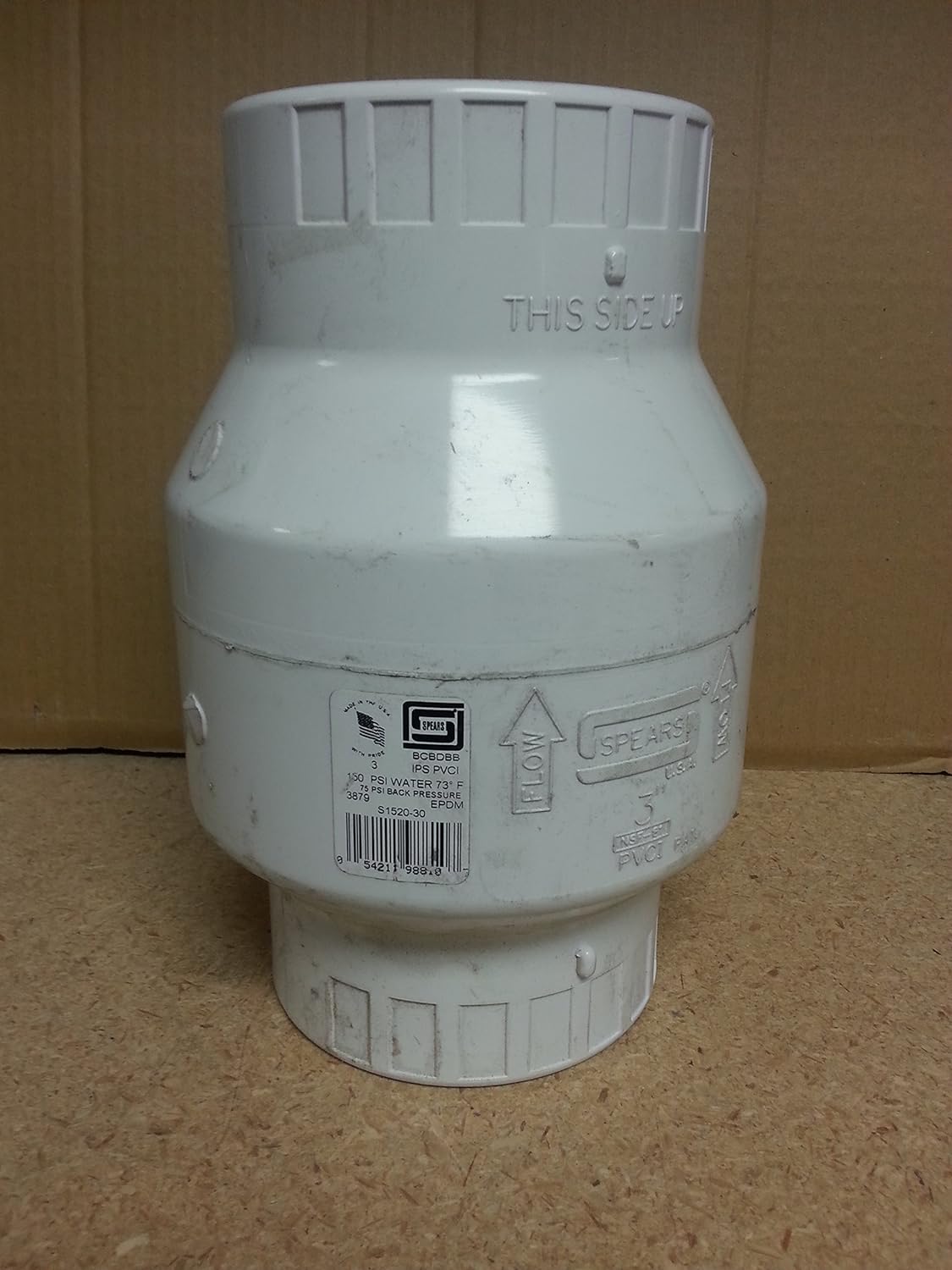

Spears S1520-30 3 PVC Swing Check Valve

Product Description

The Spears S1520-30 is a three-inch PVC swing check valve designed for efficient fluid flow control. It features socket connections and is suitable for various applications including irrigation, aquaculture, and pool systems.

• Manufactured from durable PVC material
• Designed with EPDM trim for longer life
• High flow capacity with a compact design

Product Highlights

This valve is versatile and can be installed in both horizontal and vertical positions. It ensures a positive shut-off and is engineered for maximum flow.

Product Information

Standard Information

• Manufacturer: Spears
• Valve Type: Swing Check Valve

Technical Specifications

• Body Material: PVC
• Media: Water
• Pressure Rating: 150/75 psi
• Temperature Rating: 140 deg F
• End Style: Socket Welded
• Nominal Size: 3 inches

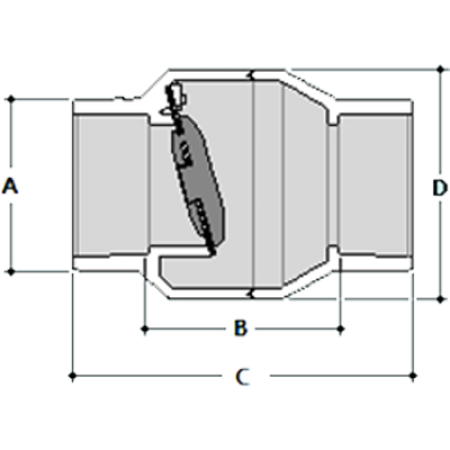

• Inlet to Outlet Length: 8-7/16 inches
• Dimensions: 5-3/4 inches height
• Low Lead Compliance: No
