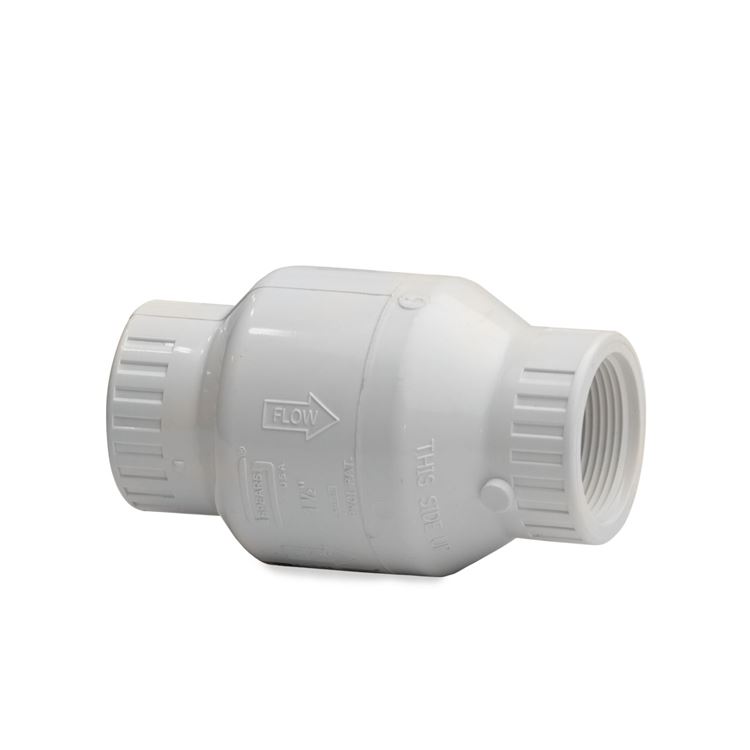

Spears S1520-05 1/2 PVC Utility Swing Check Valve Socket EPDM

Product Description

The Spears S1520-05 is a 1/2 inch PVC utility swing check valve with socket ends and EPDM trim. This valve is designed to prevent backflow in various plumbing applications. It operates effectively at a pressure rating of 150 psi and a temperature rating of 140 degrees Fahrenheit.

• Manufactured from chemical and corrosion-resistant PVC.
• Includes a maintenance-free sealed unit.
• Suitable for both horizontal and vertical flow installations.

Product Highlights

This utility swing check valve is built for durability and reliability in irrigation, pool and spa, and aquaculture applications.

Product Information

Standard Information

• Manufacturer: Spears
• Part Number: S1520-05

Technical Specifications

• Body Material: PVC
• Color: White
• Dimensions: 2-1/8 inches high
• End Style: Socket Welded
• Inlet to Outlet Length: 4-3/32 inches
• Low Lead Compliance: No
• Media: Water
• Nominal Size: 1/2 inch
• Pressure Rating: 150 psi
• Temperature Rating: 140 degrees Fahrenheit
• Trim Material: EPDM
