Product Description

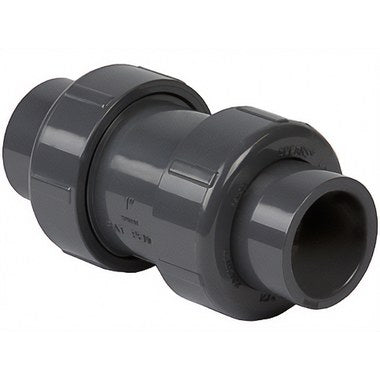

The Spears 4539-010C is a one inch CPVC check valve designed for true union applications. This valve features a socket/threaded design with FKM softgoods. The valve can withstand a maximum pressure of 235 PSI and operates optimally at a temperature of seventy-three degrees Fahrenheit. It is constructed from CPVC material known for its chemical and corrosion resistance, making it suitable for industrial applications.
- Chemical and corrosion resistant CPVC construction
- Suitable for horizontal and vertical installations
- Fully serviceable with replaceable components
Product Highlights
This check valve meets ASTM D1784 and F1970 standards. Its design allows for easy inline exchanges without the need for additional tools or equipment.
Product Information
Standard Information
-
Brand: Spears
-
Part Number: 4539-010C
Technical Specifications
-
Size: 1 inch
-
Material: CPVC
-
End Connection: Socket/Threaded
-
Pressure Rating: 235 PSI
-
Seal Material: FKM
-
Temperature Rating: 73 degrees F
-
Length: 5-3/16 inches
-
Shipping Weight: 3.000 lbs
-
Application: Industrial
