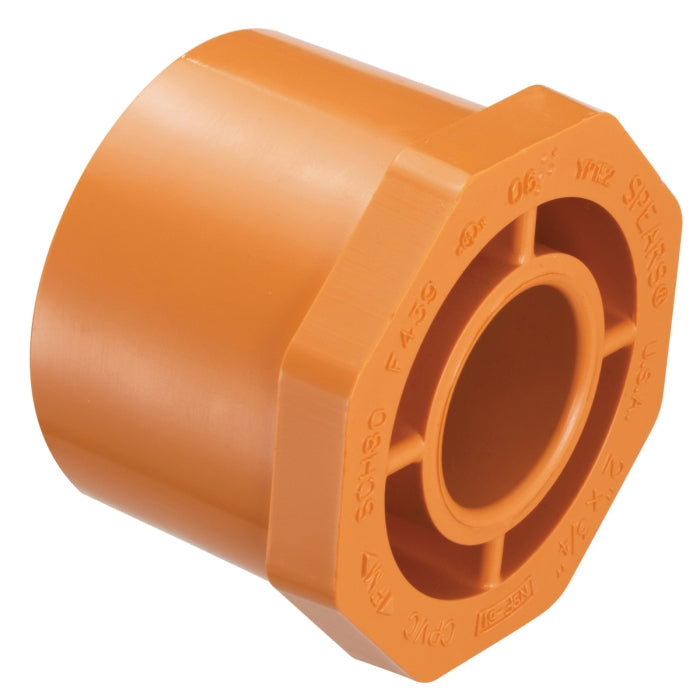

Spears 4237-131 1X3/4 CPVC FG RED BUSH SPIGO

Product Description

The Spears 4237-131 is a CPVC flame guard bushing designed for fire sprinkler systems. This bushing features a spigot x socket connection in a nominal size of one by three-fourths inches. Made from corrosion-resistant CPVC material, it offers superior flow characteristics and lower friction losses during operation. This product is easy to install and compatible with various tools.

• Corrosion-resistant CPVC material
• Pressure rated for up to 175 psi
• Temperature rated for up to 150 degrees Fahrenheit

Product Highlights

Spears flame guard bushings are ideal for use in fire sprinkler systems, providing an effective alternative to metal connections. They are UL listed and compliant with NFPA standards, ensuring reliability and safety in fire protection applications.

Product Information

Standard Information

• Manufacturer: Spears
• Material: CPVC

Technical Specifications

• Nominal Size: 1 x 3/4 inches
• Connection Type: Spigot x Socket
• Length: 1-1/4 inches
• Pressure Rating: 175 psi
• Temperature Rating: 150 degrees Fahrenheit
• Color: Orange
• Method of Manufacture: Molded
• Standards/Approvals: ASTM D-1784/F-438/F-439, NFPA 13/13D/13R, UL Listed
