Spears 2622-020C 2 CPVC Utility Ball Valve SOC EPDM

Product Description

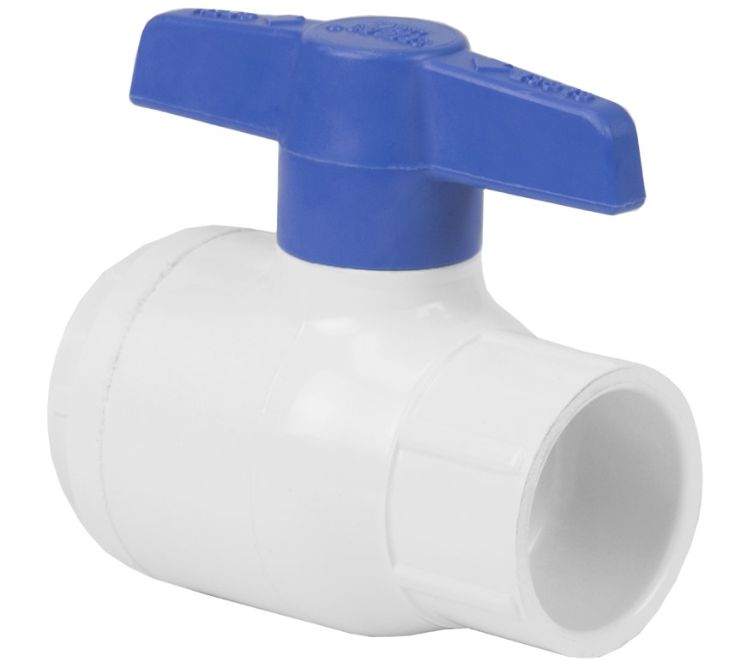

The Spears 2622-020C is a two-inch CPVC utility ball valve. This valve features socket connections and is designed to handle a maximum pressure of 150 psi. It has a temperature rating of 200 degrees Fahrenheit. The ball is made of CPVC material, ensuring durability and reliable operation. This model includes a T-handle actuator for easy operation.

• 2-inch nominal size
• Socket end style
• EPDM softgoods for enhanced sealing

Product Highlights

This product is ideal for a variety of plumbing applications, including residential and commercial installations. The construction provides high resistance to corrosion and chemical damage.

Product Information

Standard Information

• Manufacturer: Spears
• Part Number: 2622-020C

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: CPVC
• Body Material: CPVC
• Color: Gray
• Domestic/Import: Domestic
• End Style: Socket
• Inlet to Outlet Length: 5-3/16 inches
• Nominal Size: 2 inches
• Pressure Rating: 150 psi
• Softgoods Material: EPDM
• Temperature Rating: 200 degrees Fahrenheit
• Top to Inlet Center: 3-7/8 inches
• Trim Material: CPVC stem and PTFE seat
