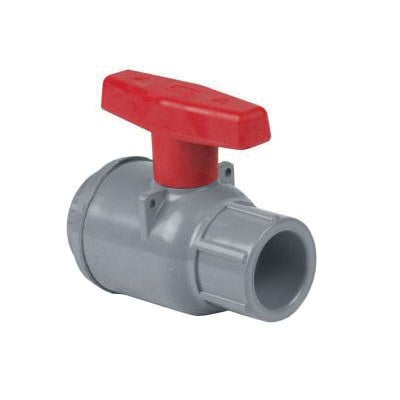

SPEARS 2122-040C Compact Regular Ball Valve 4 in Socket

Product Description

The SPEARS 2122-040C is a quarter-turn shut-off valve suitable for chemical, industrial, and OEM applications. It is designed to provide a maintenance-free installation. This compact ball valve features socket end connectors and has a nominal size of four inches. The body is constructed from CPVC with EPDM softgoods, ensuring durability in various conditions.

• High impact polypropylene handle
• Factory-adjusted sealed unit
• Full SCH 80/XH bore

Product Highlights

This valve is ideal for those seeking reliable performance in demanding environments.

Product Information

Standard Information

• Actuator Type: T-Handle
• Domestic/Import: Domestic

Technical Specifications

• Ball Material: CPVC
• Body Material: CPVC
• End Style: Socket
• Inlet to Outlet Length: 10-5/32 inches
• Nominal Size: 4 inches
• Pressure Rating: 150 psi
• Softgoods Material: EPDM
• Temperature Rating: 200 degrees F
• Top to Inlet Center: 6-5/8 inches
• Trim Material: CPVC Stem and PTFE Seat
• Type: Compact
