Product Description

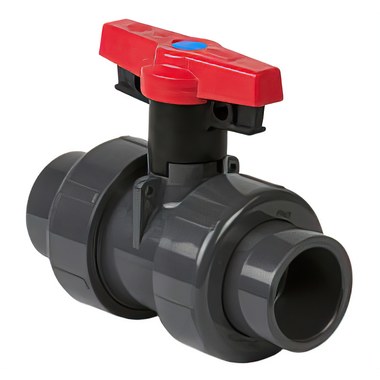

Spears 1829-012C is a ball valve designed for industrial applications. This valve features a true union design with a 1-1/4 inch nominal size. It connects via socket and FNPT, built from CPVC material, making it suitable for water and various industrial uses.
- Pressure rating of 235 psi
- EPDM O-ring for reliable sealing
- Compatible with horizontal and vertical installations
Product Highlights
Spears True Union 2000 series allows easy maintenance and modifications without having to remove the entire valve from the pipeline.
Product Information
Standard Information
-
Brand: Spears
-
Type: True Union Industrial Ball Valve
Technical Specifications
-
Size: 1-1/4 inches
-
Body Material: CPVC
-
Ball Material: CPVC
-
End Connection: Socket and FNPT
-
Seal Material: EPDM
-
Pressure Rating: 235 psi
-
Temperature Rating: 200 degrees Fahrenheit
-
Inlet to Outlet Length: 5-13/16 inches
-
Top to Inlet Center: 3-5/8 inches
-
Shipping Weight: 3.000 lbs
