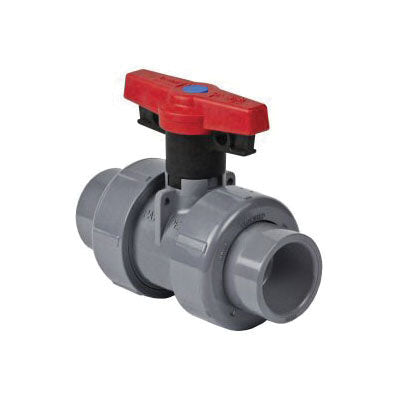

Spears 1829-010C 1 CPVC True Union 2000 Industrial Ball Valve SOC/FPT EPDM

Product Description

The Spears 1829-010C is a one inch CPVC True Union 2000 industrial ball valve designed for socket and threaded connections. This valve is capable of handling a pressure rating of two hundred thirty-five psi and a temperature rating of two hundred degrees Fahrenheit. Its T-handle actuator allows for easy operation and control.

• Features chemical and corrosion-resistant construction
• Suitable for vertical and horizontal installations
• Includes EPDM O-ring for enhanced sealing

Product Highlights

This Spears valve provides reliable service in industrial applications due to its durable design and materials.

Product Information

Standard Information

• Brand: Spears
• Type: Industrial Ball Valve

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: CPVC
• Body Material: CPVC
• Pressure Rating: 235 psi
• Nominal Size: 1 in
• Temperature Rating: 200 deg F
• Series: True Union 2000
• Inlet to Outlet Length: 5-7/32 in
• Top to Inlet Center: 3-1/8 in
• Trim Material: CPVC Stem and PTFE Seat
• Softgoods Material: EPDM
