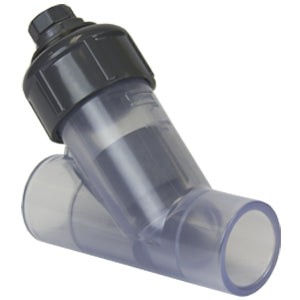

SPEARS 1622 Y-Check Valve Power 3/4 in

Product Description

The Spears Y-Check Valve, MPN 1622, is an angle-type check valve. It effectively prevents reverse flow through the use of a disc plug. Constructed from CPVC material, this valve is designed for both horizontal and vertical up-flow installations. Its socket end style simplifies connectivity and installation. This valve offers superior flow management compared to traditional ball check valves.

• Socket end style connection
• Made from CPVC for durability
• Ideal for horizontal or vertical applications

Product Highlights

The Spears Y-Check Valve features an easy-access cap for maintenance without removing the valve from service.

Product Information

Standard Information

• Brand: Spears
• MPN: 1622

Technical Specifications

• Nominal Size: 3/4 inches
• End Style: Socket
• Body Material: CPVC
• Softgoods Material: EPDM/FKM O-Ring, Seat
• Temperature Rating: 200 degrees F
• Pressure Rating: 150 psi
• Inlet to Outlet Length: 4 inches
• Top to Inlet Center: 3-5/32 inches
• Trim Material: CPVC
• Weight: 0.51 lbs
• Country of Origin: US
• Standards and Approvals: ASTM D1784/F1970
