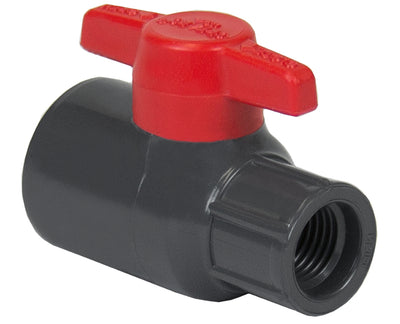

Spears 1521-003C 3/8 CPVC Lab Valve THD EPDM

Product Description

The Spears 1521-003C is a 3/8 inch CPVC lab valve featuring a thread design with EPDM seals. This valve is built to handle 150 psi at temperatures up to 200 degrees Fahrenheit, making it suitable for various laboratory applications. It consists of a CPVC body, stem, and a PTFE seat trim, ensuring durability and resistance against chemicals and corrosion.

• Material: CPVC with EPDM seals
• Temperature: 200 degrees Fahrenheit, Pressure: 150 psi
• Actuator Type: T-Handle

Product Highlights

This valve offers a reliable performance in laboratory settings, ensuring a secure seal and ease of operation.

Product Information

Standard Information

• Brand: Spears
• MPN: 1521-003C

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: CPVC
• Body Material: CPVC
• O-Ring: Valve & Adapters Threaded Ends
• Nominal Size: 3/8 inch
• Pressure Rating: 150 psi
• Temperature Rating: 200 degrees Fahrenheit
• Inlet to Outlet Length: 2-3/16 inches
• Top to Inlet Center: 1-1/4 inches
• Domestic/Import: Domestic
