Spears 1521-003 3/8 PVC Lab Valve THD EPDM

Product Description

The Spears 1521-003 is a 3/8 inch PVC Lab Valve. This valve features a FNPT end style and is suitable for various applications, including laboratory and industrial use. It can handle pressures up to 150 psi and operate at temperatures up to 140 degrees Fahrenheit. The valve includes a T-Handle actuator for easy operation.

• Constructed from chemical-resistant PVC
• Maintenance-free sealed unit
• Compatible with various connection types

Product Highlights

This valve combines durability with ease of use, making it ideal for precise flow control in laboratory environments.

Product Information

Standard Information

• Brand: Spears
• MPN: 1521-003

Technical Specifications

• Nominal Size: 3/8 inch
• Body Material: PVC
• Ball Material: PVC
• Softgoods Material: EPDM
• Pressure Rating: 150 psi
• Temperature Rating: 140 degrees Fahrenheit

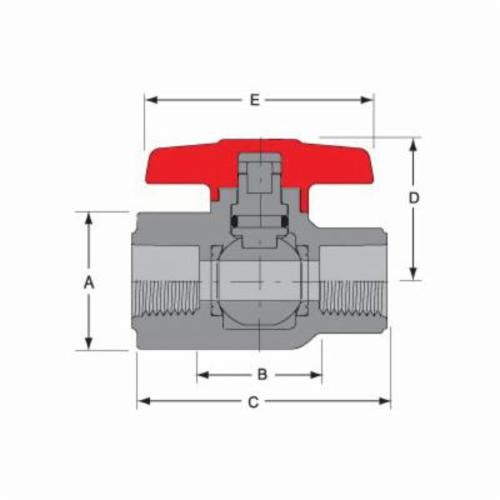

• Inlet to Outlet Length: 2-3/16 inches
• Top to Inlet Center: 1-1/4 inches
• Actuator Type: T-Handle
• End Style: FNPT
• Trim Material: PVC Stem and PTFE Seat
