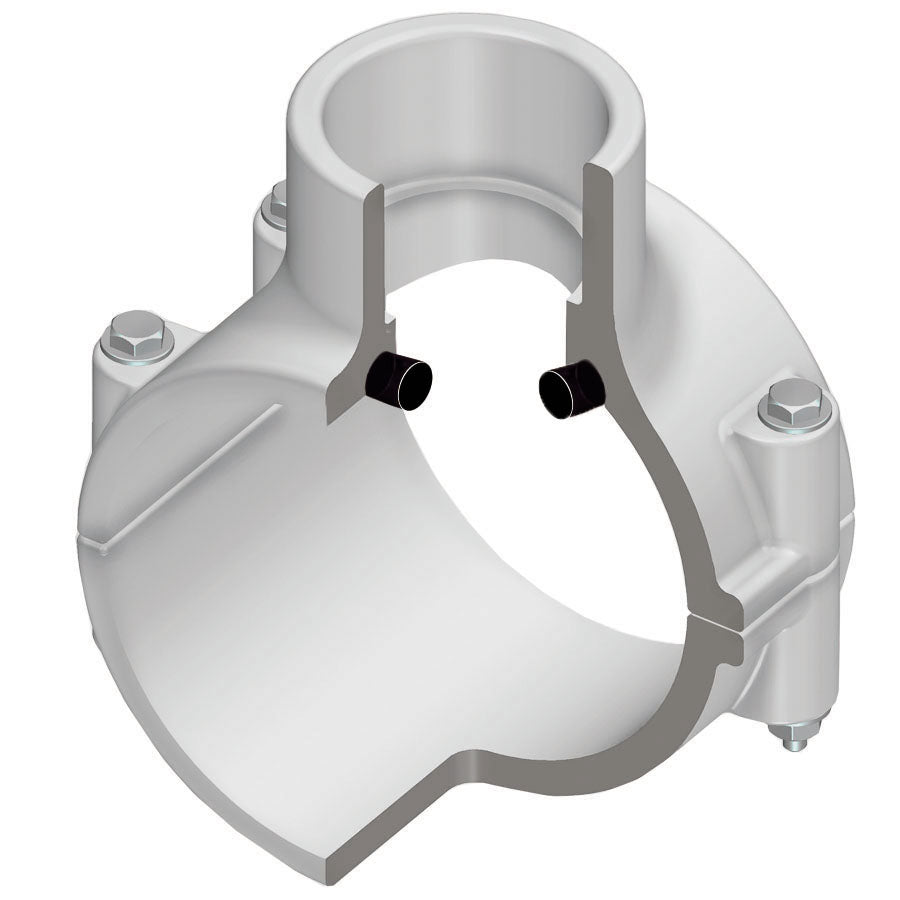

SPEARS 1061996 4 x 1 Inch PVC Clamp Saddle

Product Description

The SPEARS 1061996 is a two-piece clamp saddle fitting made of PVC. This fitting has a socket outlet with an EPDM gasket and comes with zinc-plated bolts. It is intended for use with Schedule 40 pipes.

• Constructed from PVC for durability.
• Equipped with a socket outlet and EPDM gasket.
• Compatible with Schedule 40 pipes.

Product Highlights

Reliable fitting designed for efficient plumbing applications.

Product Information

Standard Information

• Item: Saddle Clamp
• Gasket Material: EPDM

Technical Specifications

• Material: PVC
• Max. Pressure: 235 psi
• Max. Temp.: 73 degrees F
• Outlet Pipe Size: 1 inch
• Pipe Size: 4 inches
• Required Hole Size: 1 1/8 inches
• Schedule: 40
• Type: Two Piece
• Color: White
• Fitting Side A Nominal Pipe Size: 4 inches
• Fitting Side B Nominal Pipe Size: 4 inches
• Fitting Side C Gender: Female
• Fitting Side C Nominal Pipe Size: 1 inch
• Fitting Side C Type: Socket
• Maximum Operating Pressure: 150 psi @ 73 degrees F
• Overall Length: 5 13/16 inches
• Pipe Fitting Material: PVC
• Seal Material: EPDM
• Specific Fitting Shape: Saddle
• Standards: LPCB
