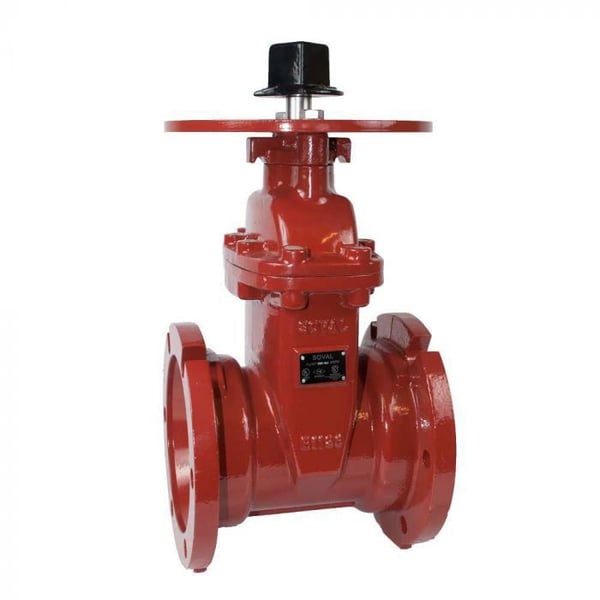

SOVAL 807IP-080 Resilient Seated Gate Valve

Product Description

The SOVAL 807IP-080 is a resilient seated gate valve that effectively manages fluid control. This valve belongs to the 807IP series and features an eight-inch nominal size with a mechanical joint end style. Constructed from ductile iron, it has stainless steel trim and EPDM softgoods. The valve is protected with a fusion-bonded epoxy coating ready to withstand pressures of up to 300 psi and temperatures from thirty-three to one hundred twenty-six degrees Fahrenheit. Additionally, it has an inlet to outlet length of twelve and a half inches and a top to inlet center measurement of twenty-one and seven-sixteenths inches.

• Features a non-rising stem.
• Incorporates triple O-ring stem seals.
• Includes a lifting lug built into the stuffing gland.

Product Highlights

Product Information

Standard Information

• Brand: SOVAL
• MPN: 807IP-080

Technical Specifications

• Body Material: Ductile Iron
• End Style: MJ
• Nominal Size: 8 inches
• Pressure Rating: 300 psi
• Temperature Rating: 33 to 126 degrees Fahrenheit
• Inlet to Outlet Length: 12 and 1/2 inches
• Top to Inlet Center: 21 and 7/16 inches
• Trim Material: Stainless Steel
• Softgoods Material: EPDM
• Type: Resilient Seated
• Series: 807IP
• Finish: Fusion Bonded Epoxy-Coated
