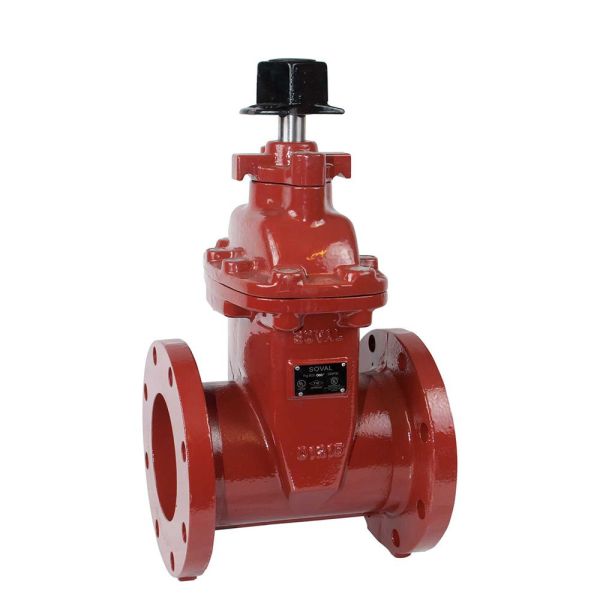

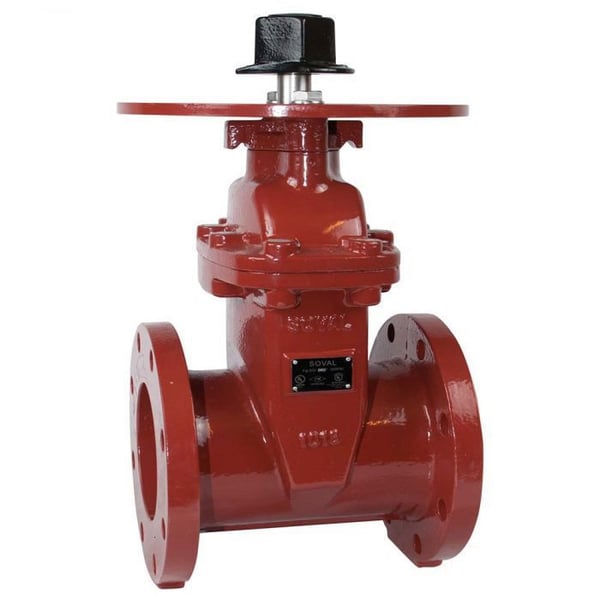

SOVAL 802IP-040 Resilient Seated Gate Valve 4 in

Product Description

The SOVAL 802IP-040 is a resilient seated gate valve designed for diverse applications. This valve has a nominal size of four inches and features a post indicator flanged end style. It is built with a ductile iron body and stainless steel trim, allowing it to handle a pressure rating of up to three hundred psi. The fusion bonded epoxy coating ensures corrosion protection while the EPDM softgoods enhance its durability.

• Non-rising stem design for effective operation
• Triple O-ring stem seals for enhanced sealing
• Manufactured according to AWWA C515-09 Standard

Product Highlights

This valve is suitable for both water and wastewater applications, making it versatile for various installations.

Product Information

Standard Information

• Manufacturer Part Number: 802IP-040
• Series: 802IP

Technical Specifications

• Nominal Size: 4 in
• End Style: Post Indicator Flanged
• Body Material: Ductile Iron
• Trim Material: Stainless Steel
• Softgoods Material: EPDM
• Pressure Rating: 300 psi
• Temperature Rating: 42 to 180 deg F
• Inlet to Outlet Length: 9 in
• Top to Inlet Center: 13-3/4 in
• Type: Resilient Seated
• Stem: Non-Rising Stem
• Stem Seal: Triple O-rings stem seal
• Flanges: ANSI B16.1 Class 125
• Corrosion protection: Fusion Bonded Epoxy Coated Interior and Exterior to AWWA C550 Standard
• Complies with: AWWA C515 Standard
