SOVAL 801-020F Gate Valve

Product Description

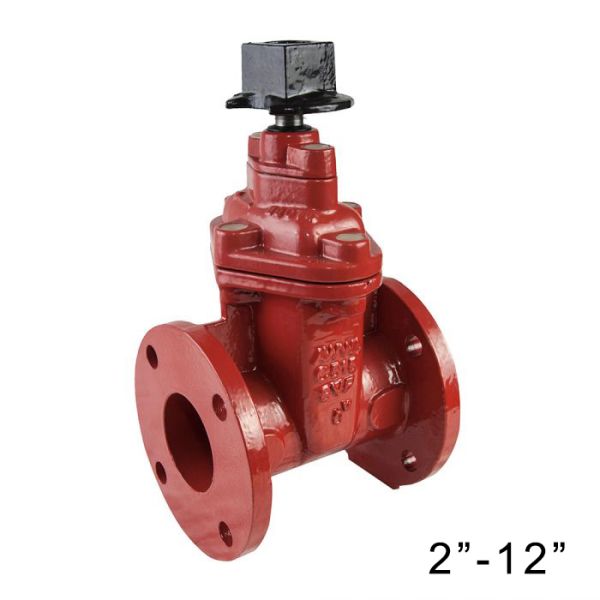

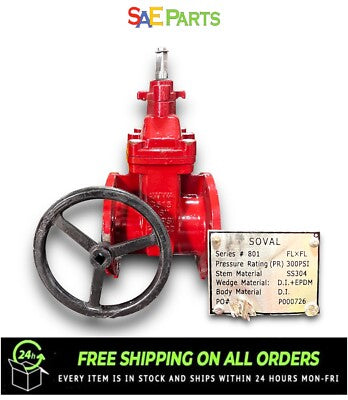

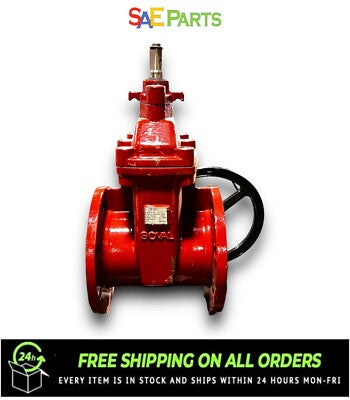

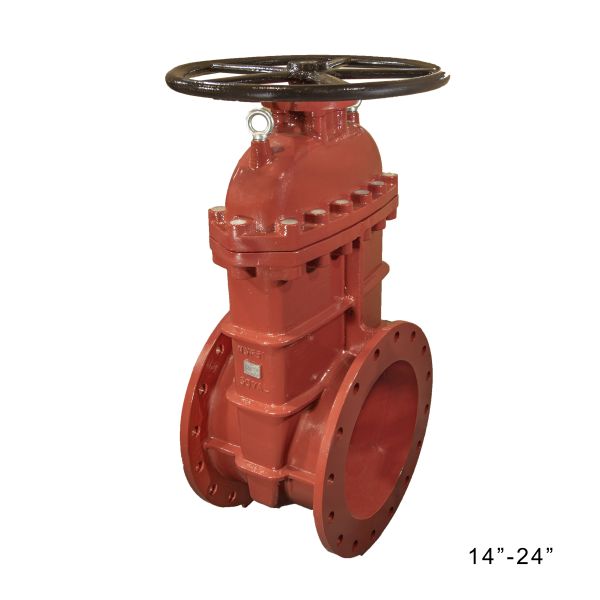

The SOVAL 801-020F Gate Valve is a resilient seated valve designed for reliability in various applications. Manufactured according to AWWA C515 standards, this valve features a body, bonnet, and wedge made from strong ductile iron. The wedge is encapsulated with EPDM rubber providing durability. It also includes stainless steel components for the stem and bolting, ensuring longevity.

• Meets AWWA C515 standard.
• Constructed with high-strength ductile iron.
• Fusion-bonded epoxy coating on interior and exterior surfaces.

Product Highlights

This gate valve operates manually and is suitable for water, oil, and gas services up to three hundred psi. With its fusion-bonded epoxy coating, it provides resistance to corrosion and wear. The valve is designed for both indoor and outdoor installations and operates effectively in temperatures ranging from four degrees Fahrenheit to one hundred eighty-five degrees Fahrenheit.

Product Information

Standard Information

• Brand: SOVAL
• Product Type: Resilient Wedge Non-Rising Stem

Technical Specifications

• Size: 2 inches
• WOG Rating: 300 psi
• Valve Operation: Manual
• Valve Class: Class 125
• Flanges: ANSI B16.1, Class 125
• Working Pressure: 300 psi
• Working Temperature: 4°F - 185°F
