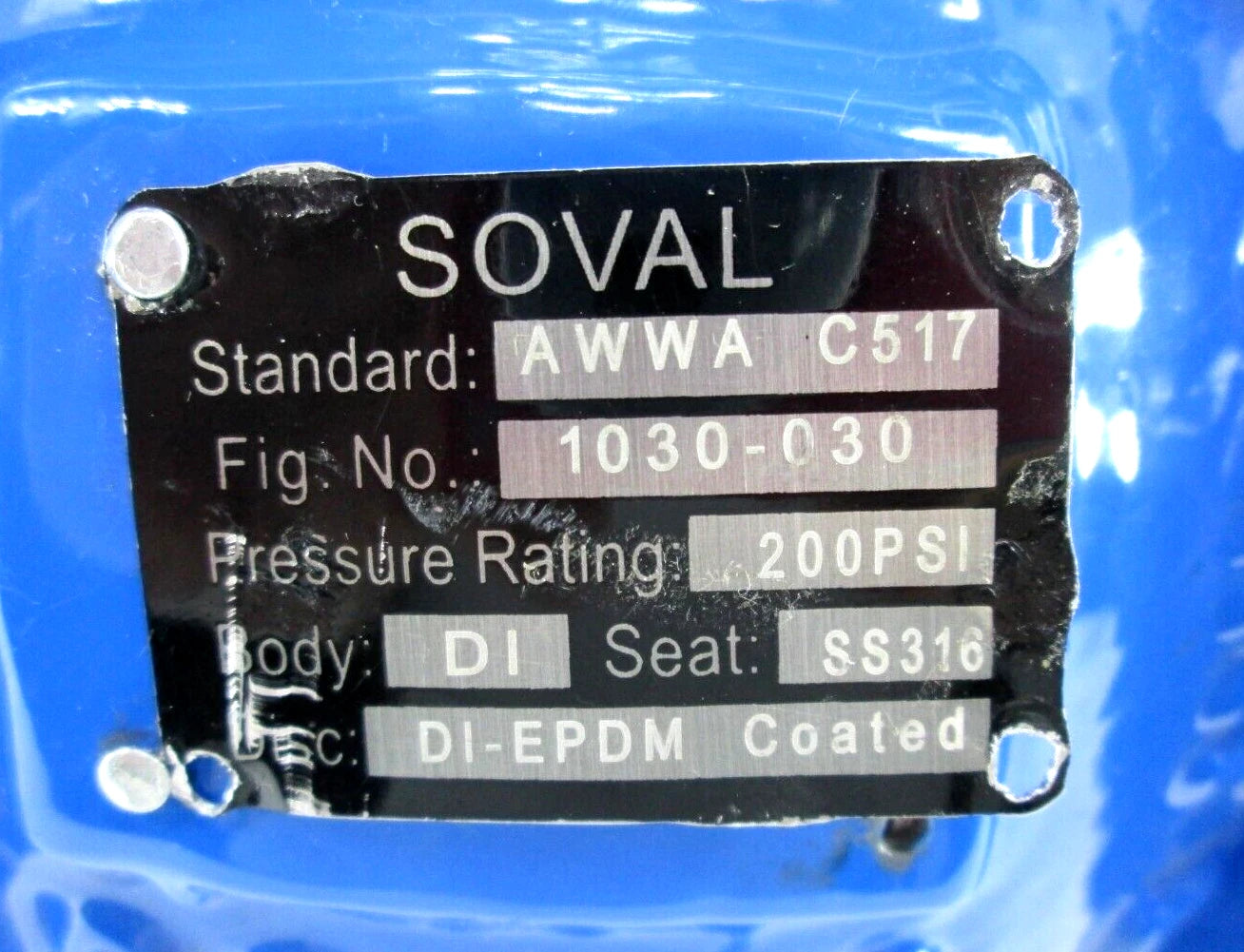

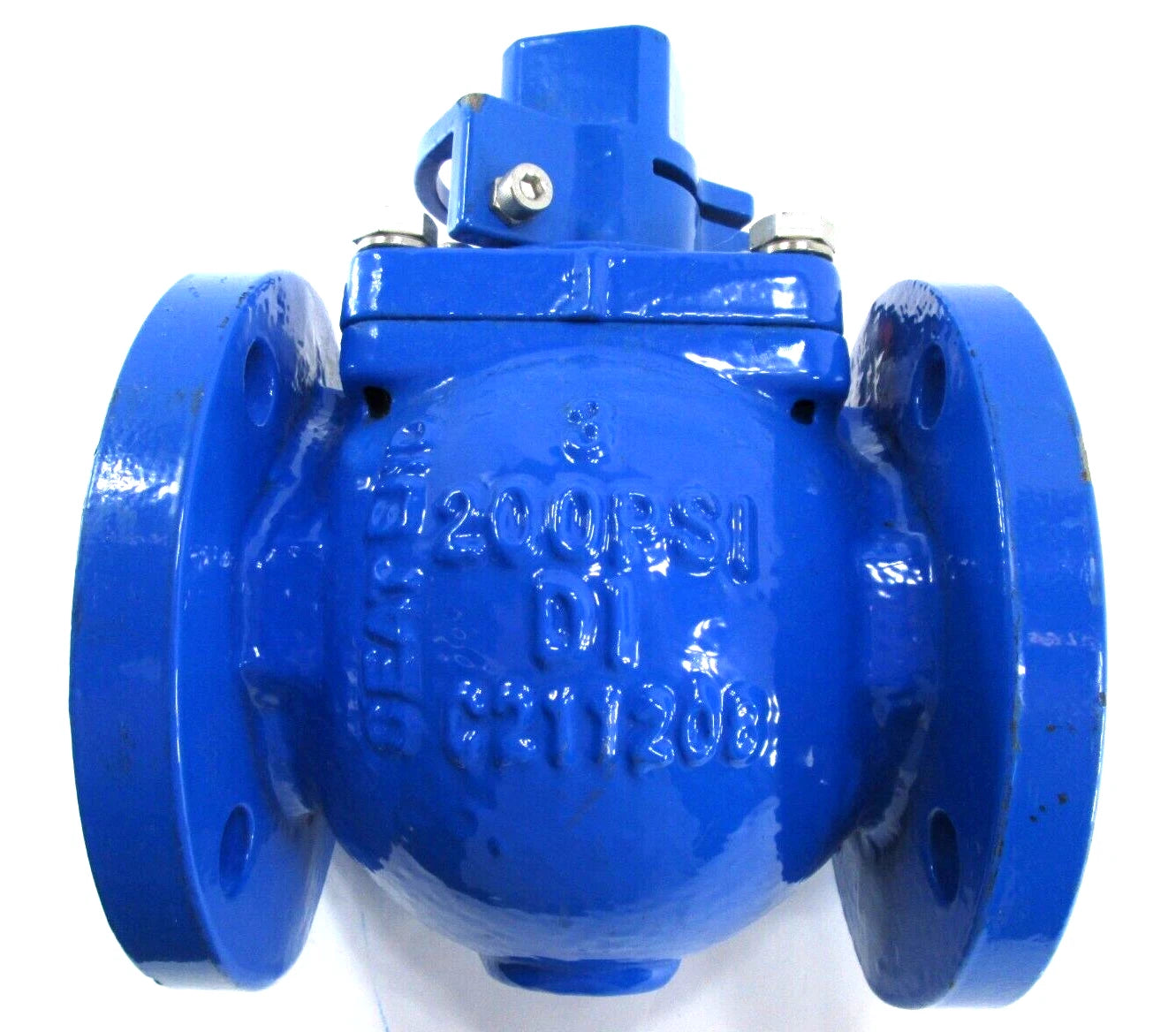

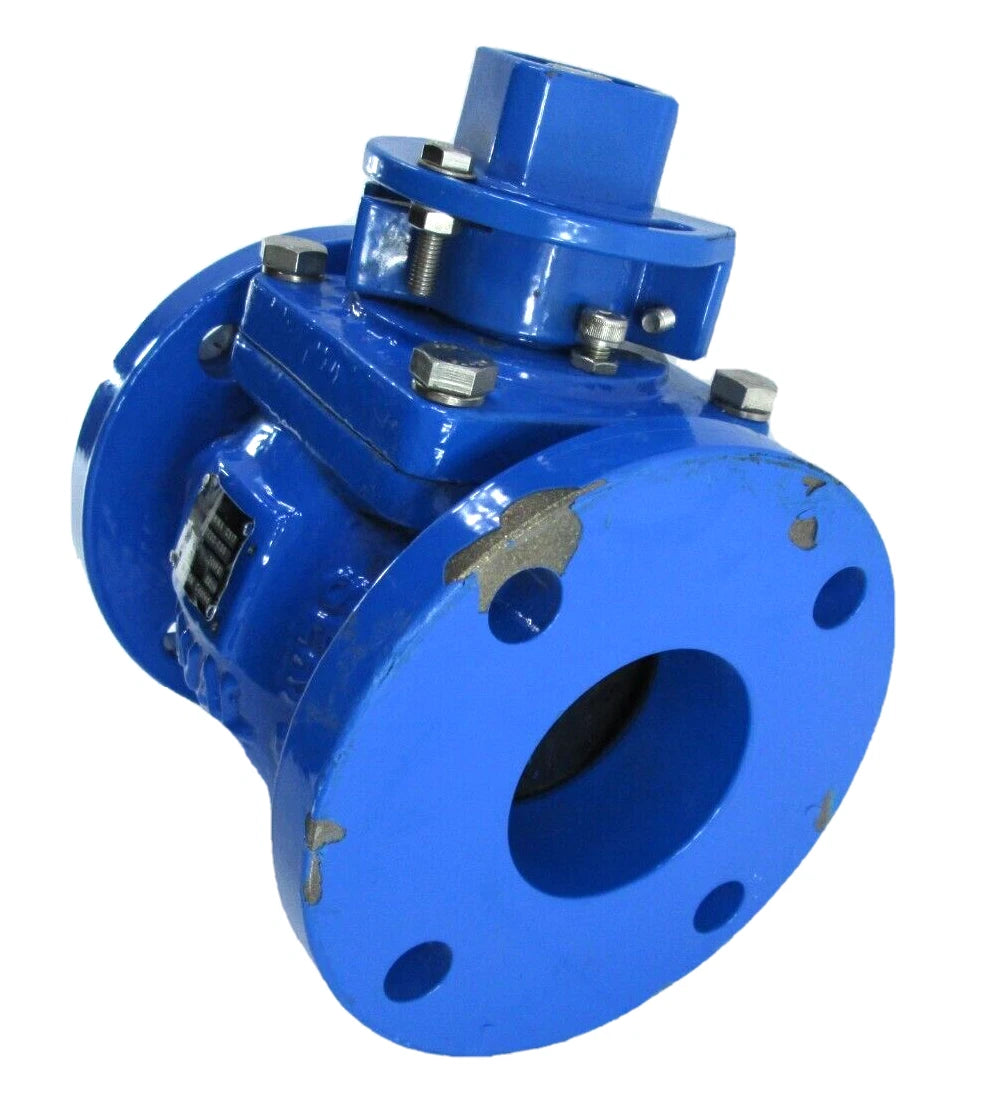

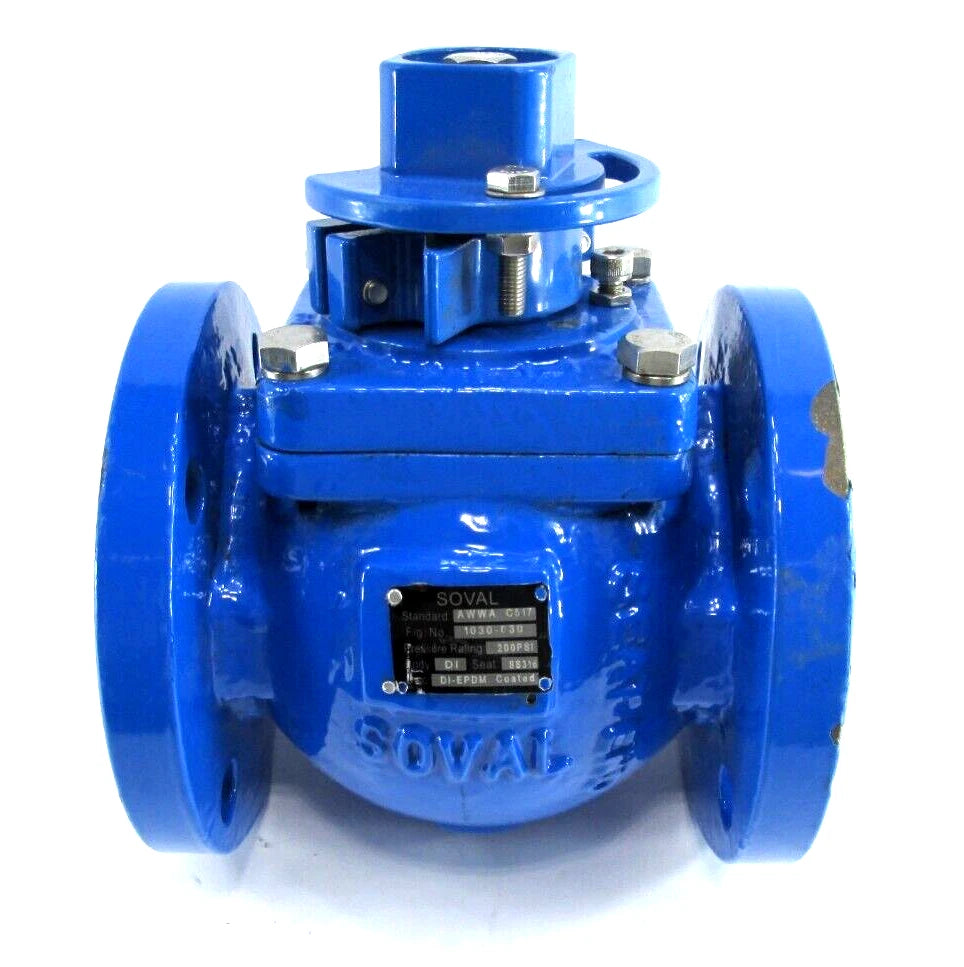

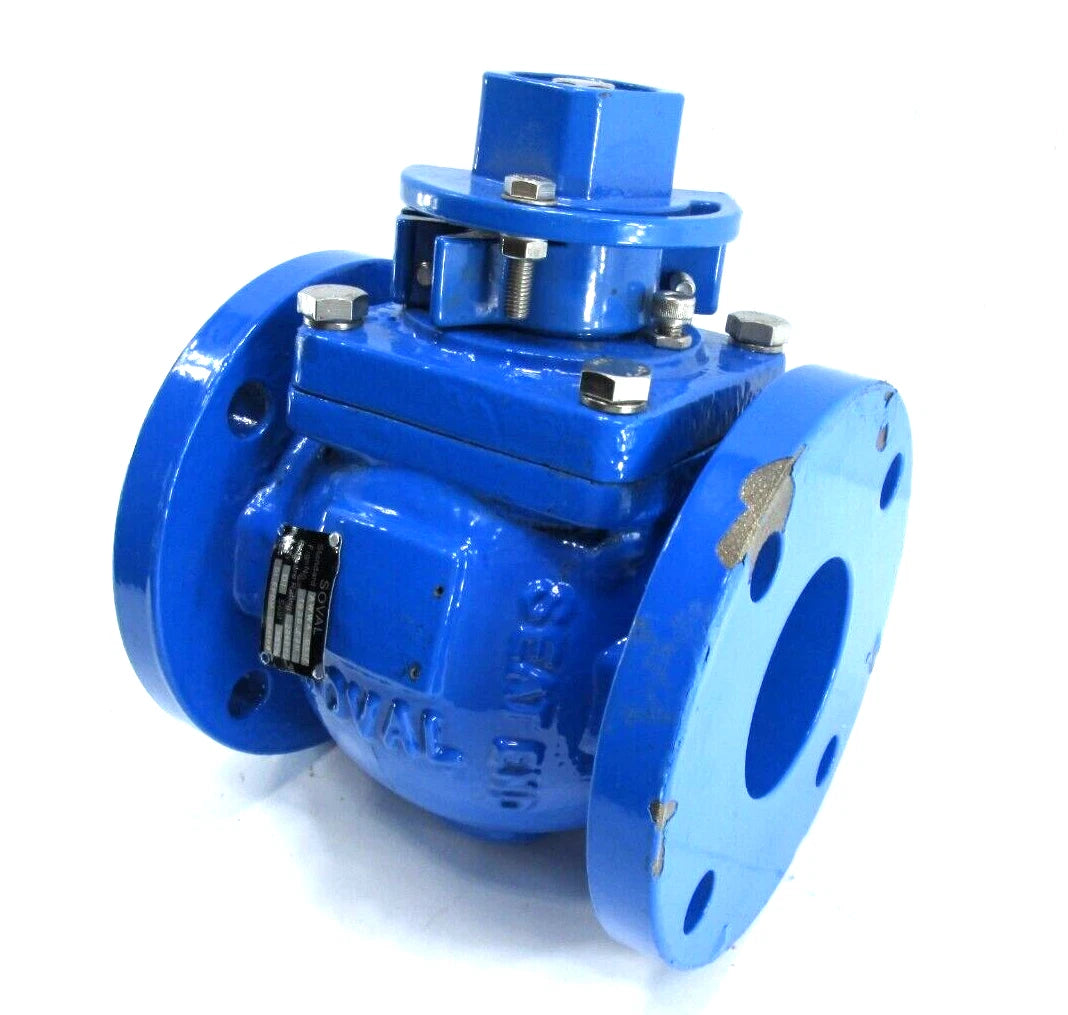

SOVAL 1030-030 Ductile Iron Flanged Plug Valve

Product Description

The SOVAL 1030-030 is a ductile iron flanged plug valve designed for reliable performance in various applications. This valve is made according to ASTM A536 grade 65-45-12 ductile iron standards and features a corrosion-resistant Fusion Bonded Epoxy coating on both interior and exterior surfaces. It is rated for a maximum pressure of 200 PSI and comes with ANSI B16.1 150# flanges. The valve utilizes a V-Type self-adjusting packing for optimal sealing and has a fully EPDM rubber encapsulated plug with a round port configuration.

• Constructed for durability with ASTM A536 grade 65-45-12 ductile iron.
• Rated up to 200 PSI with ANSI B16.1 flanges.
• Meets AWWA C517 standards for quality assurance.

Product Highlights

This valve is suitable for manual operation and incorporates a full flow round plug design for efficient fluid management.

Product Information

Standard Information

• Brand: Soval
• MPN: 1030-030

Technical Specifications

• Manufactured to: AWWA C517 Standard
• Class: 125 Flanges
• Working Pressure: 200 PSI
• Working Temperature: Fourteen degrees Fahrenheit to Two hundred forty-eight degrees Fahrenheit for EPDM coated plug
• Corrosion Protection: Liquid epoxy painted or fusion bonded epoxy powder coated internally and externally
• Shaft Sealed By: Multiple V-ring type sealing
• Bearings: Sintered SS316, oil impregnated and permanently lubricated
• Full Flow Round Plug Design: Fully rubber coated up to twelve inches; fourteen to twenty-four inches have a cylindrical rubber sealed surface
• Seat Area With Welded Overlay: Minimum ninety-five percent pure nickel
• Valve Operation: Manual
• Weight: Fifty-two point ninety-one pounds
