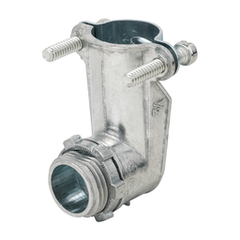

Southwire L1105 90 Degree Squeeze Box Connector

Product Description

The SOUTHWIRE L1105 is a 90-degree squeeze-type conduit box connector designed for making secure, right-angle entries into electrical enclosures and junction boxes. Constructed from zinc die-cast, this connector delivers solid mechanical strength and reliable conductivity in a compact form factor. It is sized for 1-1/2 inch conduit and uses a squeeze-action design that allows fast, tool-assisted installation without threading. Electricians working on commercial and residential wiring systems choose this connector when a 90-degree entry angle is required to keep conduit runs clean and code-compliant. The zinc die-cast body resists deformation under load and holds a stable connection at the box knockout.

This connector is suited for use in standard electrical box and enclosure installations where a right-angle conduit entry is needed. Common applications include panel boards, junction boxes, and electrical enclosures in both residential and light commercial environments. It is typically installed by licensed electricians during rough-in or service work where conduit routing demands a 90-degree transition at the box entry point.

Key Features

• 90-degree angle design allows right-angle conduit entry into electrical enclosures
• Zinc die-cast construction provides strong mechanical connection and durability
• Squeeze-type installation mechanism speeds up box connector termination
• 1-1/2 inch conduit size fits standard knockout openings
• One-year limited warranty included

Compatibility

Designed as an OEM-style replacement and standard-use connector for 1-1/2 inch conduit systems terminating at electrical enclosures and junction boxes.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit or panel before installing or servicing any conduit connector. Insert the connector into the appropriate knockout opening and tighten the squeeze mechanism securely to ensure a stable mechanical and electrical connection. Do not overtighten to the point of cracking the die-cast body.

Technical Specifications

• Material: Zinc Die-Cast
• Angle: 90 degrees
• Conduit Size: 1-1/2 inches
• Length: 9.0 inches
• Height: 6.1 inches
• Width: 9.0 inches
• Weight: 5.3 pounds
• Warranty: One Year Limited
• Country of Origin: Indonesia

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: L1105
